System Diagram

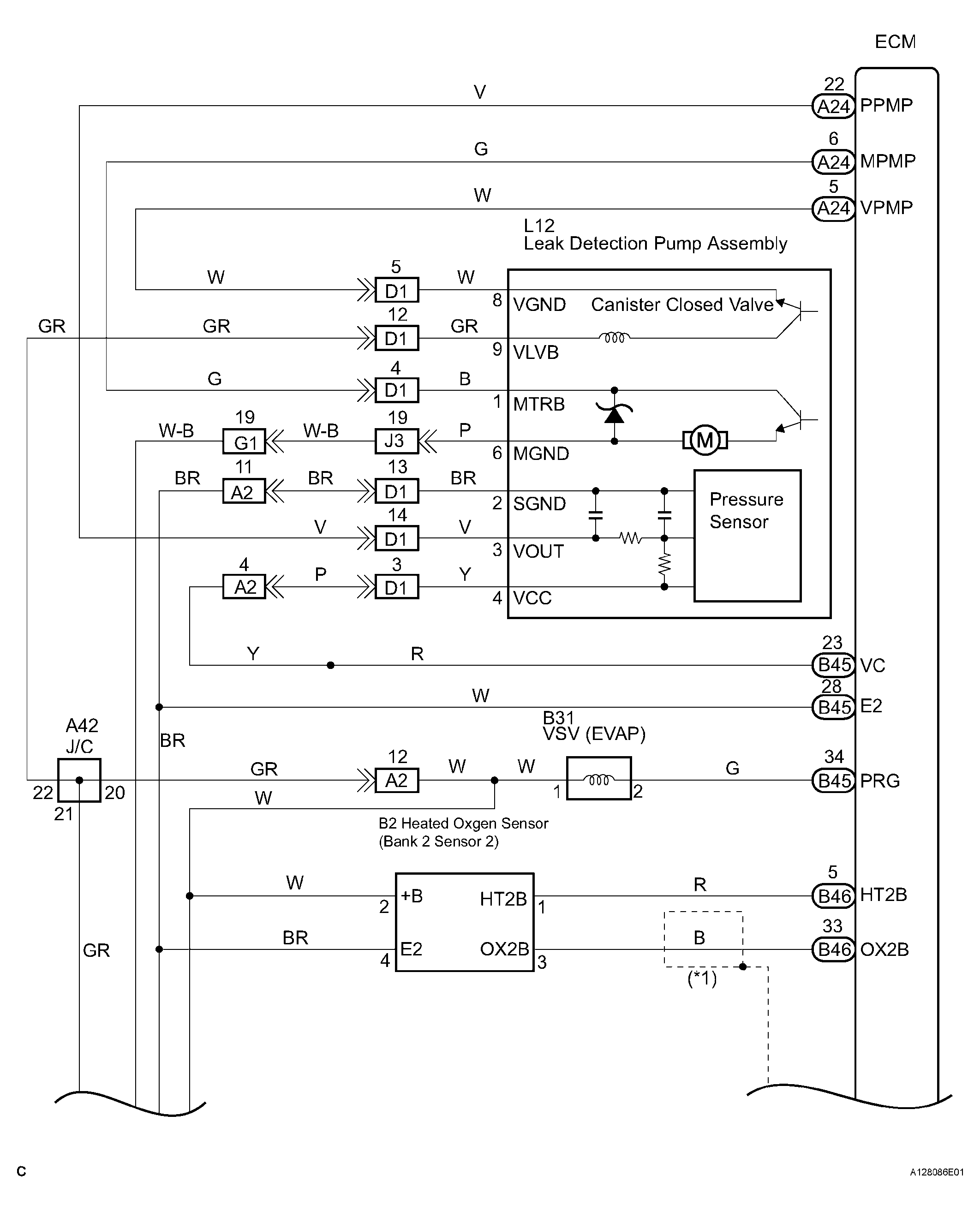

Fig 1: Emission Control System-Diagram (1 Of 2)
G04377052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

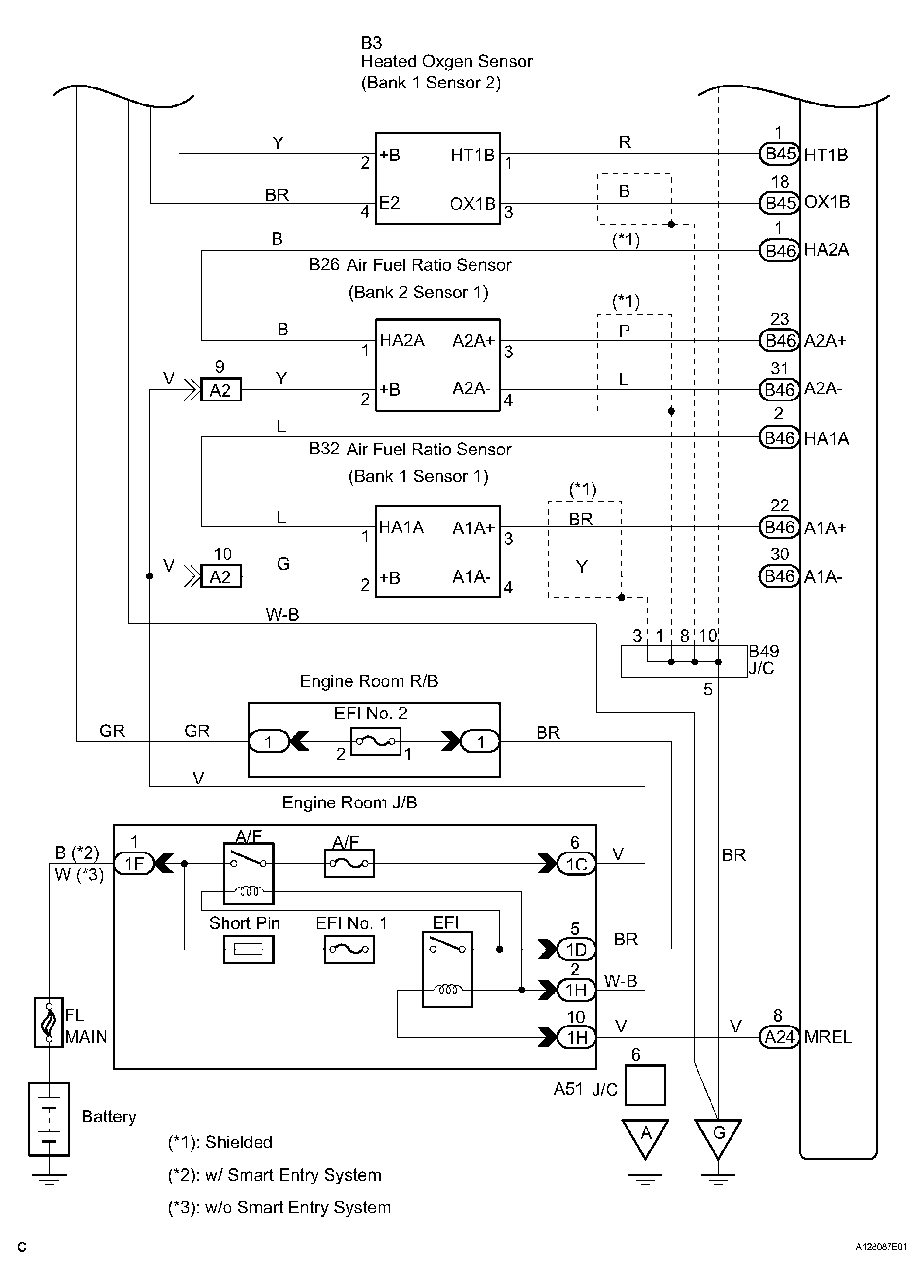

Fig 2: Emission Control System-Diagram (2 Of 2)
G04377053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
