On-Vehicle Inspection

  1. INSPECT RELAY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

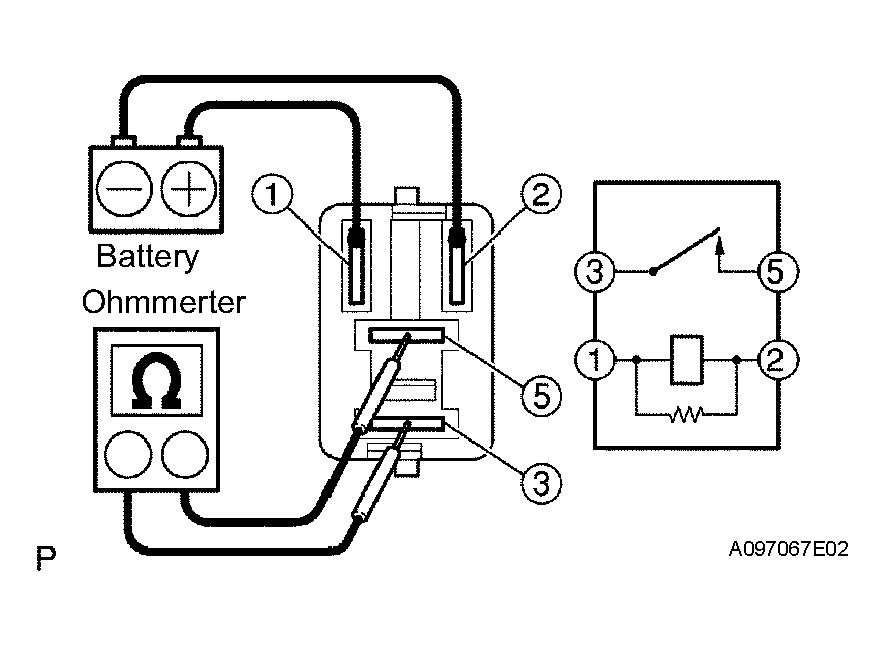

        Fig 1: Measuring Resistance Between Starter Relay Terminals
        G04377268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Resistance

        CONNECTOR TERMINALS RESISTANCE SPECIFICATION

        Tester Connection Specified Condition
        3 - 5 10 kΩ or higher
        3 - 5 Below 1 Ω (when battery voltage is applied between terminals 1 and 2)

        If the result is not as specified, replace the relay.
