Engine Switch Indicator Circuit: Wiring Diagram

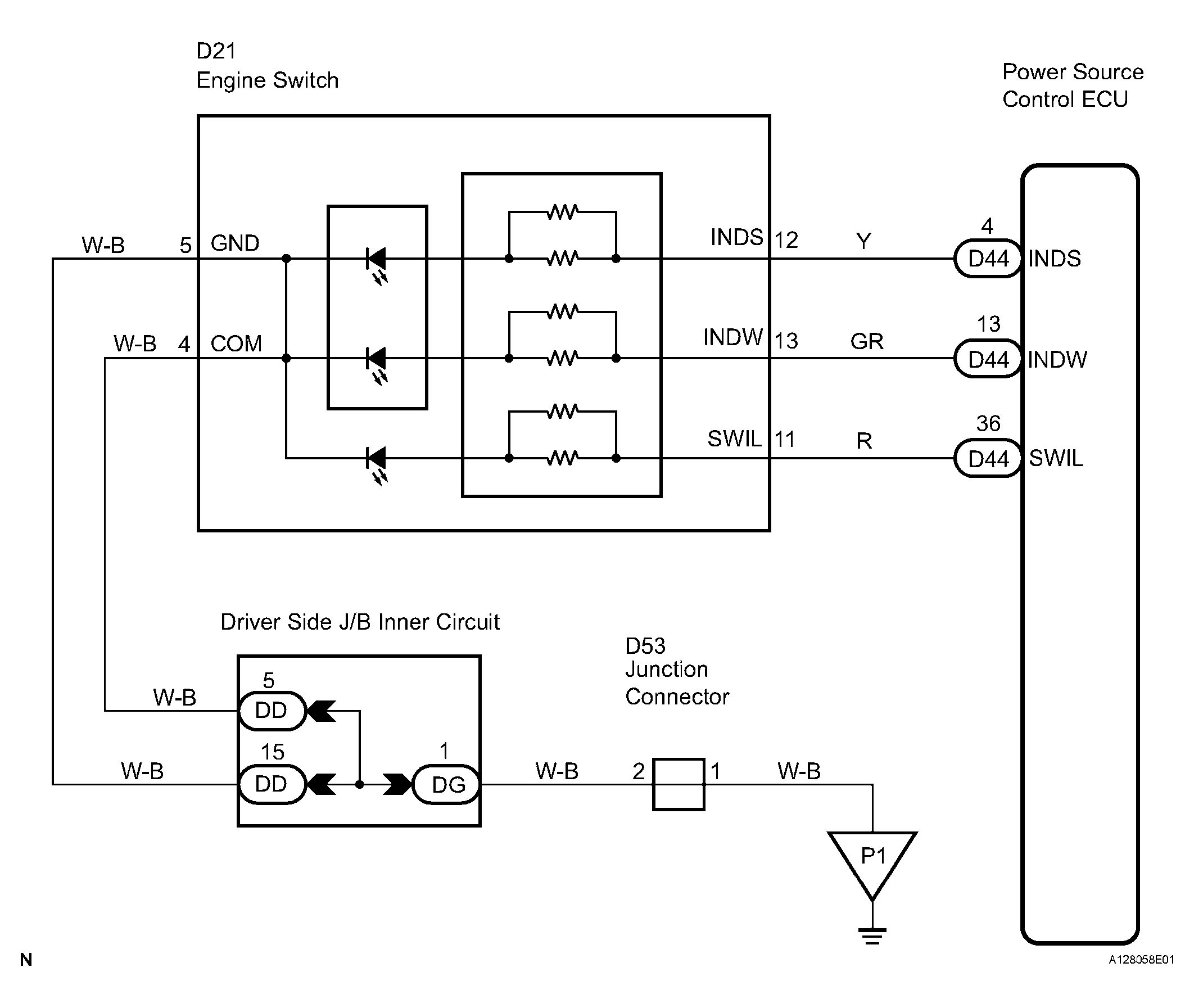

Fig 1: Engine Switch Indicator Circuit - Wiring Diagram

G04377228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
