Power Outlet Socket: Removal

REMOVE CONSOLE BOX ASSEMBLY (See step 35 under REMOVAL )
REMOVE POWER OUTLET SOCKET ASSEMBLY
1. Front position:
  1. Disengage the claw and remove the power outlet socket assembly as shown in Fig 1.

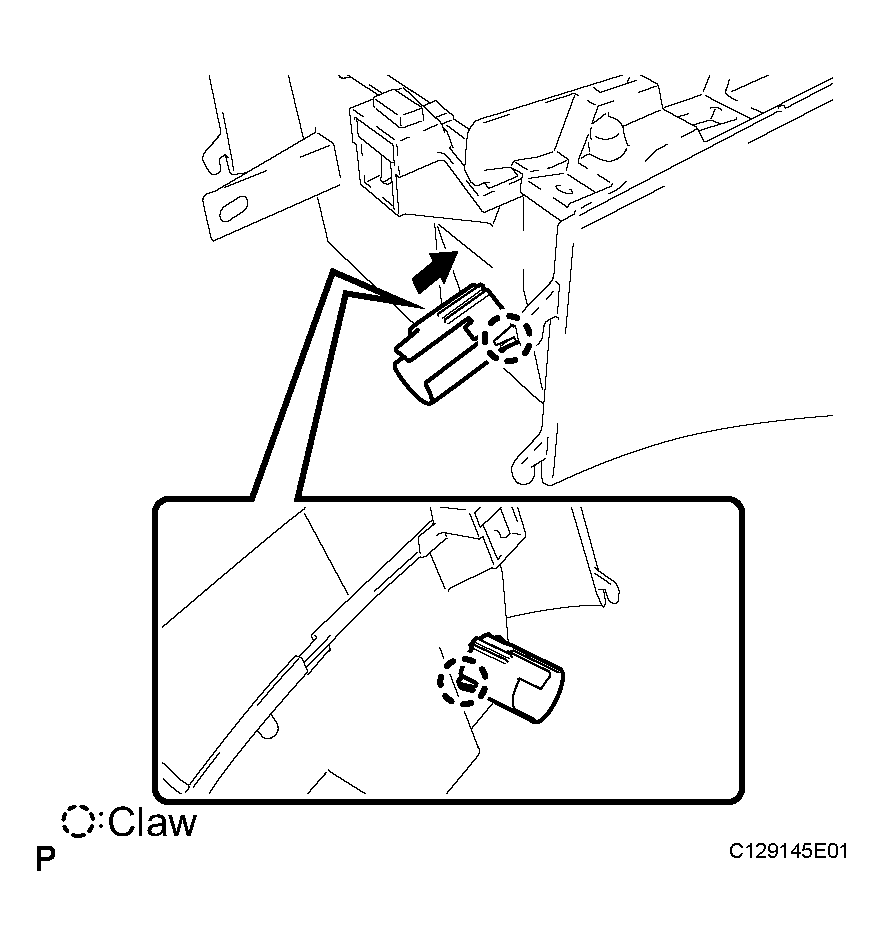

    Fig 1: Removing Power Outlet Socket Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disengage the 2 claws and remove the power outlet socket cover as shown in Fig 2.

    Fig 2: Removing Power Outlet Socket Cover
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Rear position:
  1. Disengage the claw in the direction indicated by the arrow.

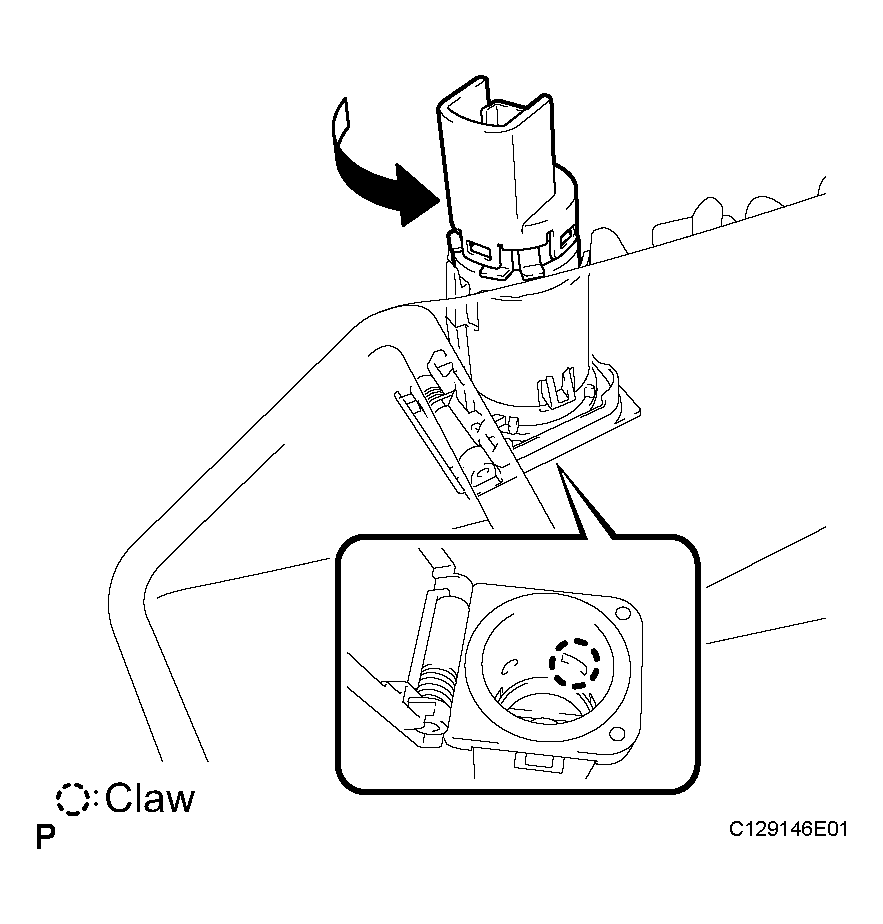

    Fig 3: Disengaging Claw
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Release the stopper.
  3. Turn in the direction indicated by the arrow and push the power outlet socket assembly.

    Fig 4: Pushing Power Outlet Socket Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Align the protrusion on the power outlet socket assembly and the recess on the power point socket cover.

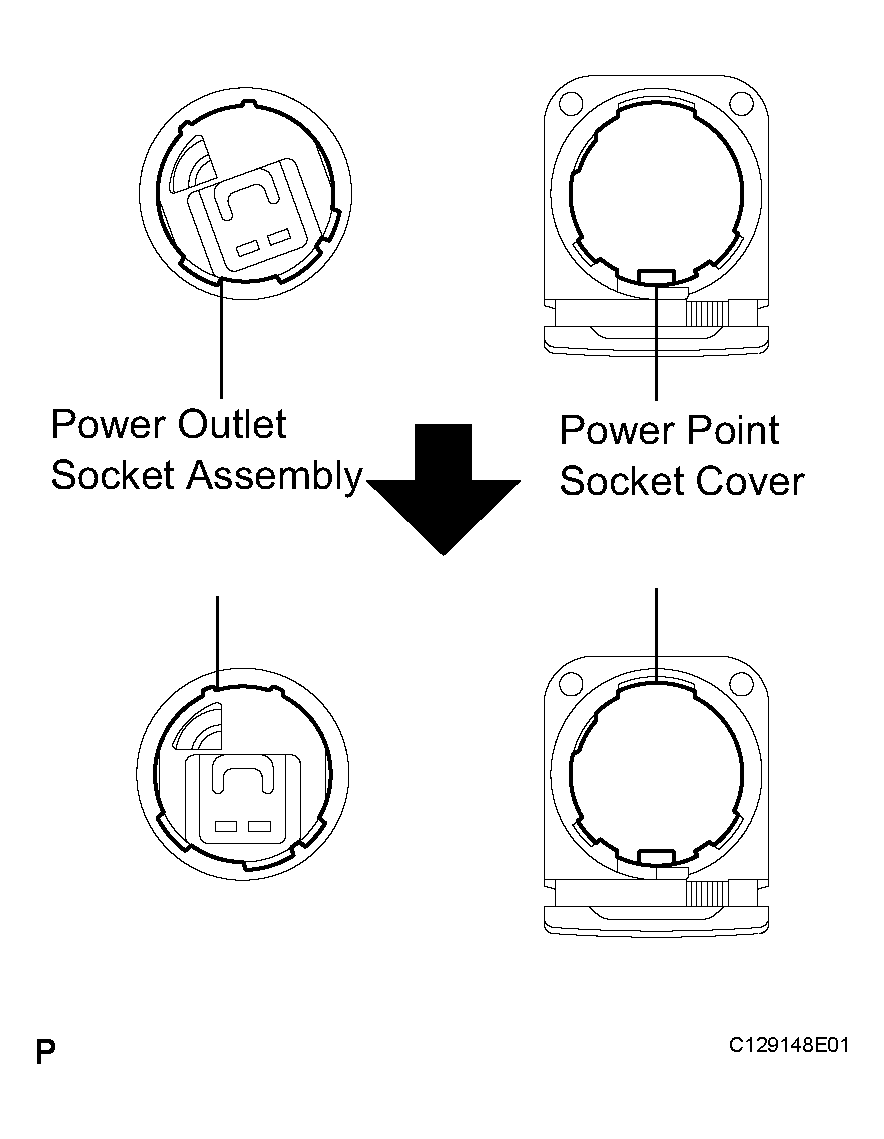

    Fig 5: Aligning Protrusion On Power Outlet Socket Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Release the stopper.

    Fig 6: Removing Power Outlet Socket Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Remove the power outlet socket assembly as shown in Fig 6.
