: Ground Points

Code Refer to Ground Points Location
D1 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Left Kick Panel
D2 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Instrument Panel Brace LH

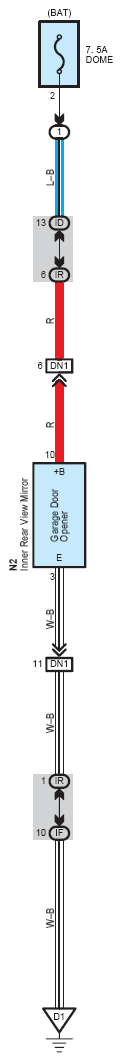

Fig 1: Garage Door Opener System Wiring Diagram
G08779137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Code Refer to Ground Points Location
D1 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Left Kick Panel

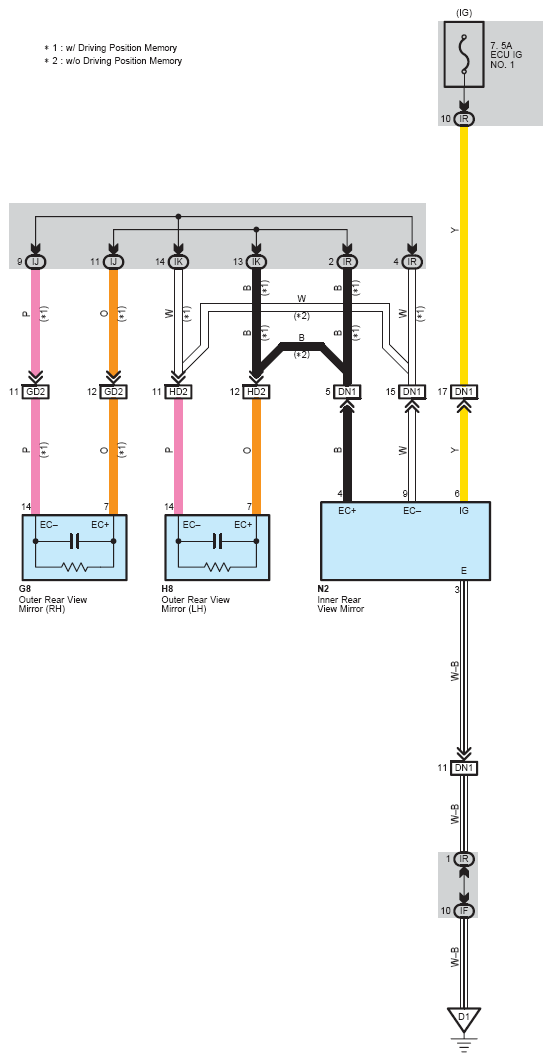

Fig 1: Automatic Glare-Resistant EC Mirror And Compass System Wiring Diagram
G08779138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Code Refer to Ground Points Location
D1 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Left Kick Panel
