Seat Heater without Climate Control Seat: Notes

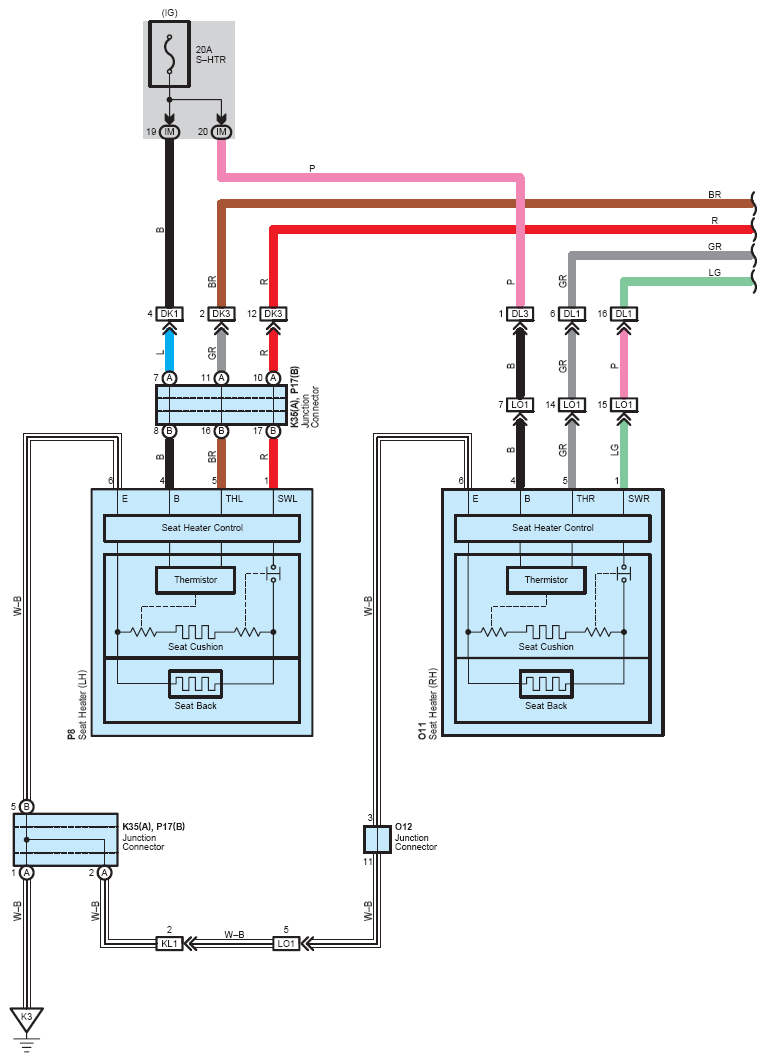

Fig 1: Seat Heater (Without Climate Control Seat) System Wiring Diagram (1 Of 2)
G08779134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

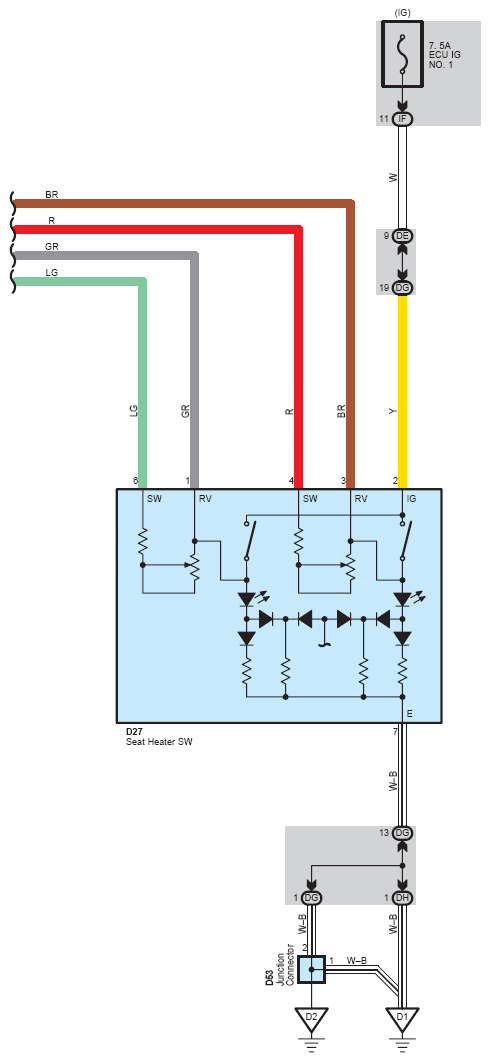

Fig 2: Seat Heater (Without Climate Control Seat) System Wiring Diagram (2 Of 2)
G08779135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
