Power Seat for Driver's Seat with Memory: Notes

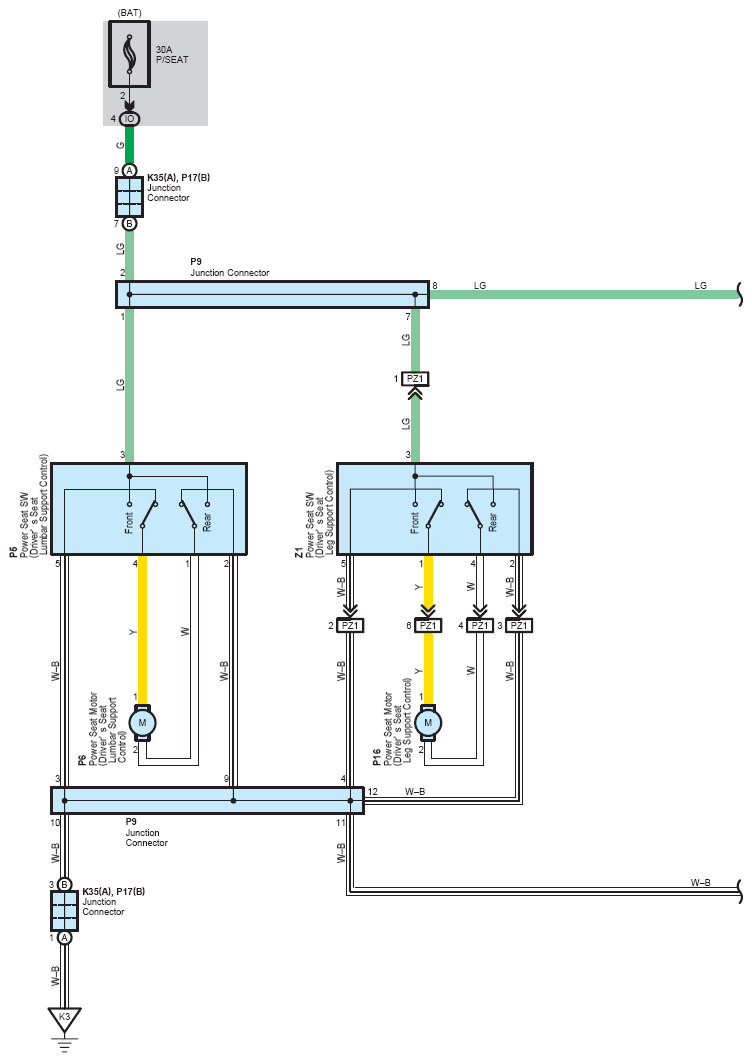

Fig 1: Power Seat (For Driver's Seat With Memory) System Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

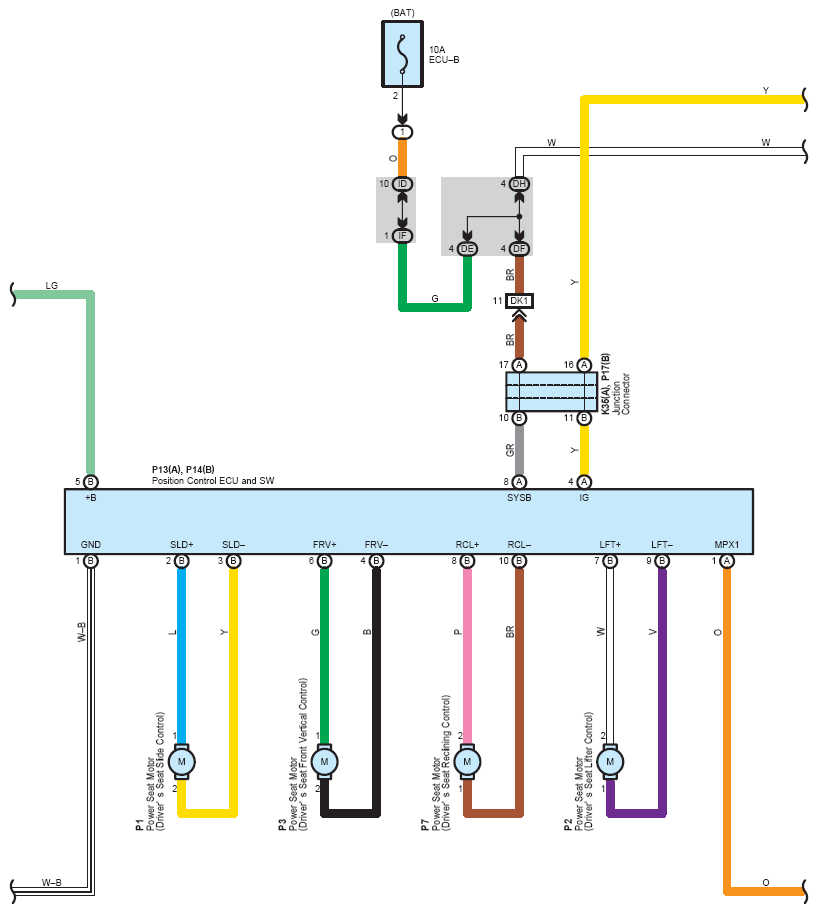

Fig 2: Power Seat (For Driver's Seat With Memory) System Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

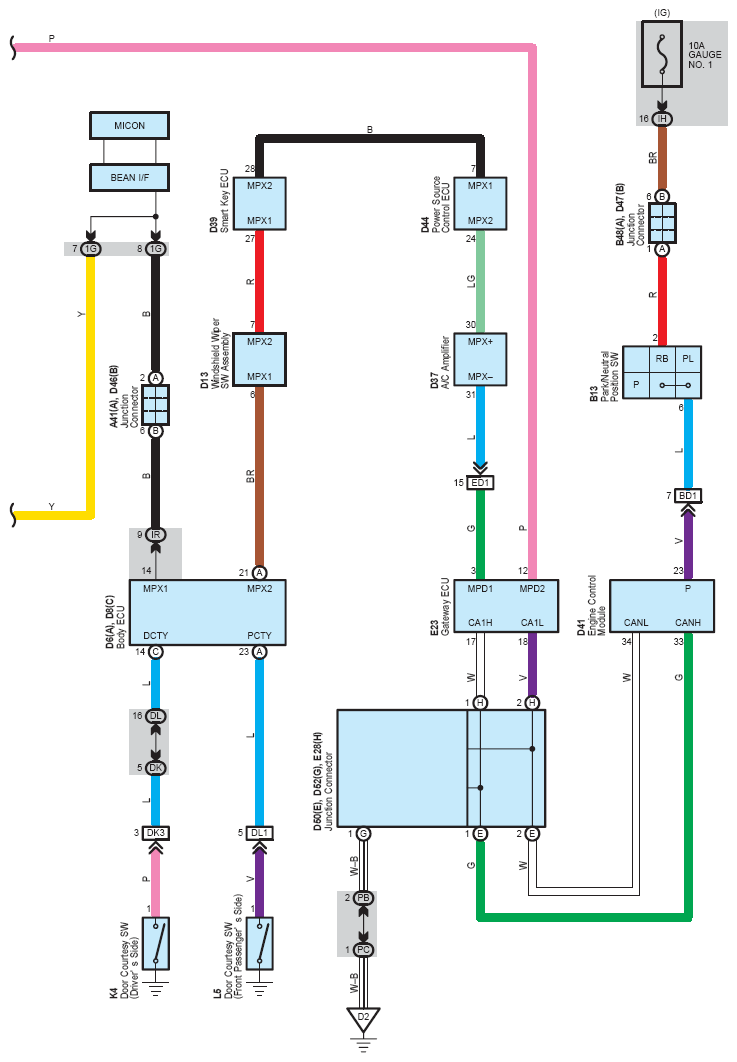

Fig 3: Power Seat (For Driver's Seat With Memory) System Wiring Diagram (3 Of 4)

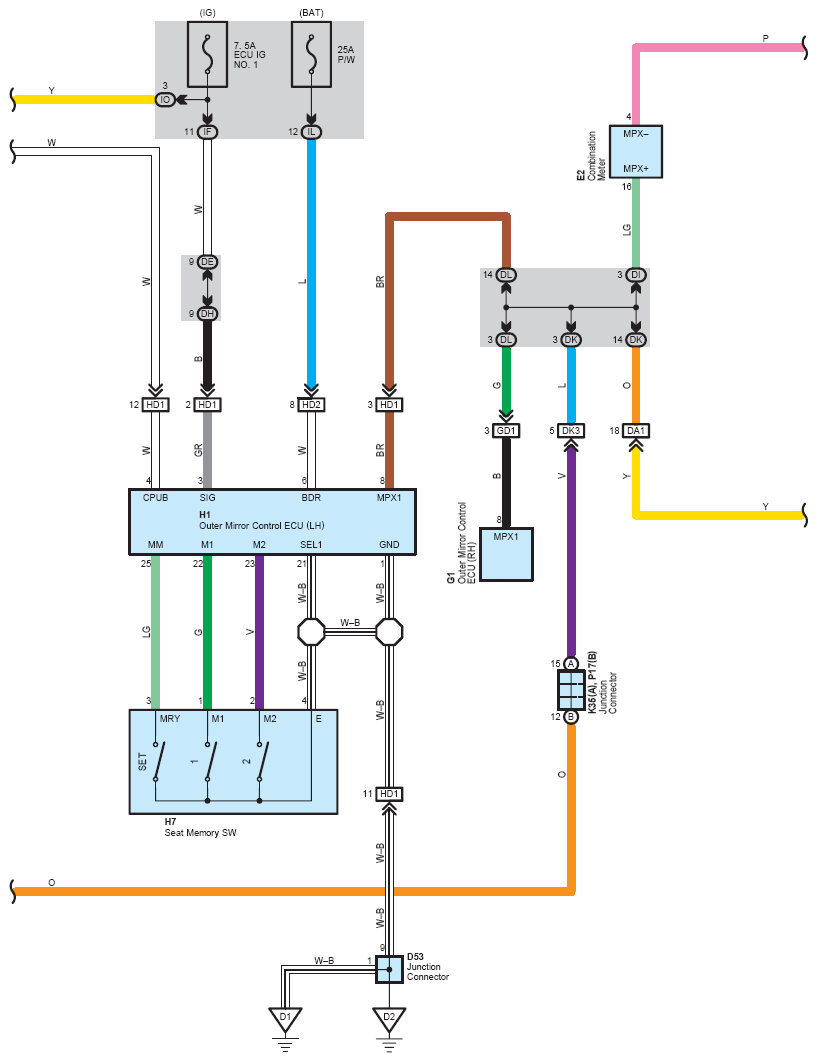

Fig 4: Power Seat (For Driver's Seat With Memory) System Wiring Diagram (4 Of 4)
