: Ground Points

Code Refer to Ground Points Location
D1 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Left Kick Panel
D2 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Instrument Panel Brace LH
E1 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Under the Combination Meter

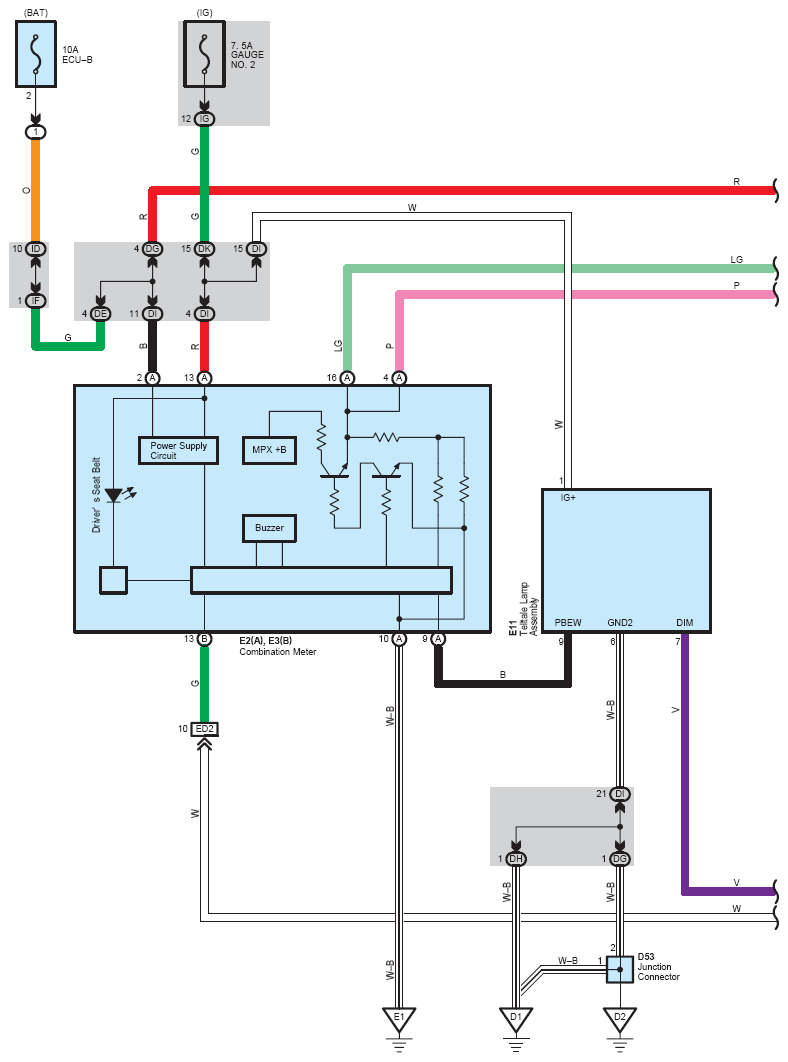

Fig 1: Seat Belt Warning System Wiring Diagram (1 Of 4)
G08779027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

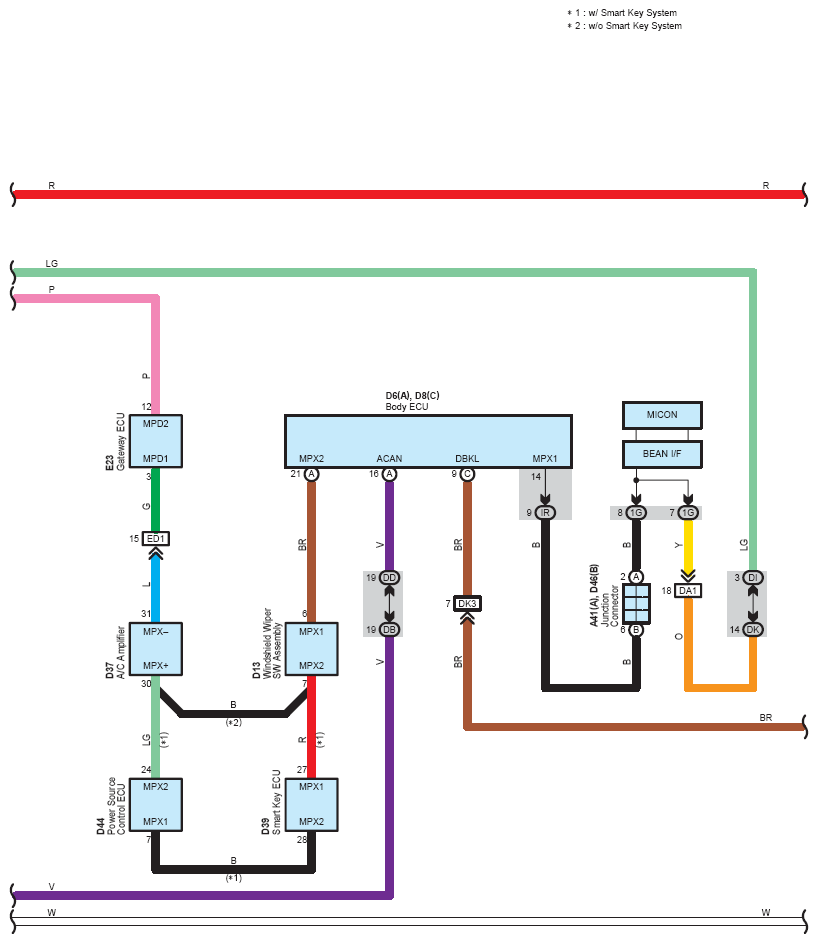

Fig 2: Seat Belt Warning System Wiring Diagram (2 Of 4)
G08779028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

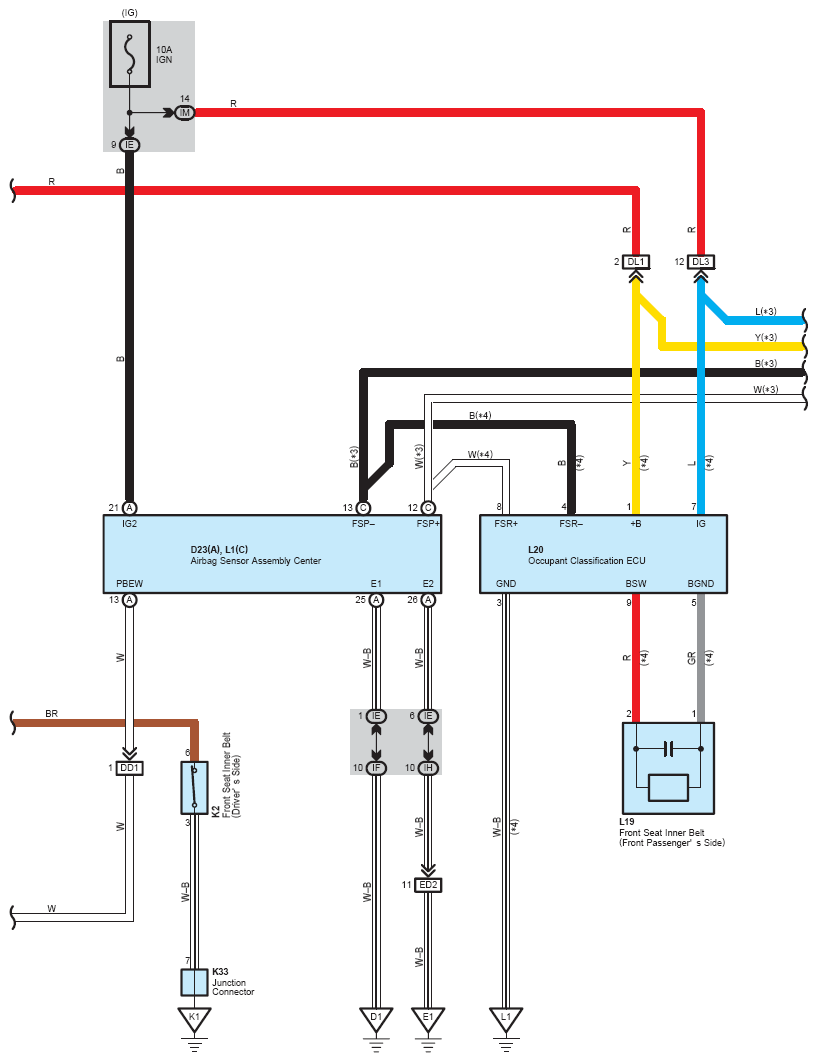

Fig 3: Seat Belt Warning System Wiring Diagram (3 Of 4)
G08779029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

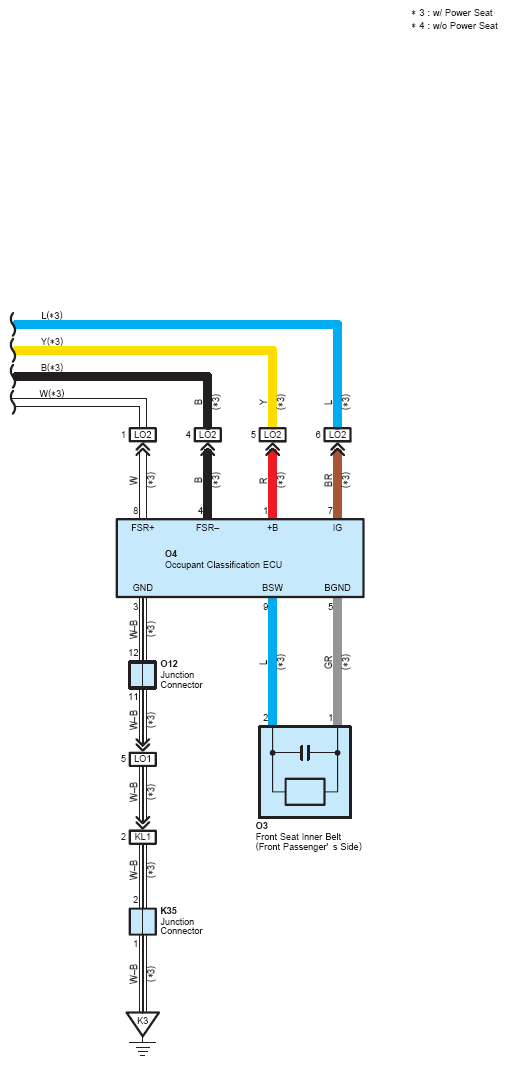

Fig 4: Seat Belt Warning System Wiring Diagram (4 Of 4)
G08779030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Code Refer to Ground Points Location
D1 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Left Kick Panel
D2 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Instrument Panel Brace LH
E1 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Under the Combination Meter
K1 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS Left Rear Quarter Panel
K3 : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS OF LOCATIONS Left Side of the Instrument Panel
L1 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS Right Rear Quarter Panel
