Climate Control Seat and Seat Heater: Notes

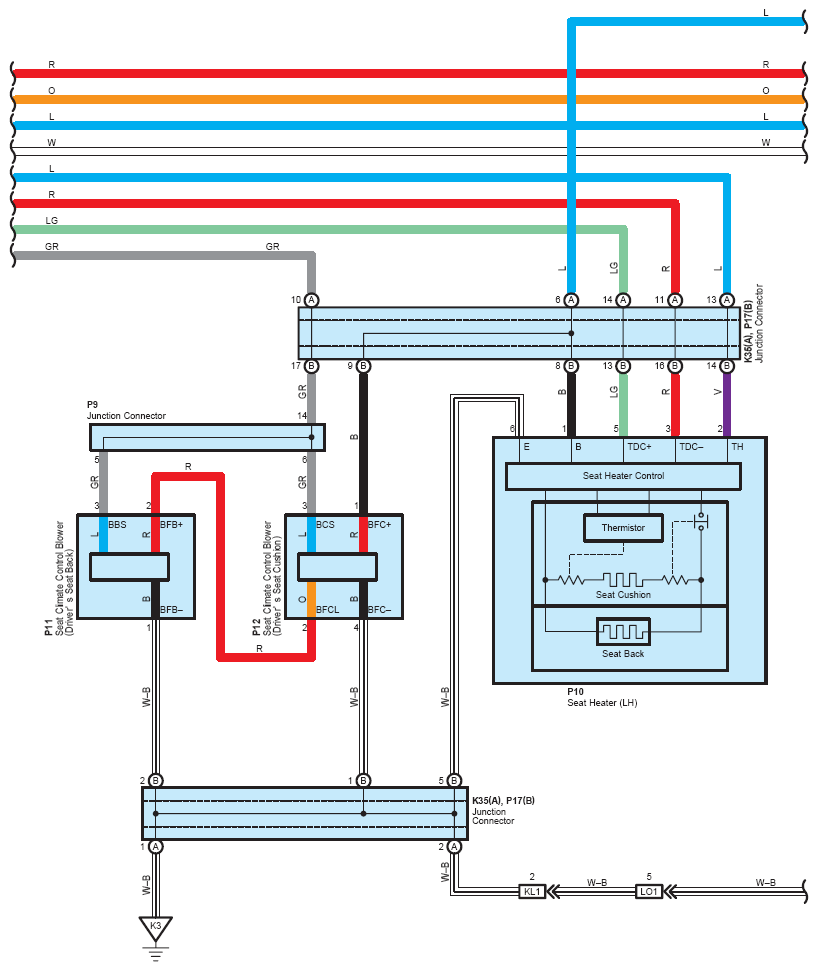

Fig 1: Climate Control Seat And Seat Heater System Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

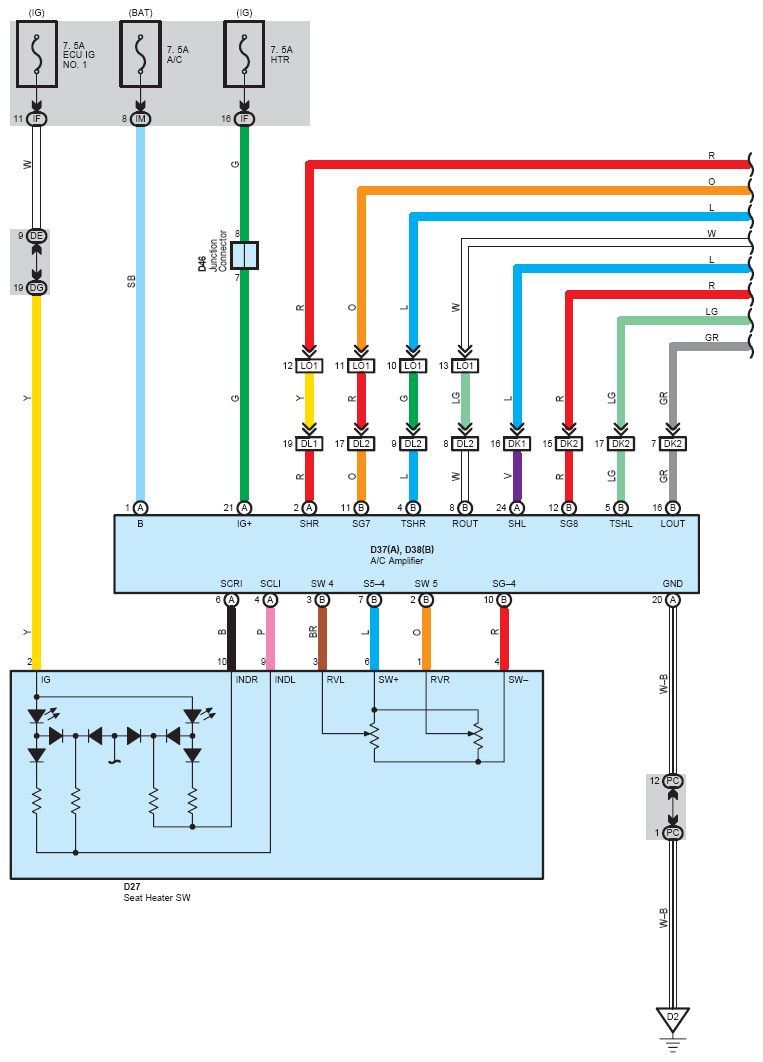

Fig 2: Climate Control Seat And Seat Heater System Wiring Diagram (2 Of 3)

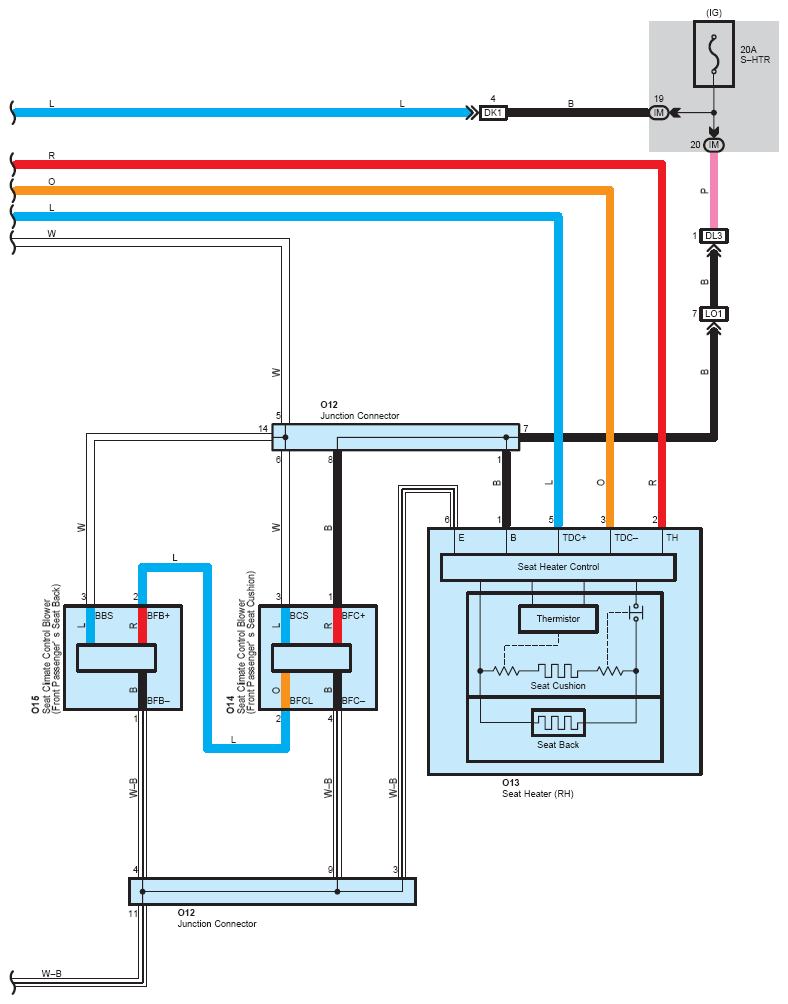

Fig 3: Climate Control Seat And Seat Heater System Wiring Diagram (3 Of 3)
