Vehicle Stability Control System: Calibration

  1. DESCRIPTION
    • After replacing the VSC relevant components or performing "Front wheel alignment adjustment", clear and read the sensor calibration data.
    • Follow the chart to perform calibration.
      CALIBRATION PERFORMANCE REFERENCE

      Replacing Parts / Operation Necessary Operation
      ABS & TRACTION Actuator Assembly (Skid Control ECU) Yaw rate sensor and acceleration sensor zero point calibration.
      Yaw Rate Sensor (Acceleration Sensor)
      1. Clearing zero point calibration data.
      2. Yaw rate and acceleration sensor zero point calibration.
      Front Wheel Alignment Adjustment
      1. Clearing zero point calibration data.
      2. Yaw rate and acceleration sensor zero point calibration.
  2. CLEAR ZERO POINT CALIBRATION (WHEN USING INTELLIGENT TESTER:)

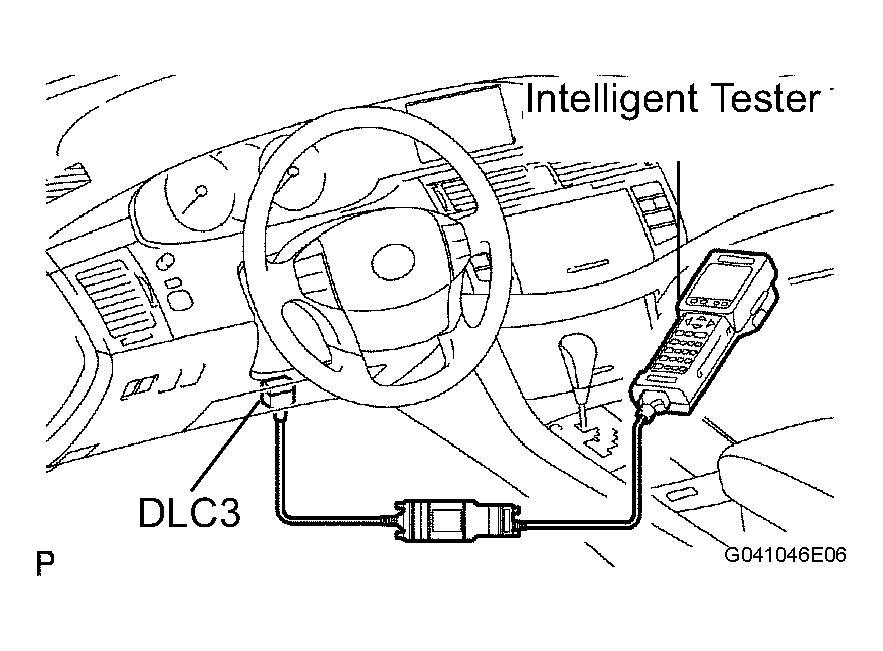

    Fig 1: Connecting Intelligent Tester To DLC3
    G04381050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the intelligent tester to the DLC3.
    2. Turn the ignition switch on (IG).
    3. Operate the intelligent tester to erase the codes (select "RESET MEMORY").

      HINT:

      Refer to the intelligent tester operator's manual for further details.

    4. Using the intelligent tester, perform zero point calibration of the yaw rate and acceleration sensor.
  3. PERFORM ZERO POINT CALIBRATION OF YAW RATE SENSOR AND ACCELERATION SENSOR (WHEN USING INTELLIGENT TESTER:)
    NOTE:
    • While obtaining the zero point, do not vibrate the vehicle by tilting, moving or shaking it and keep it in a stationary condition. (Do not start the engine.)
    • Be sure to do this on a level surface (with an inclination of less than 1 degree).
    1. Procedures for test mode.
      1. Check that the steering wheel is in the straight ahead position and move the shift lever to the P position.
        NOTE: DTC C1210/36 and C1336/39 will be recorded if the shift lever is not in the P position (See DTC C1210/36 ZERO POINT CALIBRATION OF YAW RATE SENSOR UNDONE; DTC C1336/39 ZERO POINT CALIBRATION OF ACCELERATION SENSOR UNDONE ).
      2. Connect the intelligent tester to the DLC3.
      3. Turn the ignition switch on (IG).

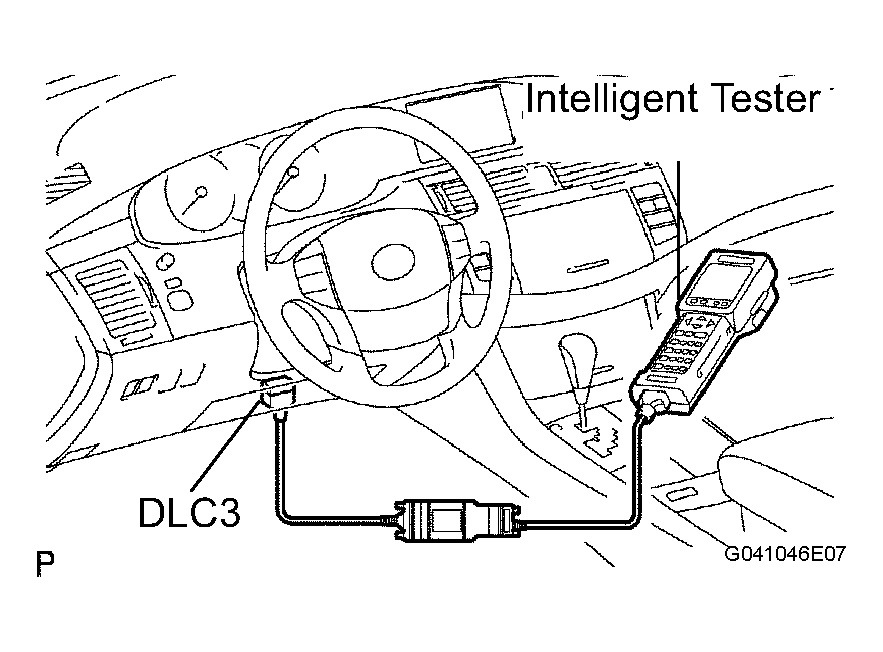

        Fig 2: Connecting Intelligent Tester To DLC3
        G04381051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Set intelligent tester to test mode (select "TEST MODE").
        Fig 3: Display Intelligent Tester - Test Mode
        G04381052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Refer to the intelligent tester operator's manual for further details.

    2. Obtain the zero point of the yaw rate sensor and acceleration sensor.
      1. Keep the vehicle in the stationary condition on a level surface for 2 seconds or more.
      2. Check that the VSC warning light is blinking in TEST MODE.
        Fig 4: Identifying VSC Warning Light Blinking Pattern
        G04381053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • If the VSC warning light does not blink, perform zero point calibration again.
        • The zero point calibration is performed only once after the system enters the test mode.
        • Calibration cannot be performed again until the stored data is cleared once.
    3. Turn the ignition switch off and disconnect the intelligent tester.
  4. CLEAR ZERO POINT CALIBRATION
    Fig 5: Identifying DLC3 Terminals
    G04381054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch on (IG).
    2. Using SST, connect and disconnect terminals TS and CG of the DLC4 times or more within 8 seconds.

      SST 09843-18040

    3. Check that the VSC warning light indicates the normal system code.
      Fig 6: Identifying VSC Warning Light Blinking Pattern
      G04381055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the SST from the terminals of the DLC3.
    5. Using a check wire, perform zero point calibration of the yaw rate and acceleration sensor.
  5. PERFORM ZERO POINT CALIBRATION OF YAW RATE SENSOR AND ACCELERATION SENSOR
    NOTE:
    • While obtaining the zero point, do not vibrate the vehicle by tilting, moving or shaking it and keep it in a stationary condition. (Do not start the engine.)
    • Be sure to do this on a level surface (with an inclination of less than 1 degree).
    1. Procedures for test mode.
      1. Turn the ignition switch off.
      2. Using SST, connect and terminals TS and CG of the DLC3.

        SST 09843-18040

      3. Check that the steering wheel is in the straight ahead position and move the shift lever to the P position.
        NOTE: DTC C1210/36 and C1336/39 will be recorded if the shift lever is not in the P position (See DTC C1210/36 ZERO POINT CALIBRATION OF YAW RATE SENSOR UNDONE; DTC C1336/39 ZERO POINT CALIBRATION OF ACCELERATION SENSOR UNDONE ).
        Fig 7: Identifying DLC3 Terminals
        G04381056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Obtain the zero point of the yaw rate sensor and acceleration sensor.
      1. Turn the ignition switch on (IG).
      2. Keep the vehicle in the stationary condition on a level surface for 2 seconds or more.
      3. Check that the VSC warning light is blinking in TEST MODE.

        HINT:

        • If the VSC warning light does not blink, perform zero point calibration again.
        • The zero point calibration is performed only once after the system enters the test mode.
        • Calibration cannot be performed again until the stored data is cleared once.
    3. Turn the ignition switch off and disconnect the SST from the DLC3.
      Fig 8: Identifying VSC Warning Light Blinking Pattern
      G04381057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
