Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Door Lock
>>
Smart Key System
>>
Touch Sensor Circuit
>>
Wiring Diagram
Touch Sensor Circuit: Wiring Diagram

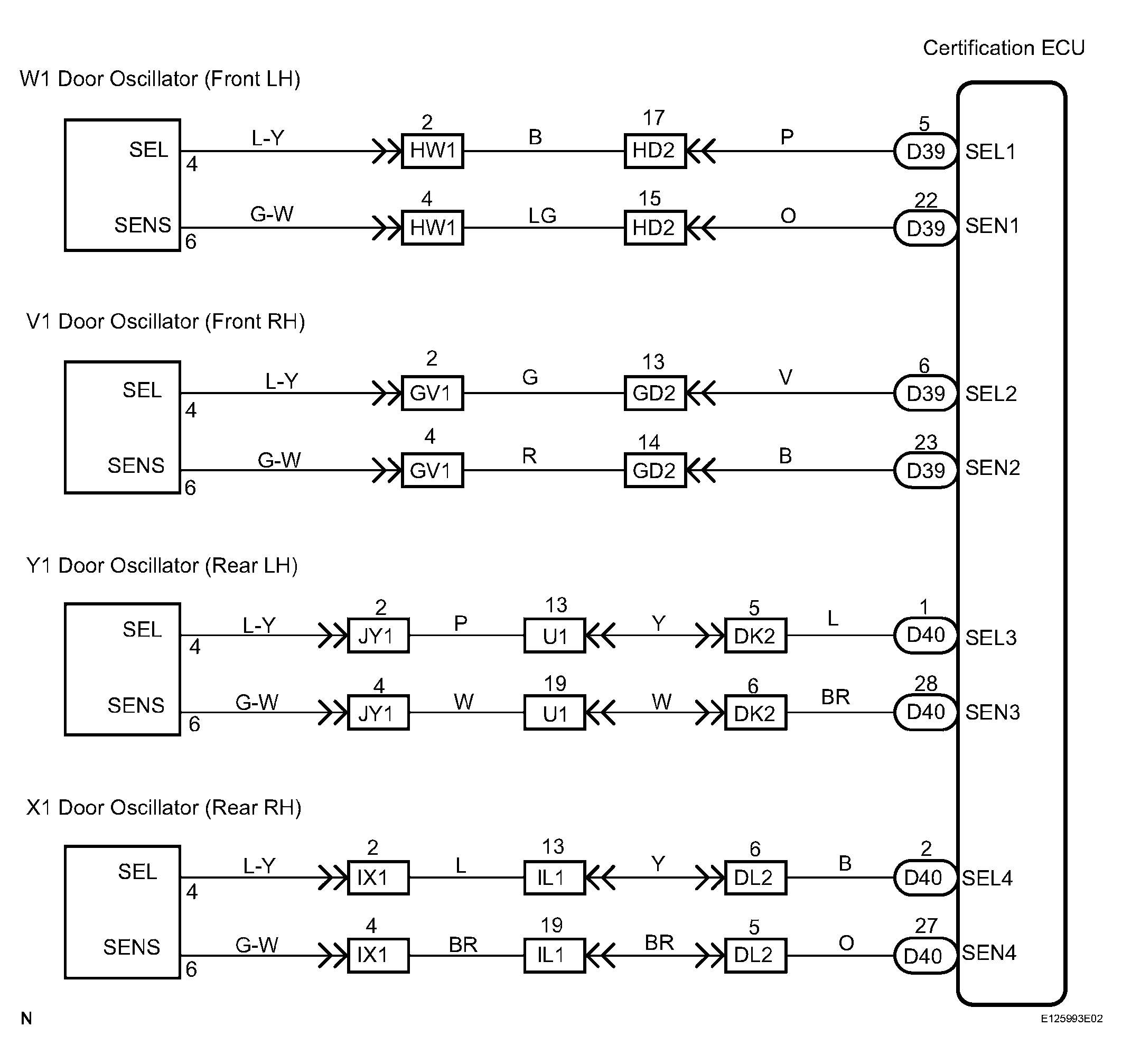

Fig 1: Touch Sensor Circuit - Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
