Inspection Procedure

  1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (CERTIFICATION ECU - OUTPUT SIGNAL)
    1. Connect the intelligent tester to the DLC3.

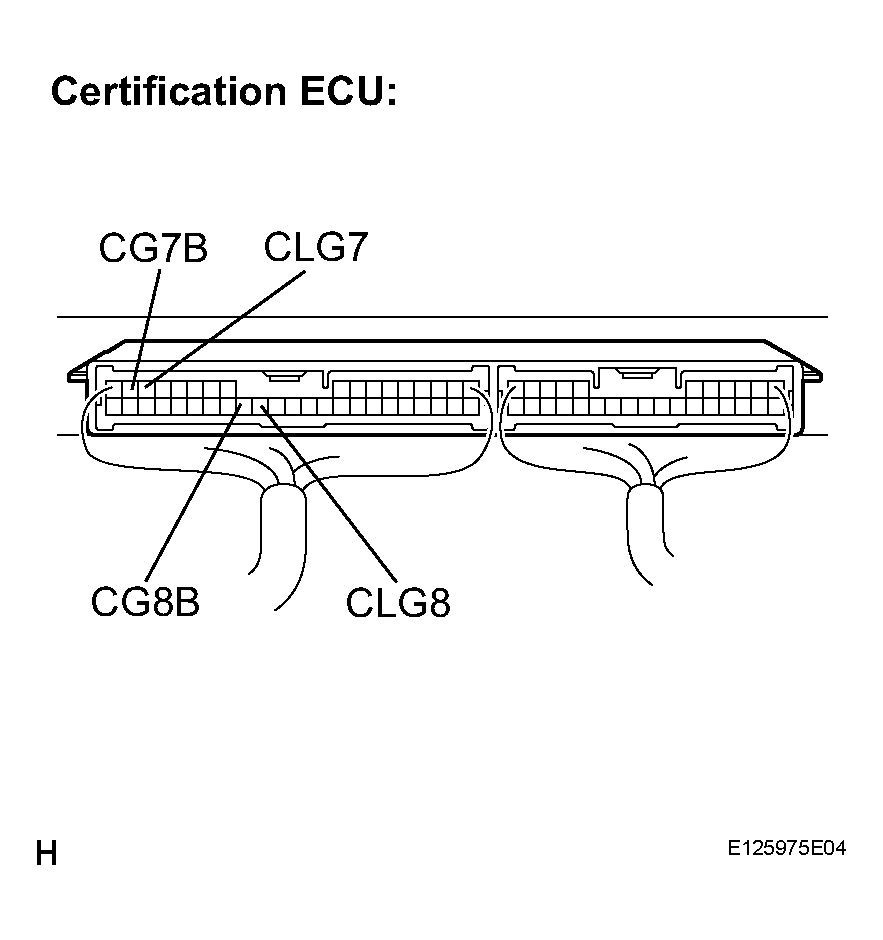

      Fig 1: Connecting Intelligent Tester To DLC3
      G04379881Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Engine switch ON (IG).
    3. Following the display on the tester, select the "ACTIVE TEST".

      Certification ECU:

      ITEM REFERENCE CHART

      Item Vehicle Condition / Test Details
      IN-BDR TRNSMTTR Luggage compartment oscillator (Inner) ON / OFF
      BDOOR TRNSMTTR Luggage compartment oscillator (Outer) ON / OFF
    4. Measure the frequency according to the value(s) in the table below.

      OK

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      CG7B (D39-16) - CLG7 (D39-15) During ACTIVE TEST Frequency is generated (higher than 0 Hz)
      CG8B (D39-32) - CLG8 (D39-31) During ACTIVE TEST Frequency is generated (higher than 0 Hz)

    NG: REPLACE CERTIFICATION ECU

    OK: GO TO NEXT STEP

  2. CHECK WIRE HARNESS (CERTIFICATION ECU - LUGGAGE COMPARTMENT OSCILLATOR)
    1. Disconnect the D39 ECU connector.

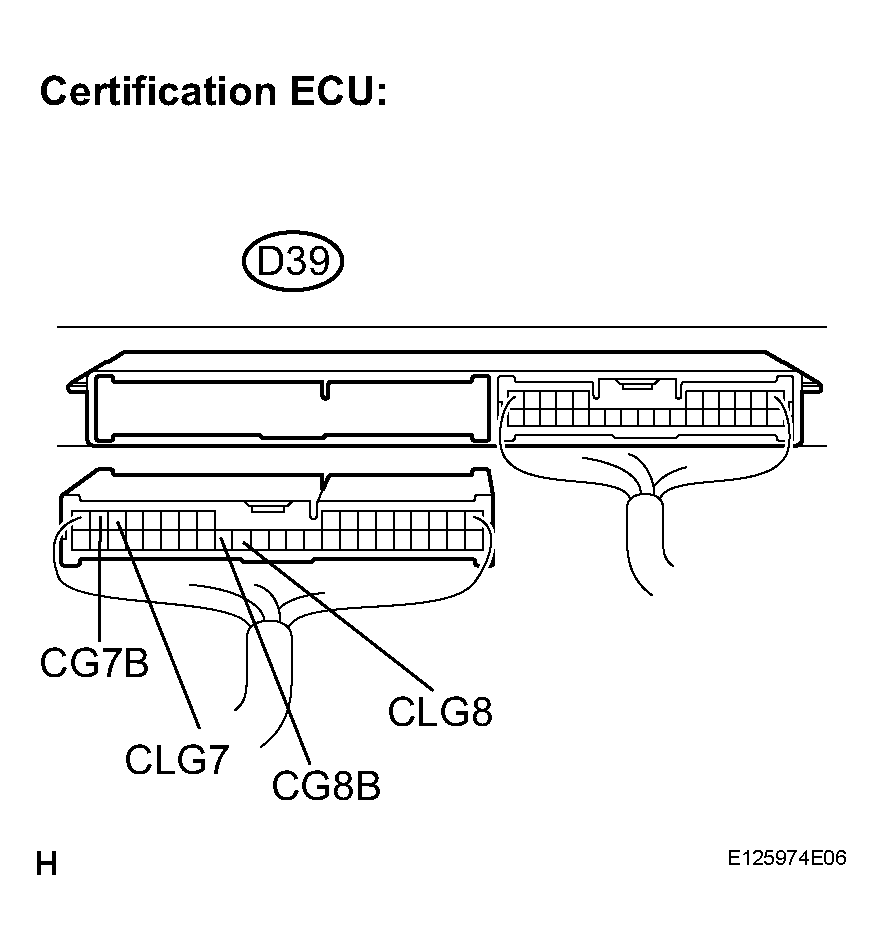

      Fig 2: Disconnecting D39 ECU Connector
      G04379882Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Disconnect the oscillator connectors.

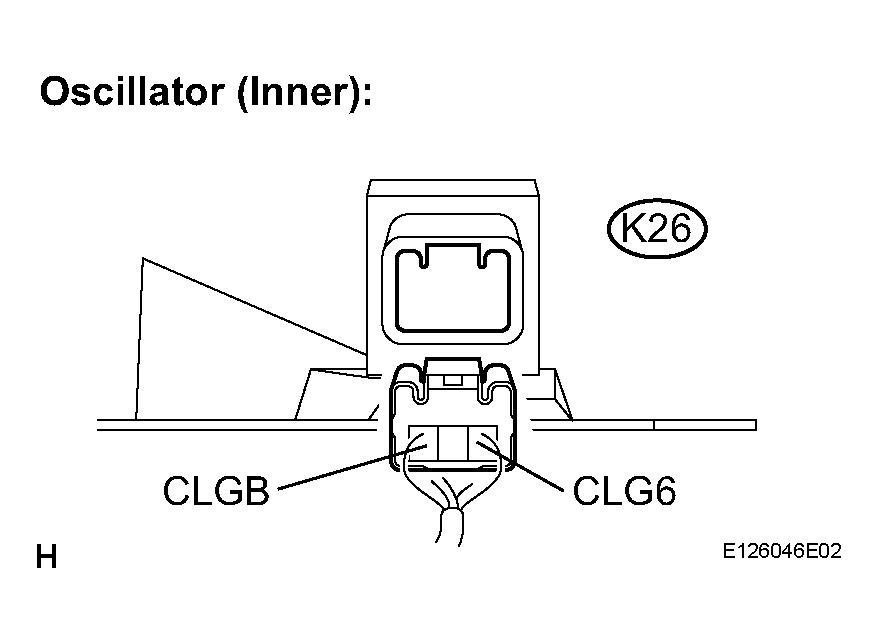

      Fig 3: Disconnecting Oscillator Connectors
      G04379883Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    3. Measure the resistance between the oscillator and the certification ECU to check for an open circuit in the wire harness.

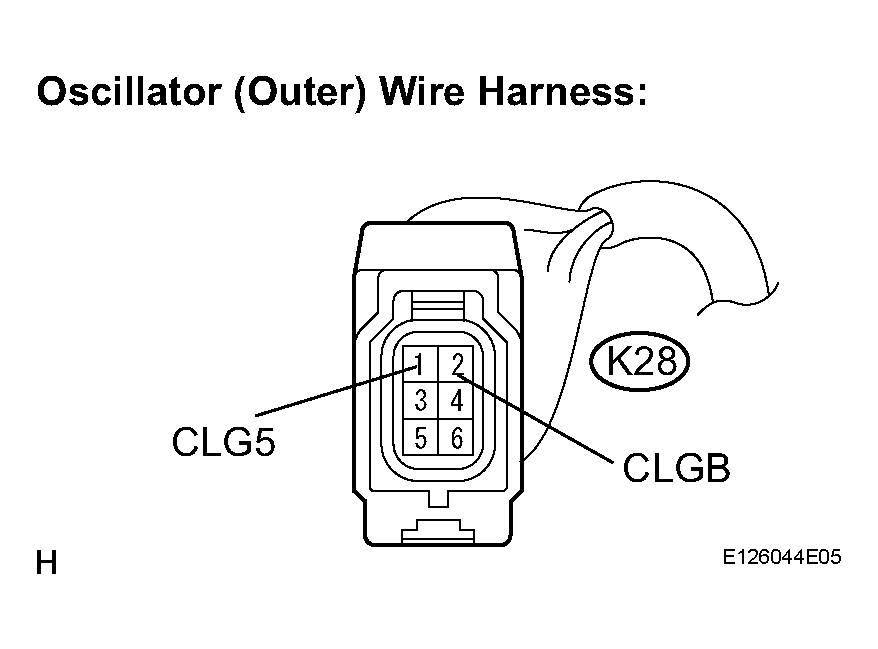

      Fig 4: Identifying Oscillator Connector Terminals
      G04379884Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

      Resistance:

      Below 1

    4. Measure the resistance between the oscillator and the certification ECU to check for an short circuit in the wire harness.

      Resistance:

      10 k or higher

      HINT:

      Refer to the WIRING DIAGRAM  for connection of each terminal.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
