Inspection Procedure

  1. INSPECT LUGGAGE COMPARTMENT OPEN SWITCH
    1. Disconnect the switch connector.
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      K21-1 - K21-2 Luggage compartment open switch not pushed --> Pushed 10 k or higher --> Below 1

    NG: REPLACE LUGGAGE COMPARTMENT OPEN SWITCH

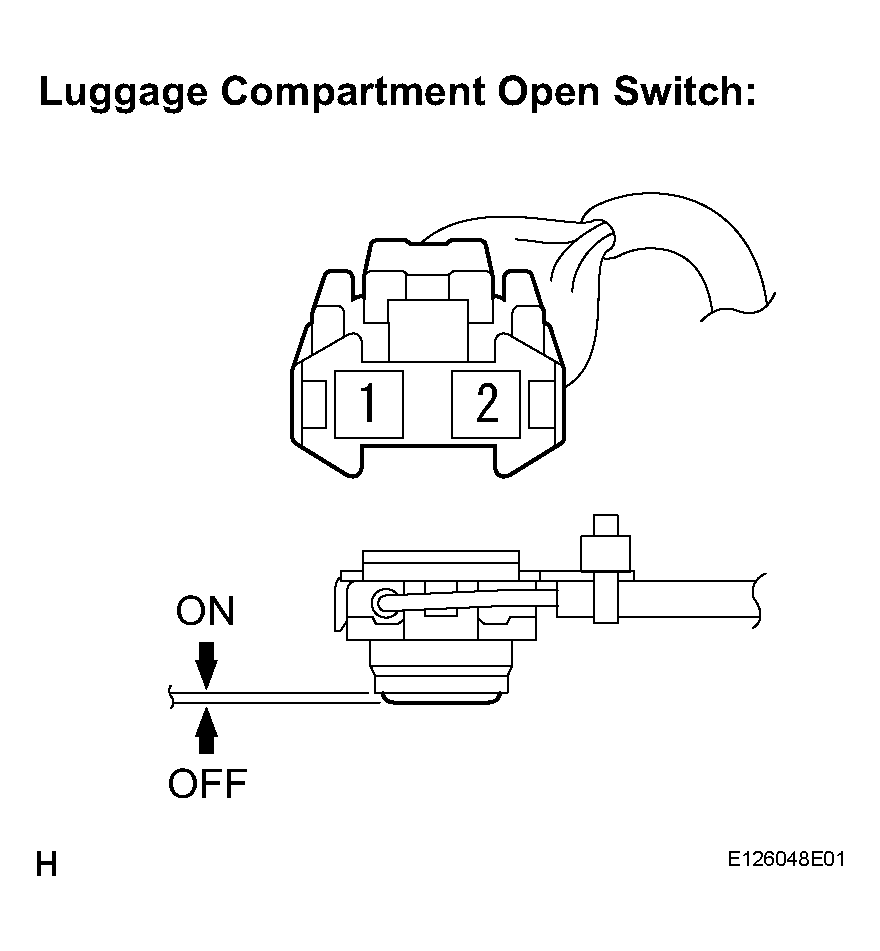

    Fig 1: Disconnecting Switch Connector
    G04379891Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    OK: GO TO NEXT STEP

  2. CHECK WIRE HARNESS (CERTIFICATION ECU - LUGGAGE COMPARTMENT OPEN SWITCH)
    1. Reconnect the switch connector.
    2. Disconnect the D39 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      TSW5 (D39-7) - Body ground Luggage compartment open switch not pushed --> Pushed 10 k or higher --> Below 1

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

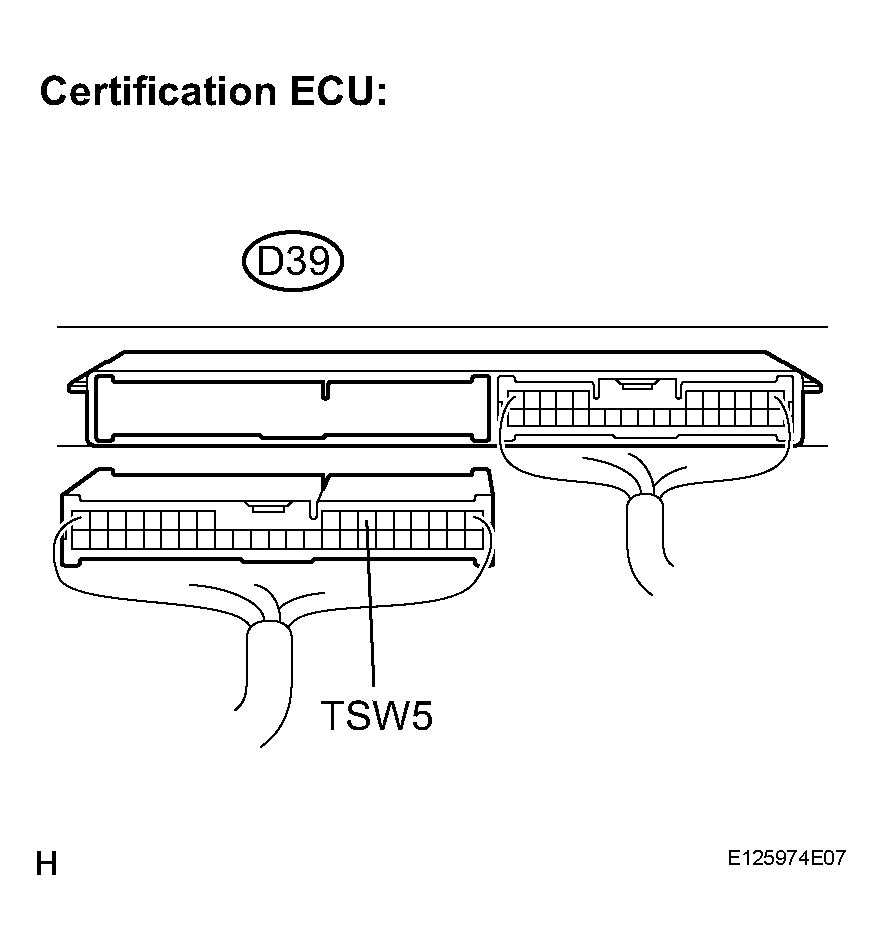

    Fig 2: Disconnecting D39 ECU Connector
    G04379892Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
