Certification ECU Power Source Circuit: Wiring Diagram

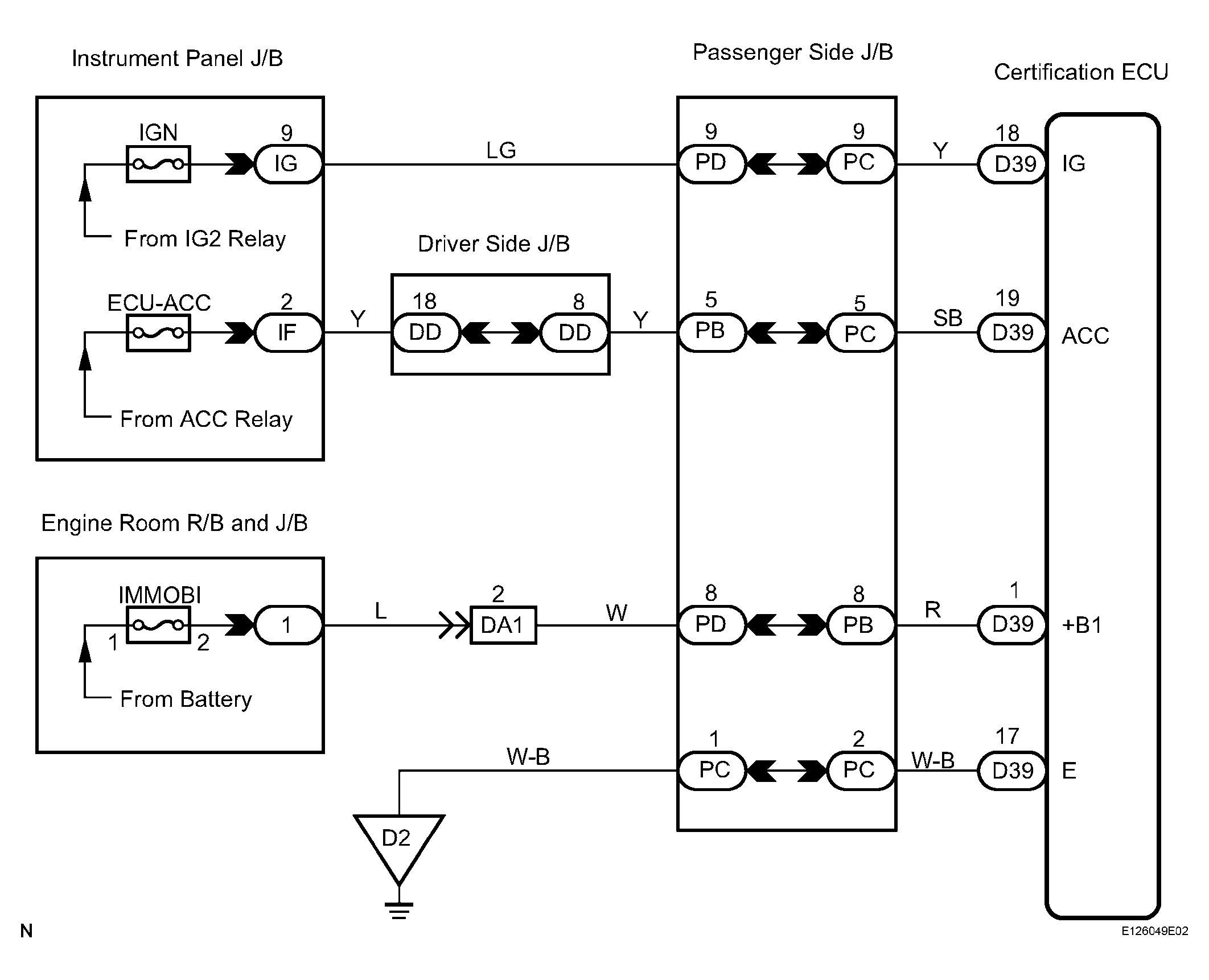

Fig 1: Certification ECU Power Source Circuit - Wiring Diagram

G04379895

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
