Inspection Procedure

1. Disconnect the D39 certification ECU connector.

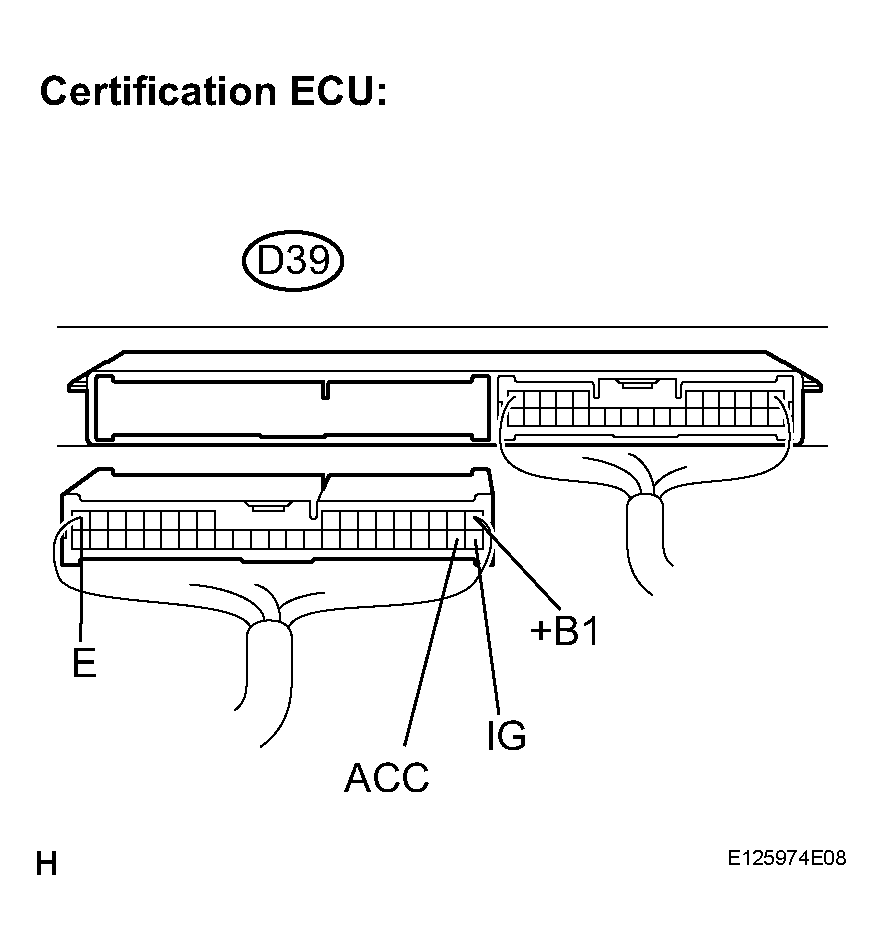

   Fig 1: Disconnecting D39 Certification ECU Connector

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Measure the voltage according to the value(s) in the table below.

   Voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D39-1 (+B1) - Body ground	Always	10 to 14 V
   D39-18 (IG) - Body ground	Engine switch OFF --> ON (IG)	Below 1 V --> 10 to 14 V
   D39-19 (ACC) - Body ground	Engine switch OFF --> ON (ACC)	Below 1 V --> 10 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D39-17 (E) - Body ground	Always	Below 1

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
