Inspection Procedure

1. Remove the outside handle.

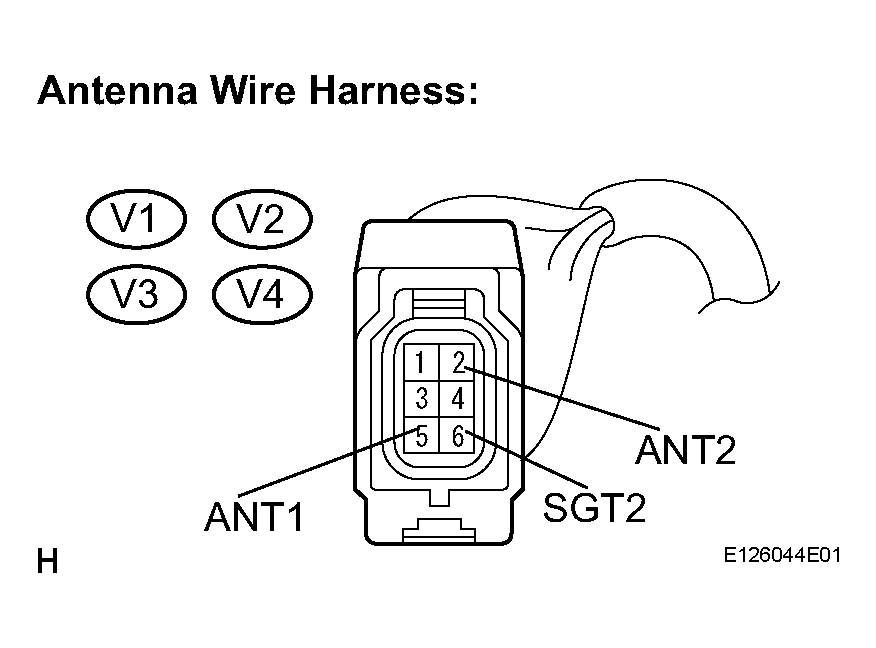

   Fig 1: Checking Wire Harness (Door Oscillator - Antenna)

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Disconnect the antenna and door oscillator connectors.

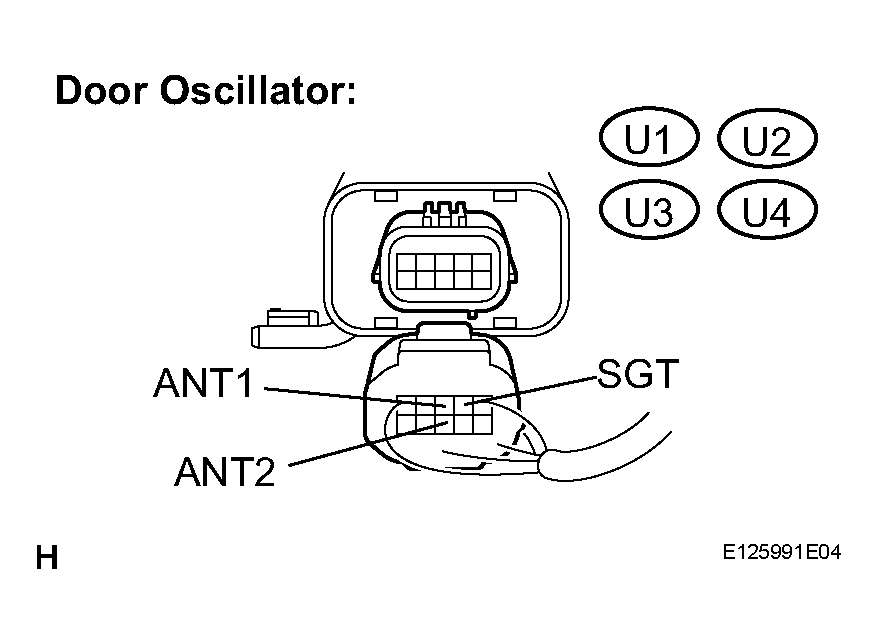

   Fig 2: Disconnecting Antenna And Door Oscillator Connectors

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. Measure the resistance between the oscillator and the antenna to check for an open circuit in the wire harness.

   Resistance:

   Below 1

4. Measure the resistance between the oscillator and the antenna to check for a short circuit in the wire harness.

   Resistance:

   10 k or higher

   HINT:

   Refer to the WIRING DIAGRAM  for connection of each terminal.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
