Inspection Procedure

1. Check the DATA LIST for proper functioning of the door unlock detection switch.

   Body ECU:

   BODY ECU DATA LIST



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   Rr LOCK POS SW	Door unlock detection switch signal / ON or OFF	ON: Door is unlocked OFF: Door is locked	-

   OK:

   "ON" (door is unlocked) appears on the screen.

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

1. Remove the rear door lock assembly RH.

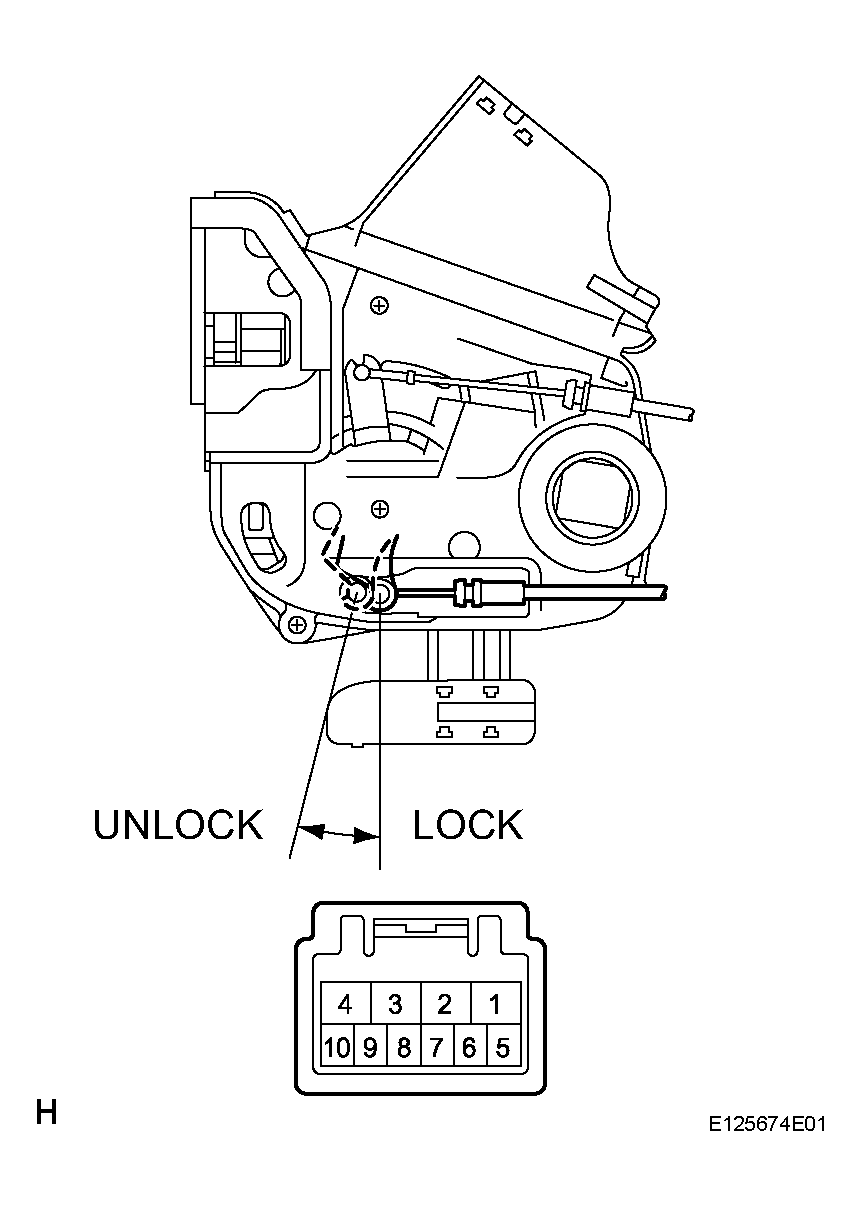

   Fig 1: Inspecting Rear Door Lock Assembly RH (Door Unlock Detection Switch)

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Measure the resistance of the door unlock detection switch.
   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Door Lock Condition	Specified Condition
   Battery positive (+) --> Terminal 1 Battery negative (-) --> Terminal 4	ON (Door lock set to UNLOCK)	6 - 9 (Below 1 )
   Battery positive (+) --> Terminal 4 Battery negative (-) --> Terminal 1	OFF (Door lock set to LOCK)	6 - 9 (10 k or higher)

NG: REPLACE REAR DOOR LOCK ASSEMBLY RH

OK: GO TO NEXT STEP

1. Disconnect the D6 and I5 connectors.

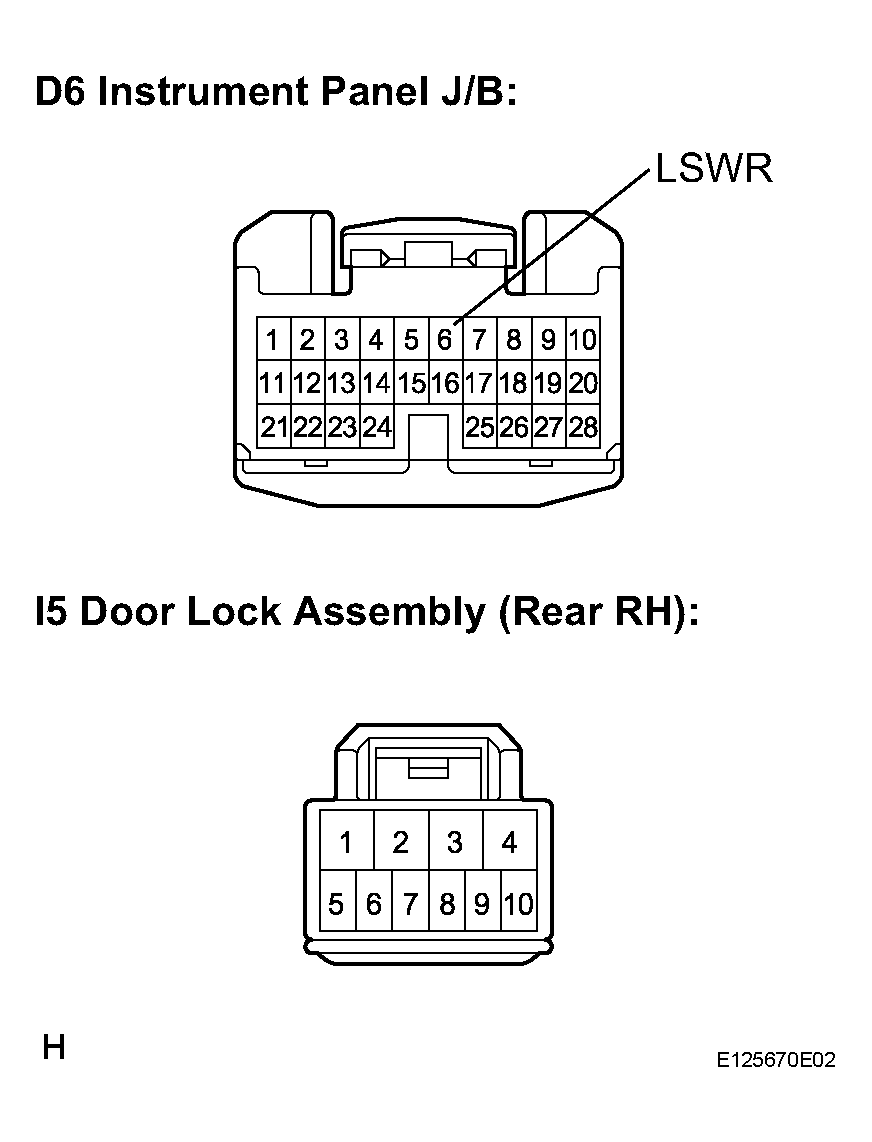

   Fig 2: Disconnecting D6 And I5 Connectors

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Measure the resistance of the wire harness side connectors.
   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D6-6 - I5-6	Always	Below 1
   I5-9 - Body ground	Always	Below 1

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
