Inspection Procedure

1. Check the DATA LIST for proper functioning of the door unlock detection switch.

   Body ECU:

   DATA LIST



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   Rr LOCK POS SW	Door unlock detection switch signal / ON or OFF	ON: Door is unlocked OFF: Door is locked	-

   OK:

   "ON" (door is unlocked) appears on the screen.

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

1. Remove the rear door lock assembly LH.

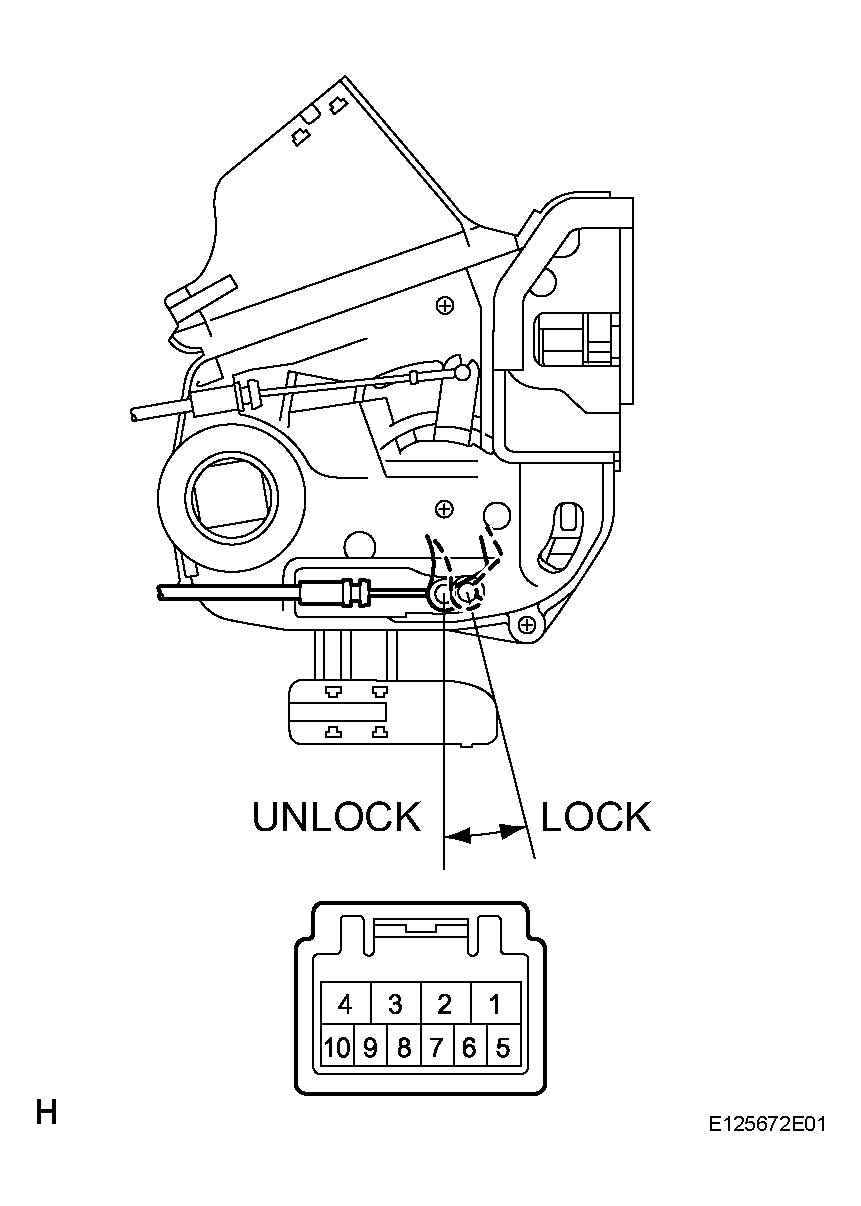

   Fig 1: Inspecting Rear Door Lock Assembly LH

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Measure the resistance of the door unlock detection switch.

   Resistance

   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Door Lock Condition	Specified Condition
   Battery positive (+) Terminal 1 Battery negative (-) --> Terminal 4	ON (Door lock set to UNLOCK)	6 - 9 (Below 1 )
   Battery positive (+) --> Terminal 4 Battery negative (-) --> Terminal 1	OFF (Door lock set to LOCK)	6 - 9 (10 k or higher)

NG: REPLACE REAR DOOR LOCK ASSEMBLY LH

OK: GO TO NEXT STEP

1. Disconnect the J5 connector.

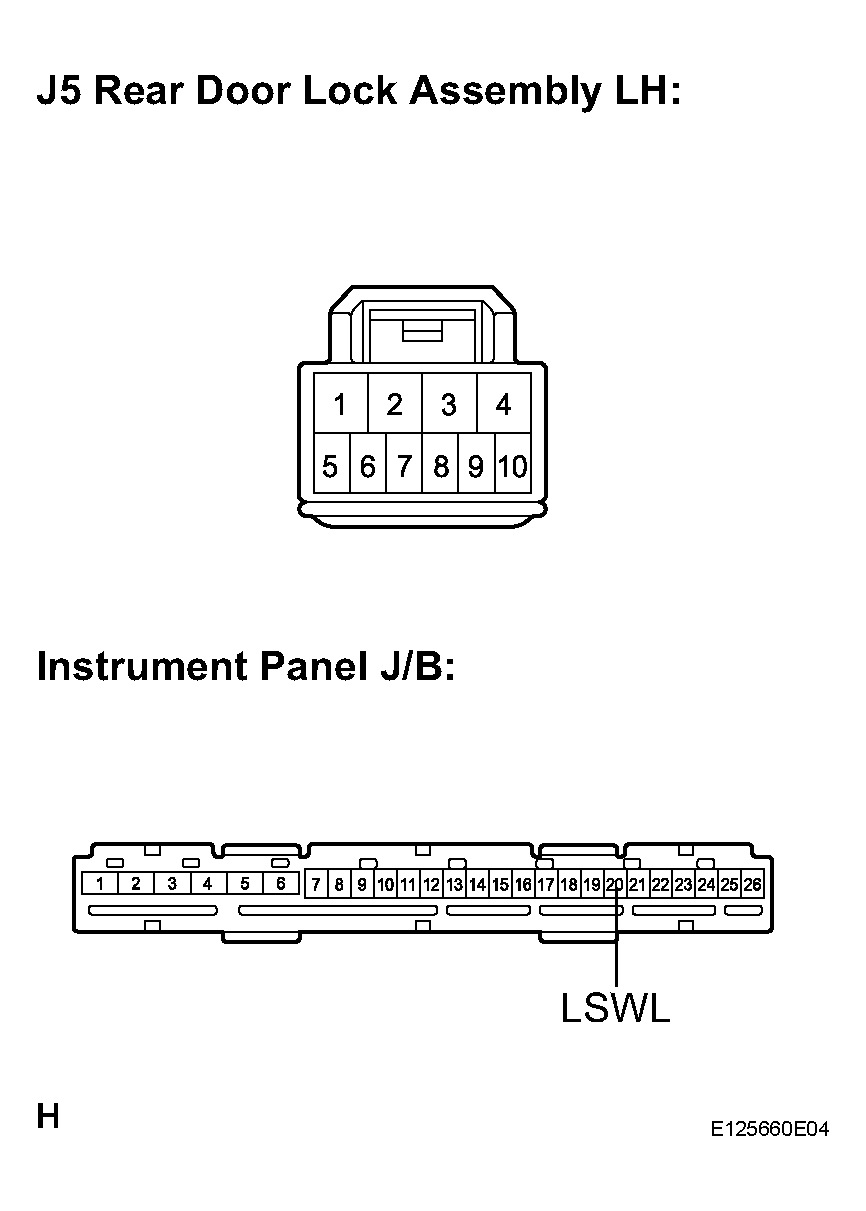

   Fig 2: Disconnecting J5 Connector

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Remove the body ECU from instrument panel J/B.
3. Measure the resistance of the wire harness side connectors.
   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   20 - J5-6	Always	Below 1
   J5-9 - Body ground	Always	Below 1

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
