Power Source Circuit: Wiring Diagram

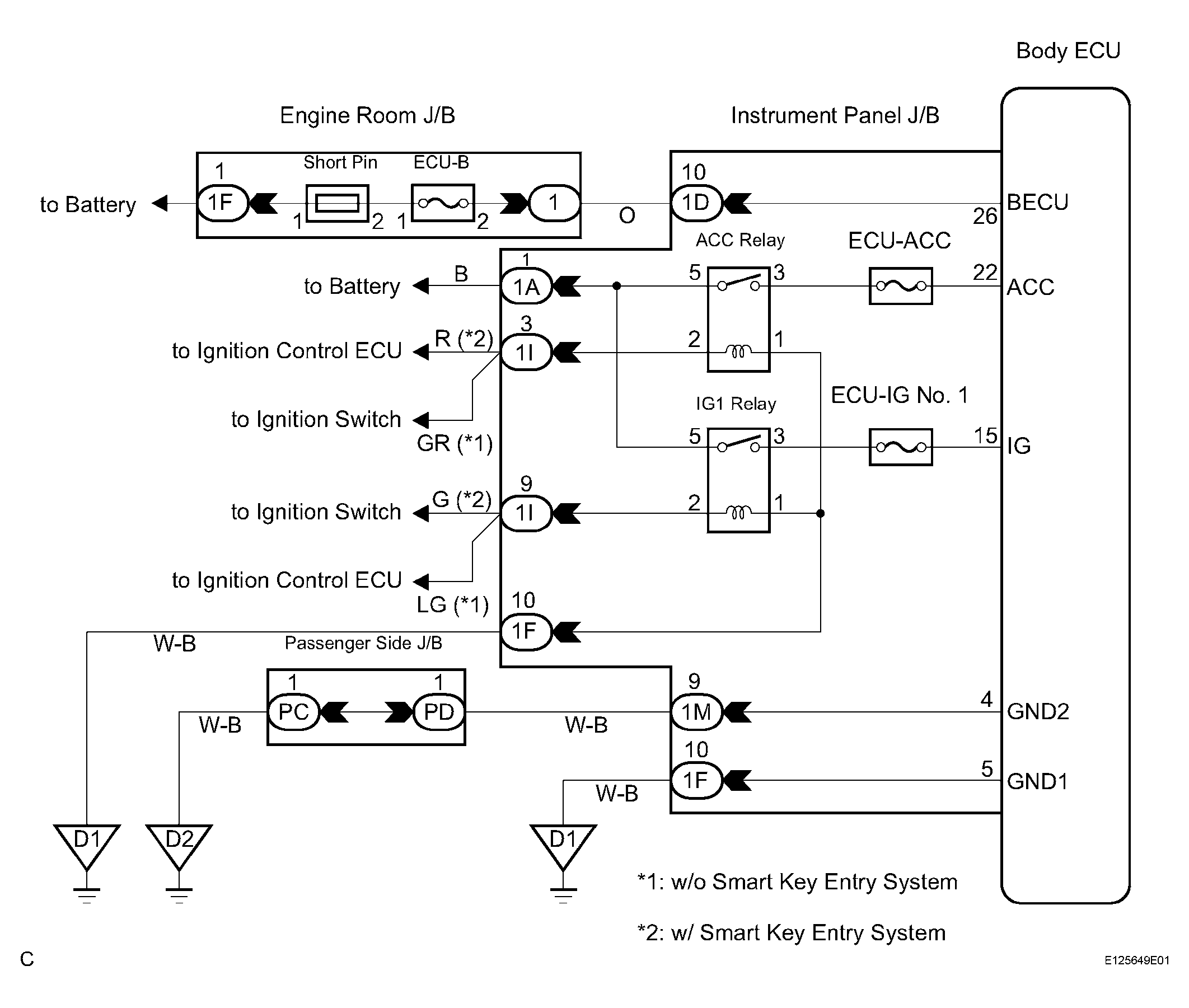

Fig 1: Power Source Circuit - Wiring Diagram

G04379768

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
