Inspection Procedure

1. Check the DATA LIST for proper functioning of the door courtesy switch.
   BODY ECU DATA LIST



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   D COURTESY SW	Door courtesy switch signal / ON or OFF	ON: Door is open OFF: Door is closed	-

   OK:

   "ON" (door is open) appears on the screen.

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

1. Remove the courtesy switch.

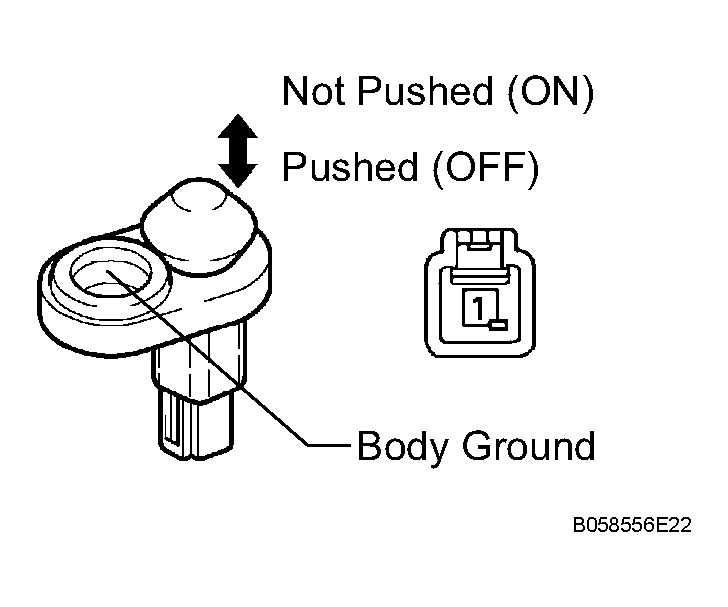

   Fig 1: Inspecting Front Door Courtesy Switch

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Measure the resistance of the switch.
   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   1 - Body ground	Not Pushed (ON)	Below 1
   1 - Body ground	Pushed (OFF)	10 k or higher

NG: REPLACE FRONT DOOR COURTESY SWITCH

OK: GO TO NEXT STEP

1. Disconnect the D8 and L5 connectors.
2. Measure the resistance of the wire harness side connectors.
   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D8-14 - K4-1	Always	Below 1

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

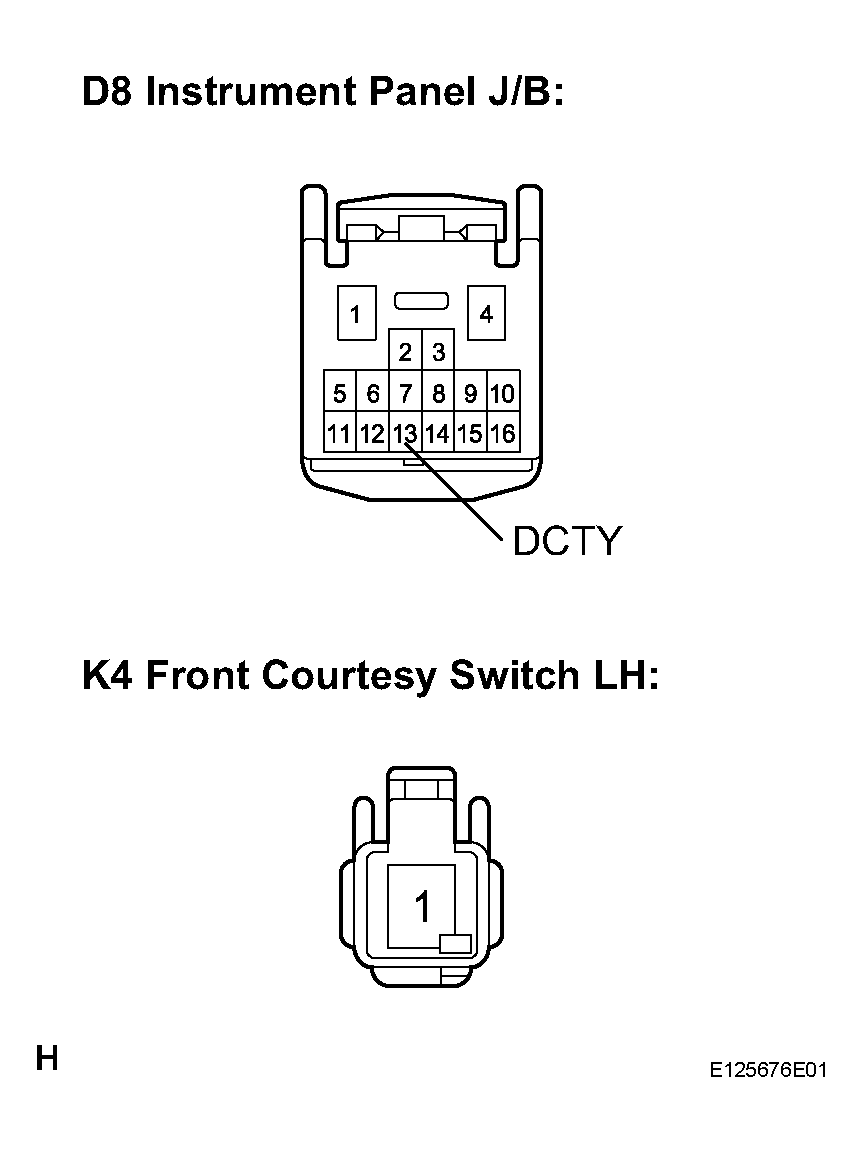

Fig 2: Disconnecting D8 And L5 Connectors

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
