Door Lock Control Switch Circuit: Wiring Diagram

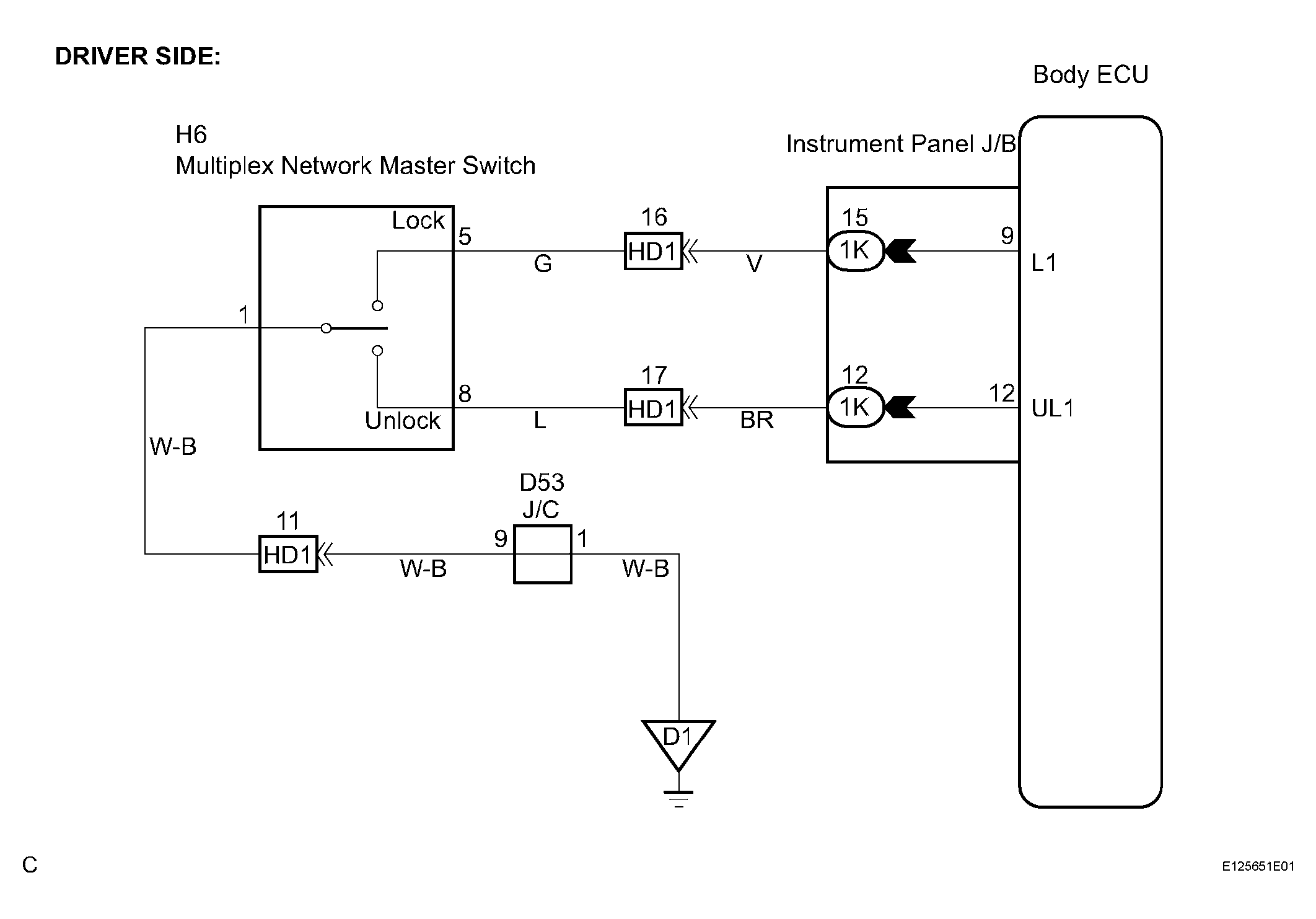

Fig 1: Door Lock Control Switch Circuit - Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

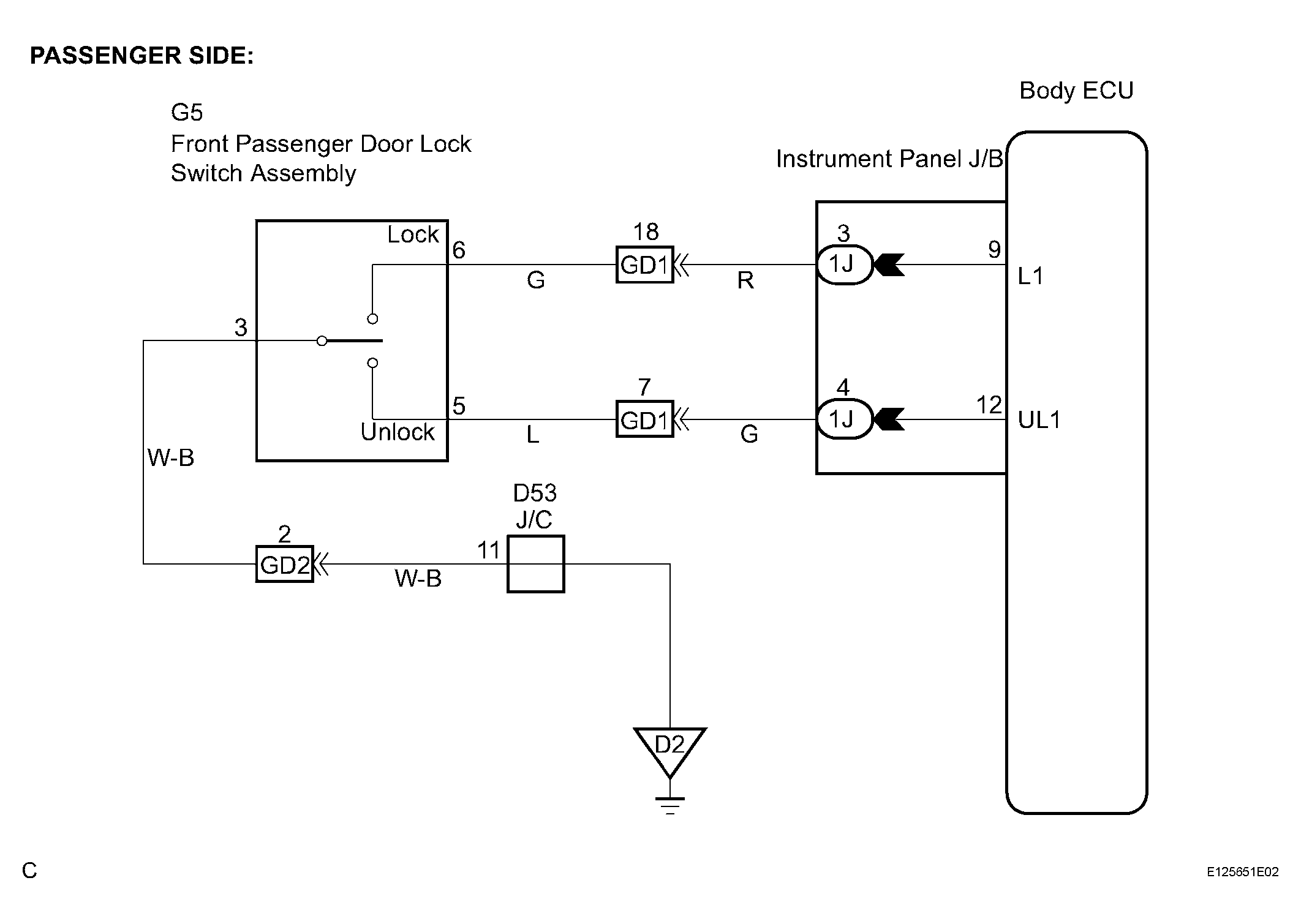

Fig 2: Door Lock Control Switch Circuit (Passenger Side) - Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
