Door Control Switch: Inspection

  1. INSPECT DOOR LOCK CONTROL SWITCH (for Driver Side)
    1. Remove the multiplex network master switch assembly.
    2. Measure the resistance of the door control switch.

      Resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      1 - 5 Lock Below 1
      1 - 5
      1 - 8      		 OFF 10 k or higher
      1 - 8 Unlock Below 1

      If the result is not as specified, replace the switch assembly.

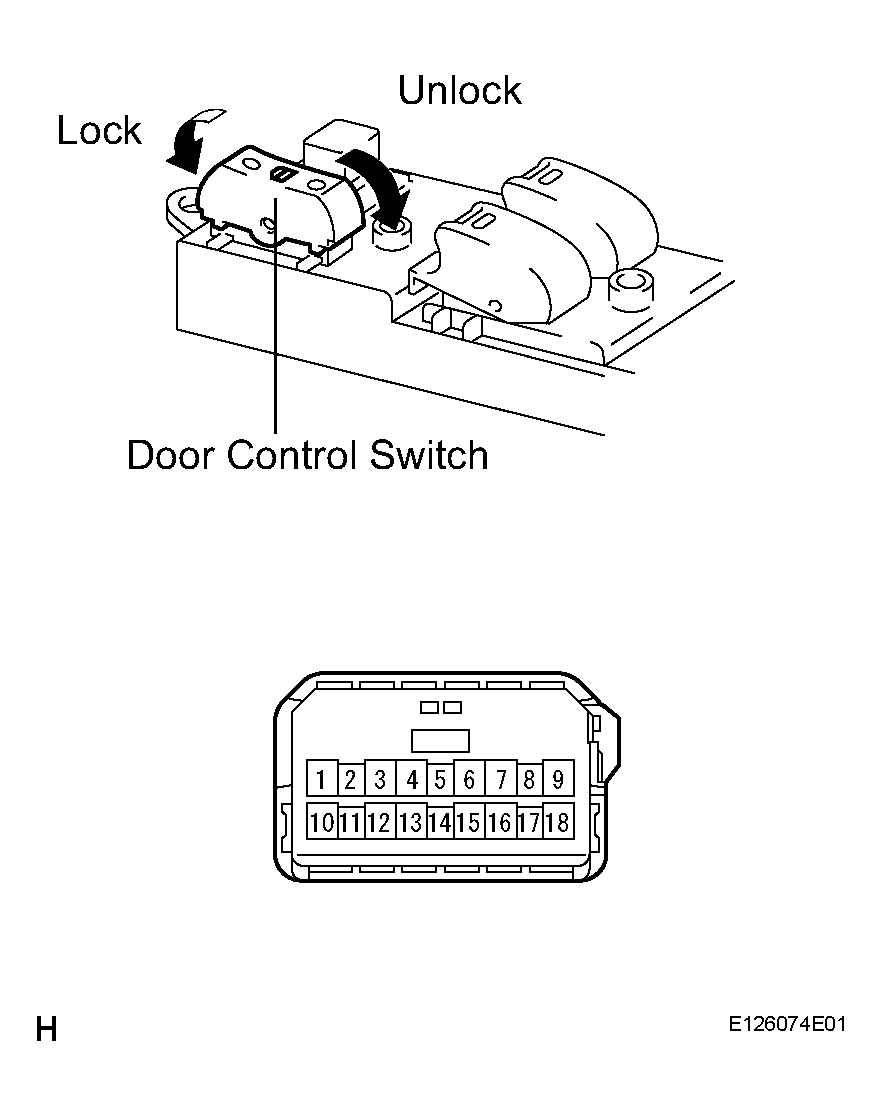

      Fig 1: Removing Multiplex Network Master Switch Assembly
      G04379915Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. INSPECT DOOR LOCK CONTROL SWITCH (for Front Passenger Side)

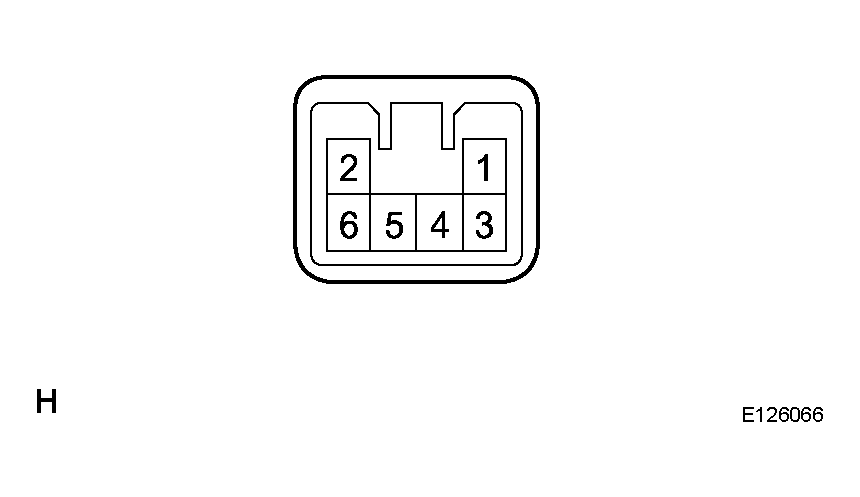

    Fig 2: Inspecting Door Lock Control Switch
    G04379916Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    1. Remove the door lock control switch assembly.
    2. Measure the resistance of the switch.

      Resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      3 - 6 Lock Below 1
      3 - 5
      3 - 6      		 OFF 10 k or higher
      3 - 5 Unlock Below 1

      If the result is not as specified, replace the switch assembly.
