Inspection Procedure

  1. CHECK SPEEDOMETER
    1. Drive the vehicle and check if the function of the speedometer in the combination meter is normal.

      OK:

      Actual vehicle speed and the speed indicated on the speedometer are the same.

      HINT:

      The vehicle speed sensor is functioning normally when the indication on the speedometer is normal.

    NG: GO TO  COMBINATION METER

    OK: GO TO NEXT STEP

  2. INSPECT MULTI-DISPLAY
    1. Disconnect the multi-display connector E25.

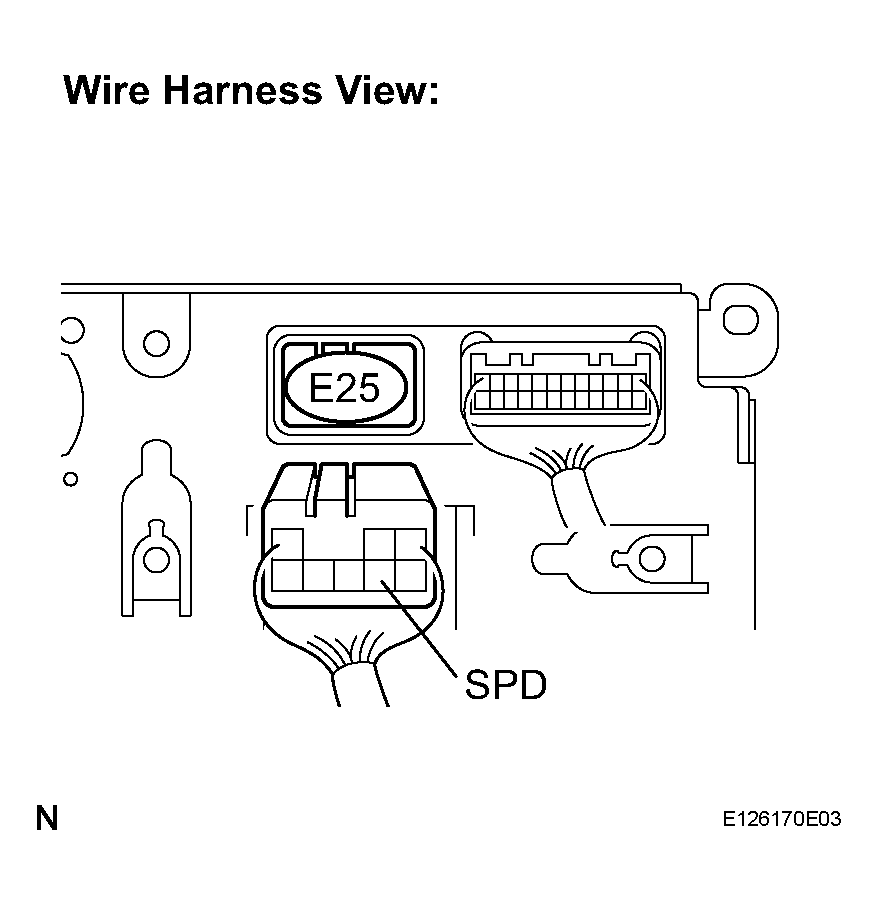

      Fig 1: Disconnecting Multi-Display Connector E25
      G04380267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure voltage.
      1. Jack up either one of the drive wheels.
      2. Move the shift lever to the neutral position.
      3. Turn the ignition switch on (IG).
      4. Measure the voltage between terminal SPD of the multi-display and body ground when the drive wheels are turned slowly.
        Fig 2: View Of Voltage Pulses/Blinking Pattern
        G04050156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        OK:

        Voltage pulses as shown in  Fig 2 .

    OK: REPLACE MULTI-DISPLAY

    NG: GO TO NEXT STEP

  3. CHECK HARNESS AND CONNECTOR (COMBINATION METER - MULTI-DISPLAY)
    1. Disconnect the multi-display connector E25 and combination meter connector E2.

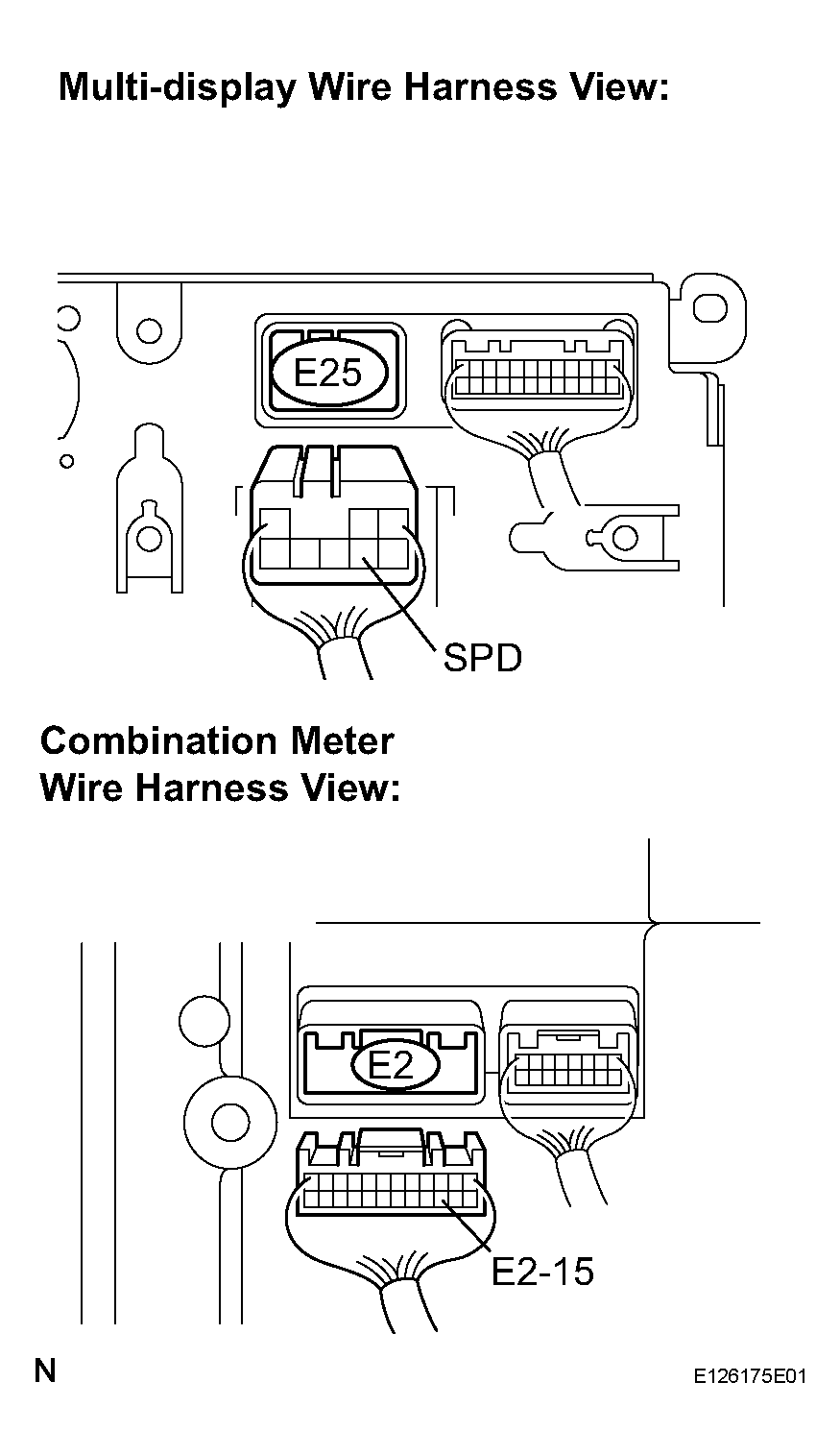

      Fig 3: Disconnecting Multi-Display Connector E25
      G04380269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      STANDARD RESISTANCE SPECIFIED CONDITION

      Tester connection Condition Specified condition
      SPD - E2-15 Ignition switch OFF Below 1

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  4. CHECK HARNESS AND CONNECTOR (COMBINATION METER - MULTI-DISPLAY)
    1. Disconnect the multi-display connector E25 and combination meter connector E2.
    2. Measure the resistance according to the value(s) in the table below.
      STANDARD RESISTANCE SPECIFIED CONDITION

      Tester connection Condition Specified condition
      SPD - Body ground Ignition switch OFF 10 k or higher

      HINT:

      If the resistance between terminal SPD and body ground is less than 10 k, there may be a short in a wire harness, connector, or ECU.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU

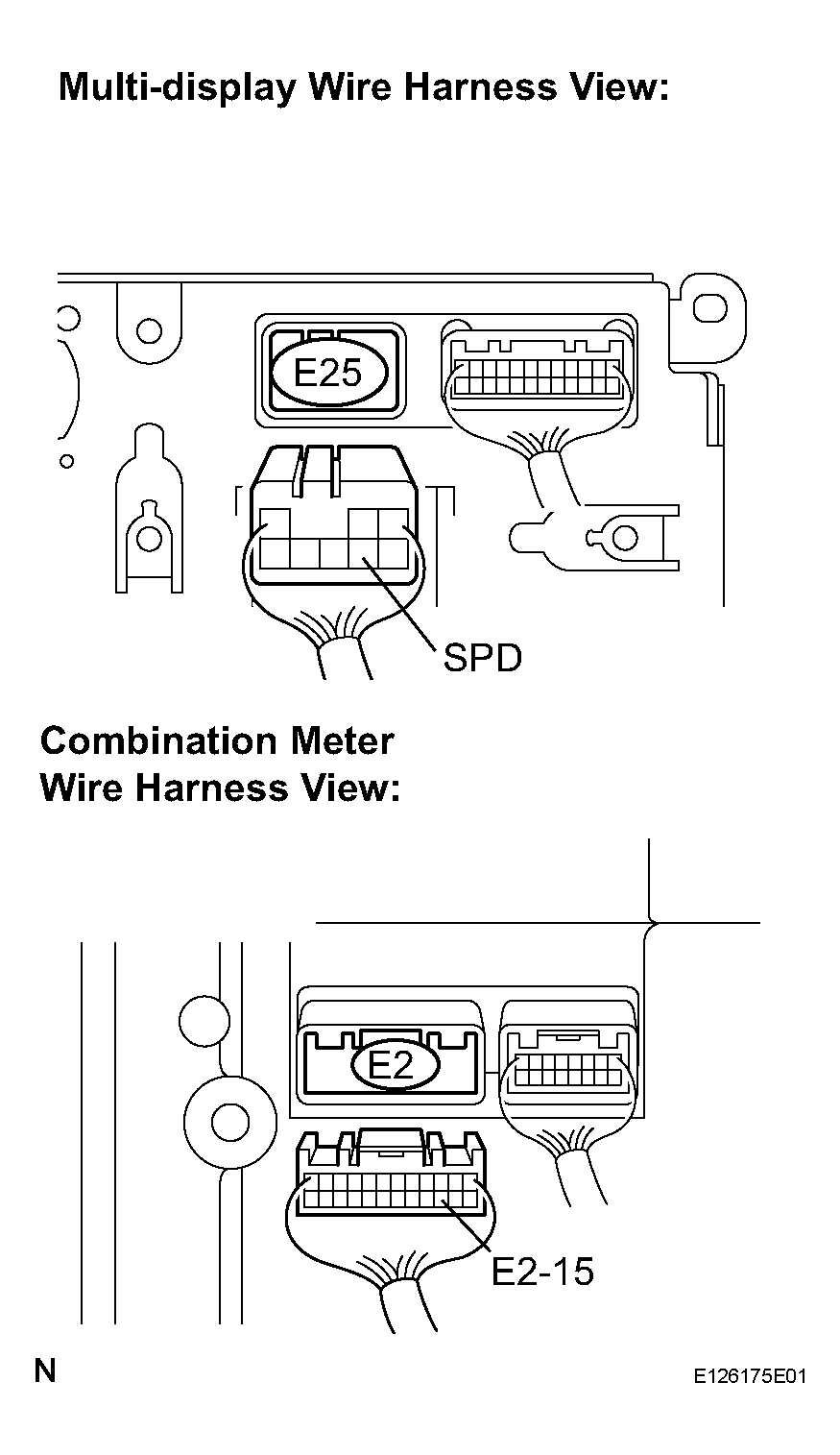

    Fig 4: Disconnecting Combination Meter Connector E2
    G04380270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE COMBINATION METER
