Inspection Procedure

1. Check that the map disc is not deformed or cracked.
   Fig 1: Ensure Map Disc Is Not Cracked Or Deformed

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   No deformations or cracks on map disc.

NG: REPLACE MAP DISC

OK: GO TO NEXT STEP

1. Check if a touch scroll can be performed on the map display.

   OK:

   Touch scroll can be performed.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

OK: GO TO NEXT STEP

1. Enter the NAVIGATION CHECK MODE .
2. While driving the vehicle, compare the "Speed" indicator to the reading on the speedometer. Check if these readings are almost equal.

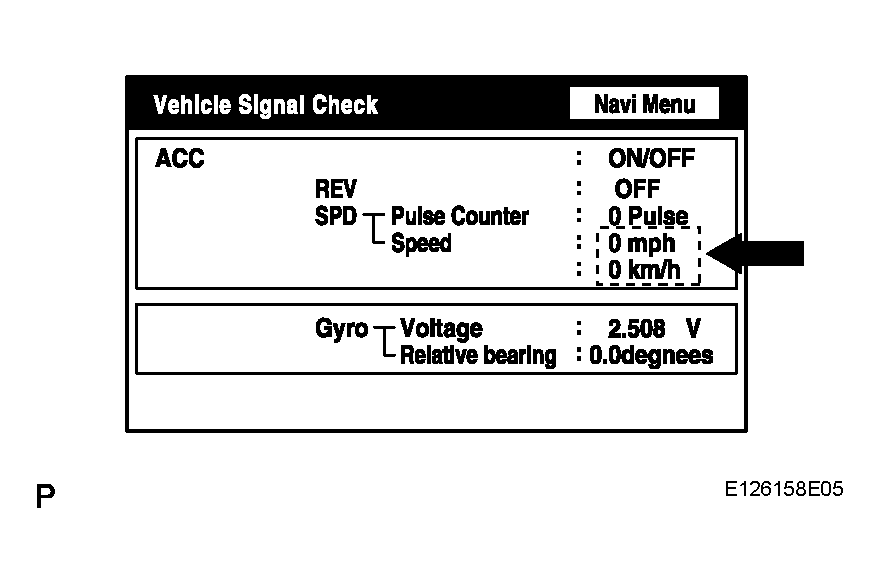

   Fig 2: Checking Vehicle Signal (Navigation Check Mode)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   The readings are almost equal.

NG: GO TO " VEHICLE SPEED SIGNAL CIRCUIT BETWEEN NAVIGATION ECU AND COMBINATION METER  "

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
