Parts Location

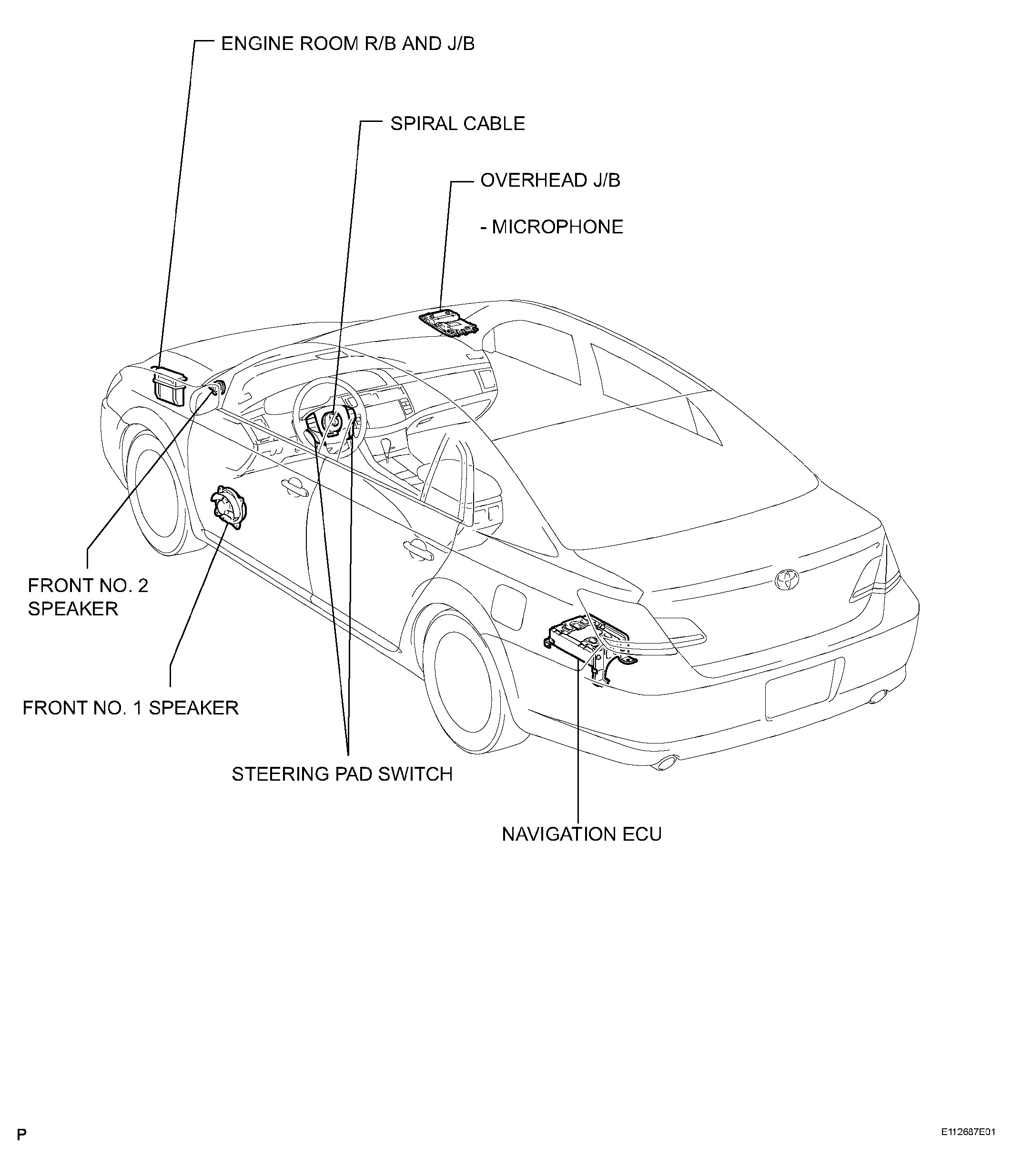

Fig 1: Identifying Navigation System Components Location (1 Of 2)
G04380162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

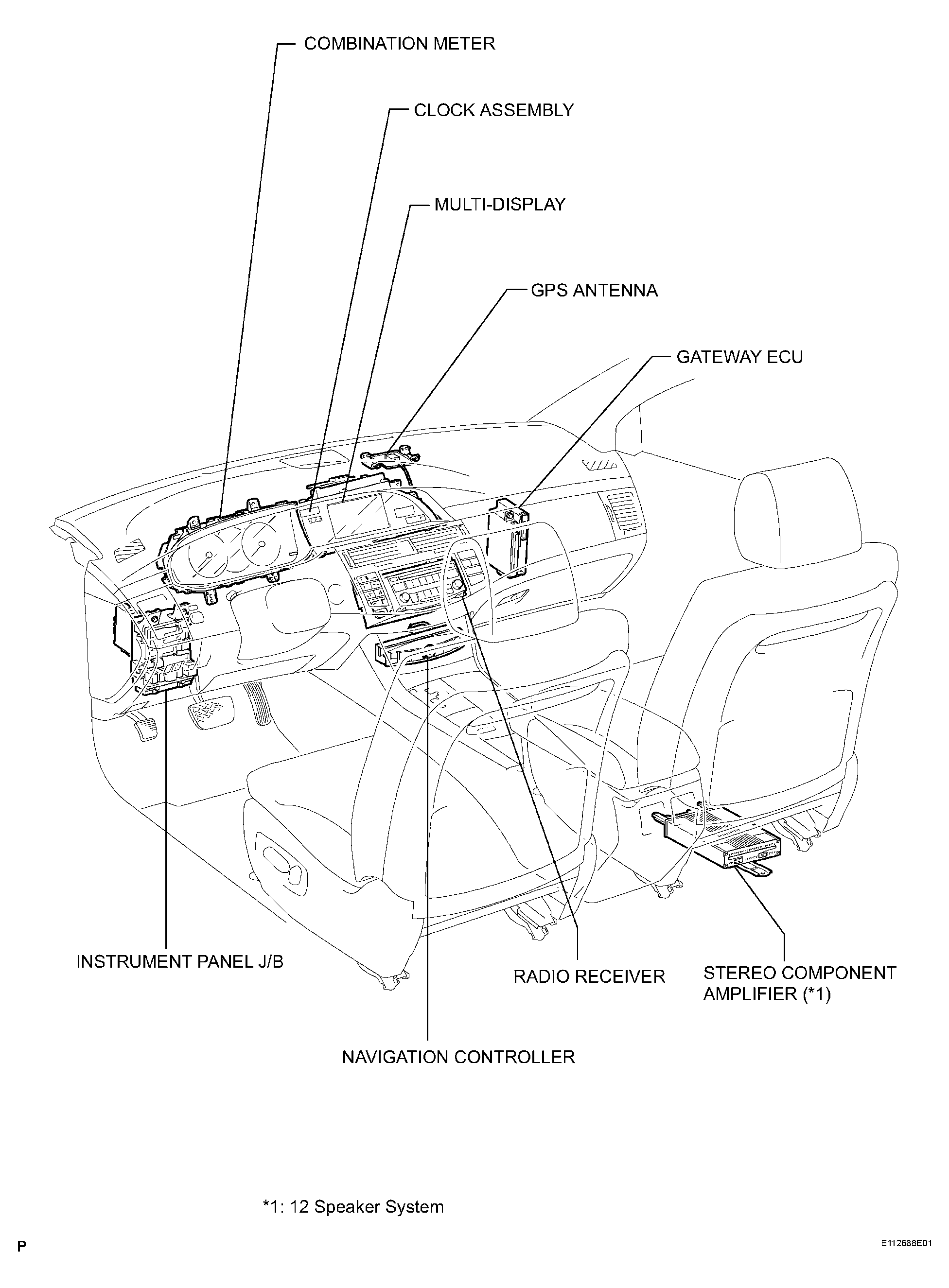

Fig 2: Identifying Navigation System Components Location (2 Of 2)
G04380163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
