Inspection Procedure

1. Check for foreign matter around the switches that might prevent operation.

   OK:

   No foreign matter is found.

NG: REMOVE ANY FOREIGN OBJECT

OK: GO TO NEXT STEP

1. Enter the DISPLAY CHECK MODE .
2. Operate the abnormal switch and check if the switch name and status are correctly displayed.

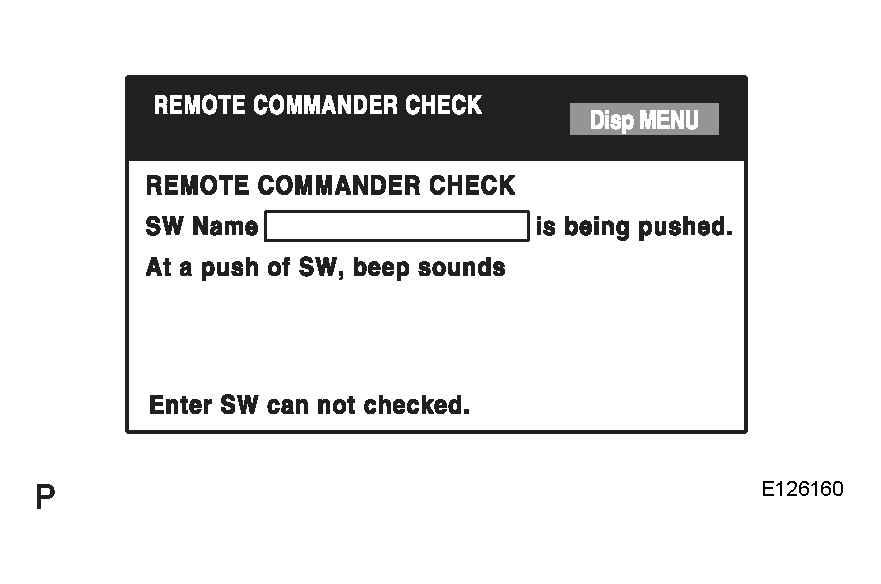

   Fig 1: Checking Remote Commander (Display Check Mode)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   The switch name and status are correctly displayed as operated.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

OK: REPLACE MULTI-DISPLAY
