Navigation Controller Power Source Circuit: Wiring Diagram

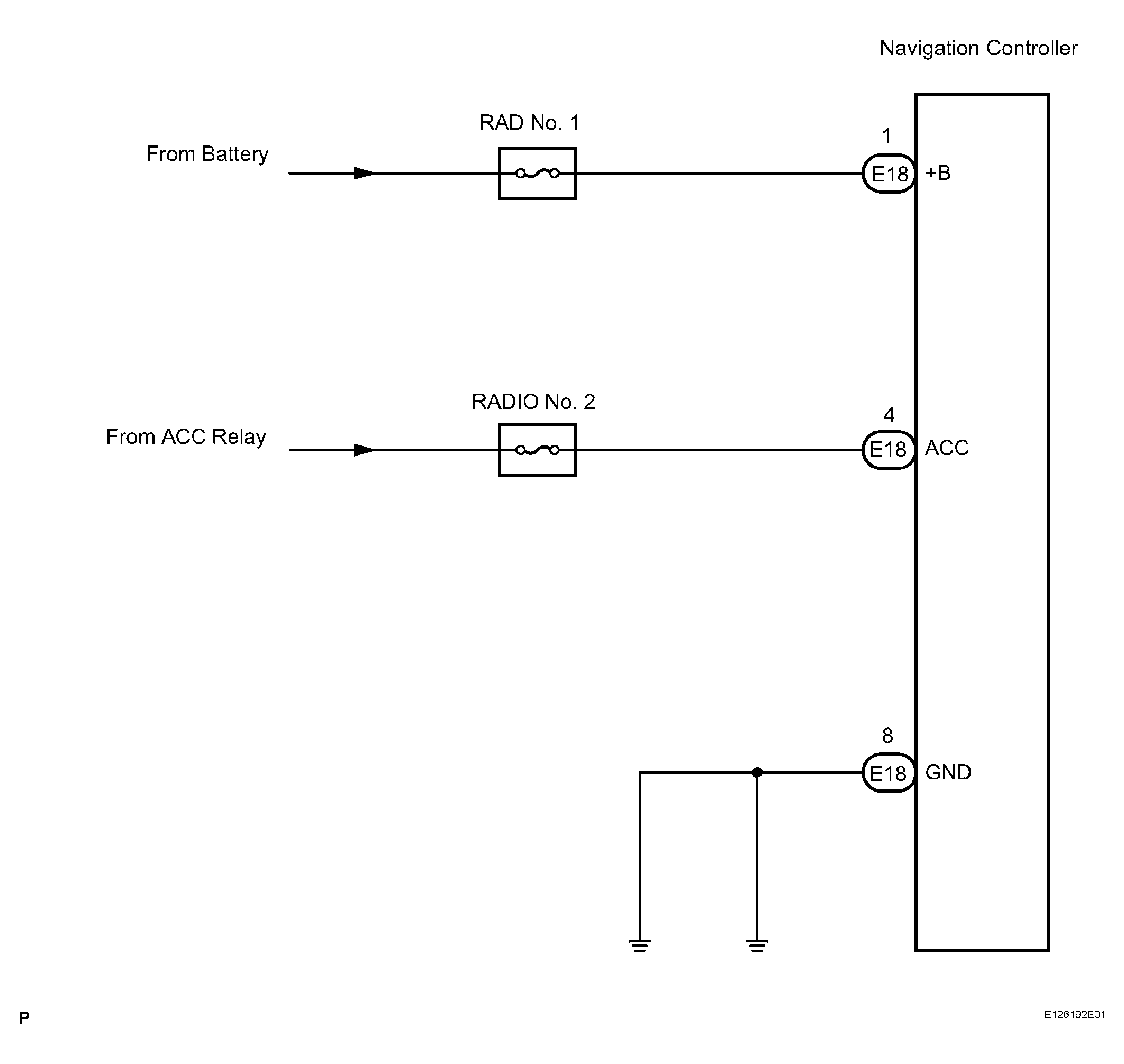

Fig 1: Navigation Controller Power Source Circuit - Wiring Diagram

G04380307

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
