Inspection Procedure

1. Enter the display adjustment screen by pressing the "DISP" switch.
2. Turn the light control switch to the TAIL position.
3. Check if "DAY MODE" on the display adjustment is ON.

   OK:

   "DAY MODE" is ON.

NG: Go to step 2

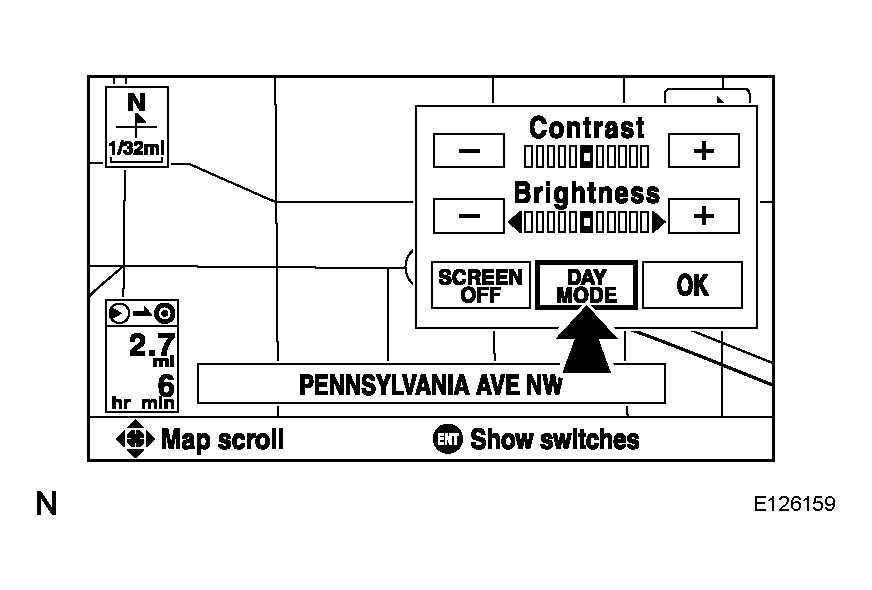

Fig 1: Display DAY MODE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: TURN "DAY MODE" SETTING OFF

1. Enter the DISPLAY CHECK MODE .
2. Check that the display changes between ON and OFF according to the light control switch operation.

   OK

   DISPLAY REFERENCE



   Light Control Switch	Display
   TAIL or ON	ON
   OFF	OFF

   HINT:

   The display is updated once per second. It is normal for the display to lag behind the actual switch operation.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

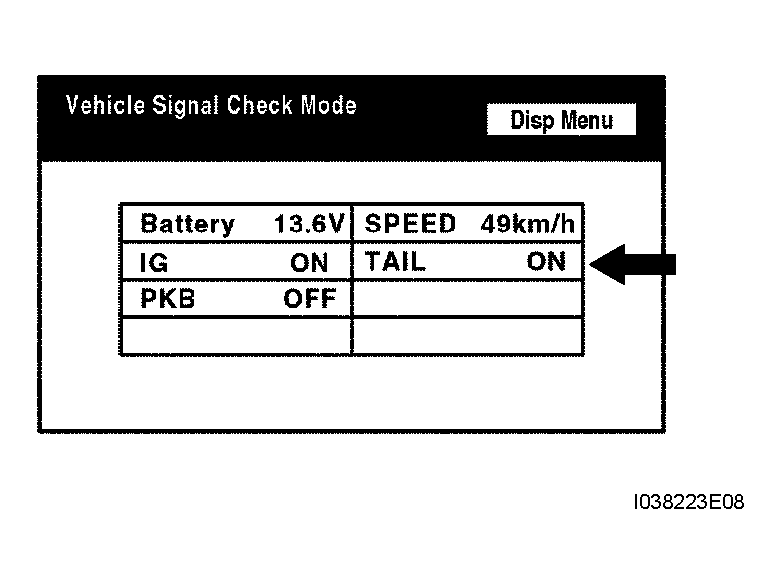

Fig 2: Display Vehicle Signal Check Mode

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE MULTI-DISPLAY
