Inspection Procedure

1. Check with the customer if the vehicle has been turned by a turntable.

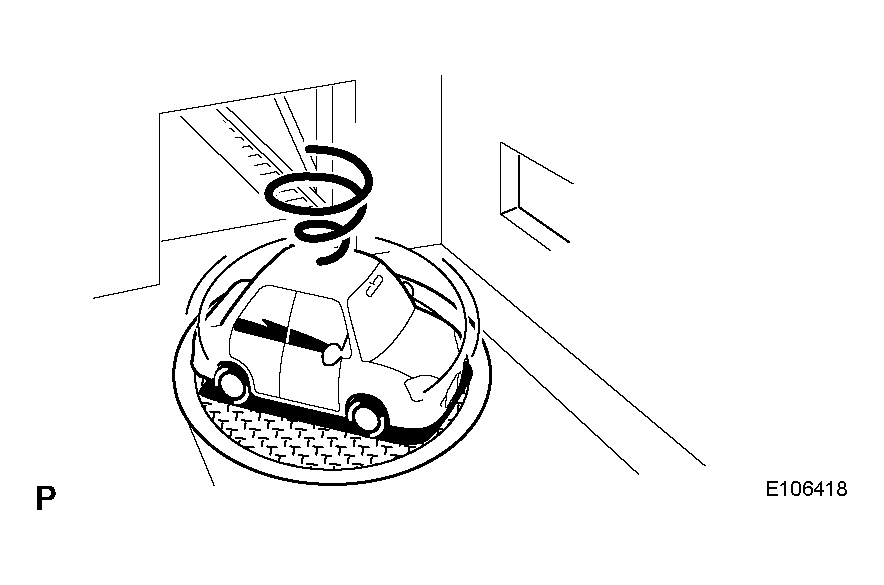

   Fig 1: Checking Cursor Or MAP Rotates Condition

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   Vehicle has not been turned by turntable.

   HINT:

   If the vehicle is rotated on a turntable with the ignition switch is turned on (ACC or IG), the system may store the angular velocity. As a result, the vehicle position cursor may deviate.

NG: TURN IGNITION SWITCH TO ON (IG) POSITION WHEN VEHICLE IS COMPLETELY STOPPED

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
