DTC Check / Clear

CHECK DTC
1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch on (IG).
3. Read DTCs on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
CLEAR DTC
1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch on (IG).
3. Clear the DTCs following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.

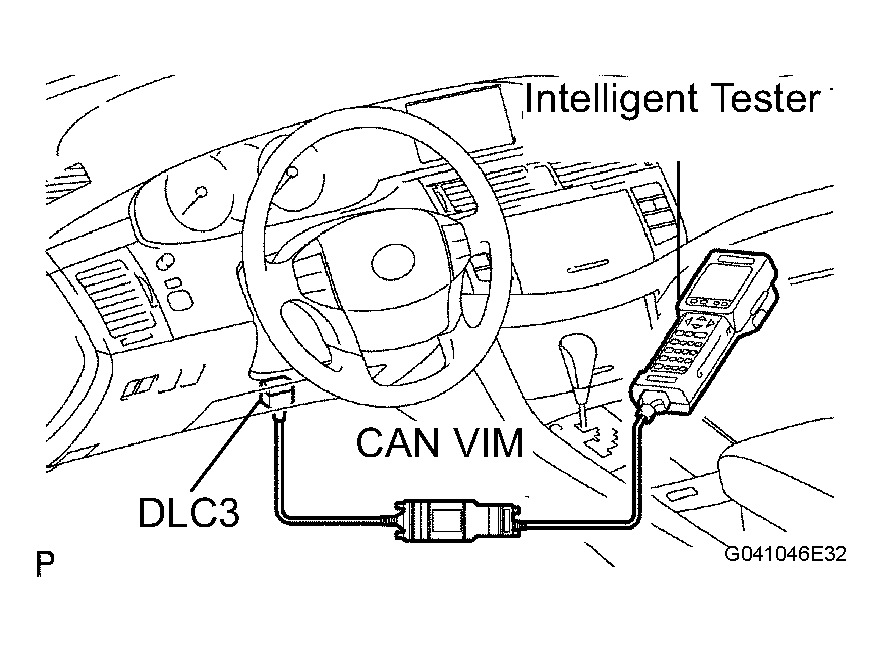

  Fig 1: Connecting Intelligent Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
