ID Code Box Power Source Circuit: Wiring Diagram

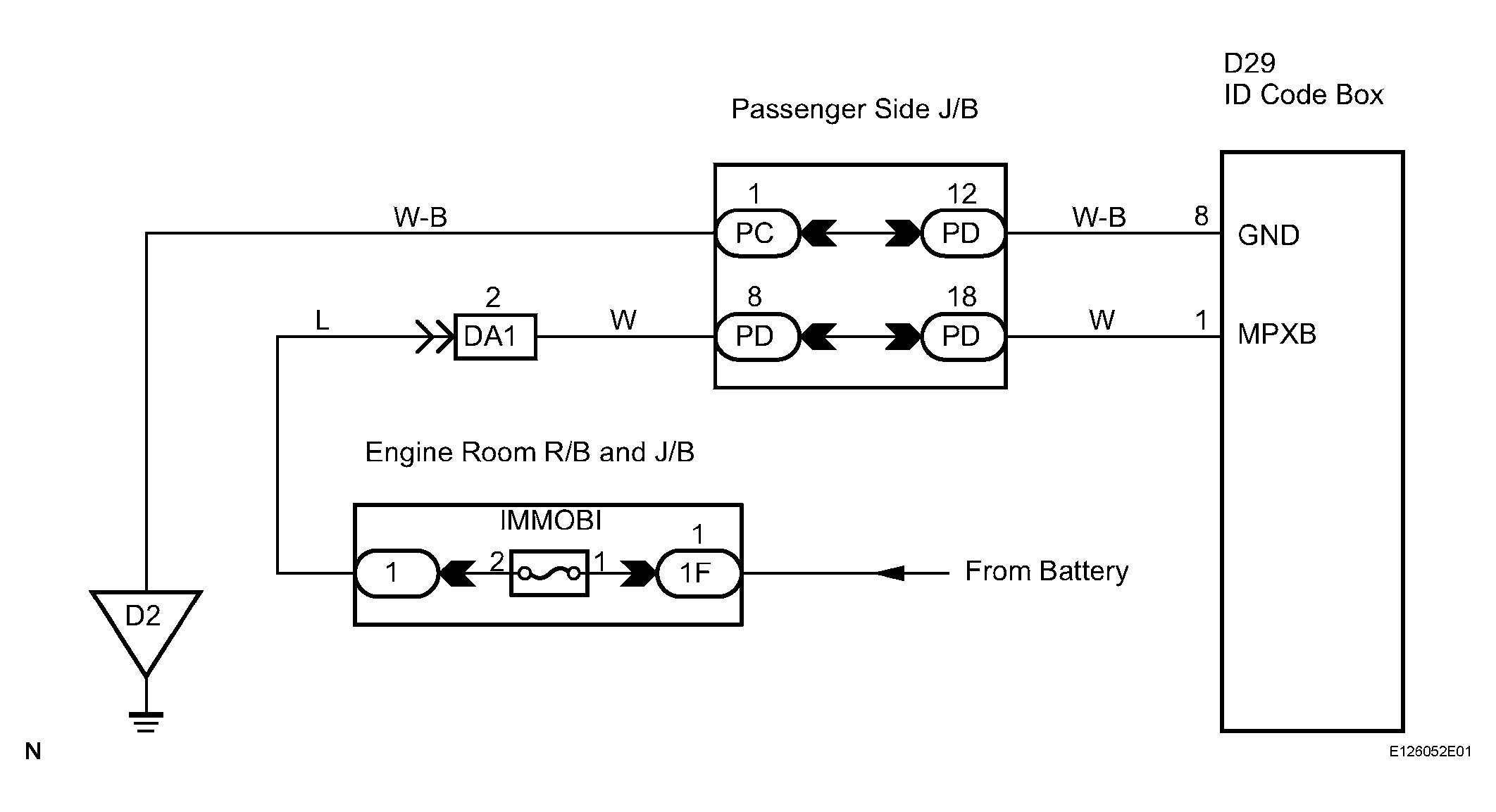

Fig 1: ID Code Box Power Source Circuit - Wiring Diagram

G04379893

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
