Check Mode Procedure

Check mode (Signal check):
DTC CHECK
1. Connect the intelligent tester to the DLC3.

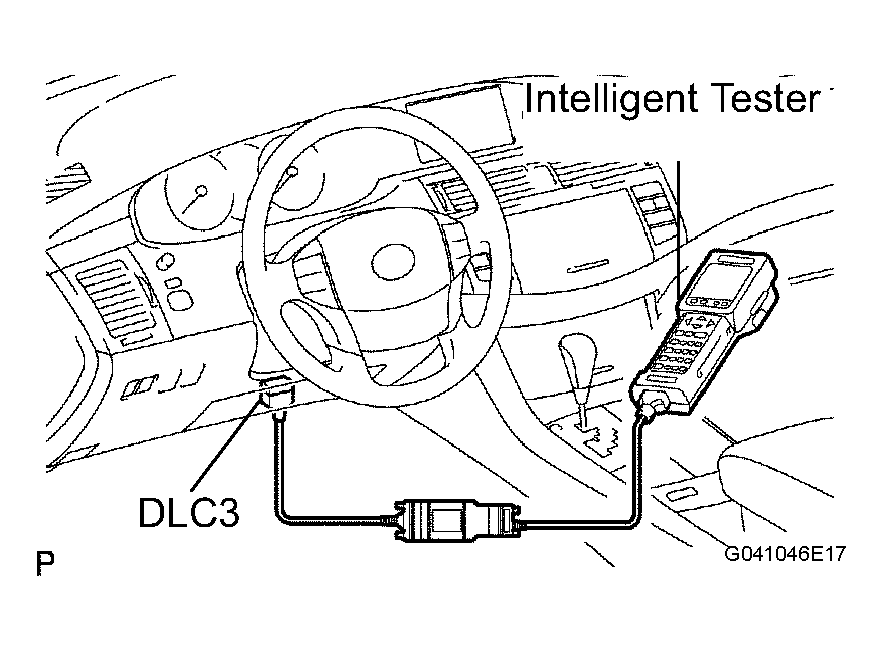

  Fig 1: Connecting Intelligent Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch on (IG).
3. Select the "SIGNAL CHECK", and proceed checking with the intelligent tester.
  NOTE: Select the "SIGNAL CHECK" from the "DTC CHECK" screen displayed on the intelligent tester to clear the output DTCs (both present and past).

  HINT:
  - DTCs can be detected more sensitively in check mode than in normal diagnosis mode.
  - Perform check mode inspection when a malfunction in each squib circuit is suspected even after the normal system code is output through normal diagnosis mode inspection.
