System Diagram

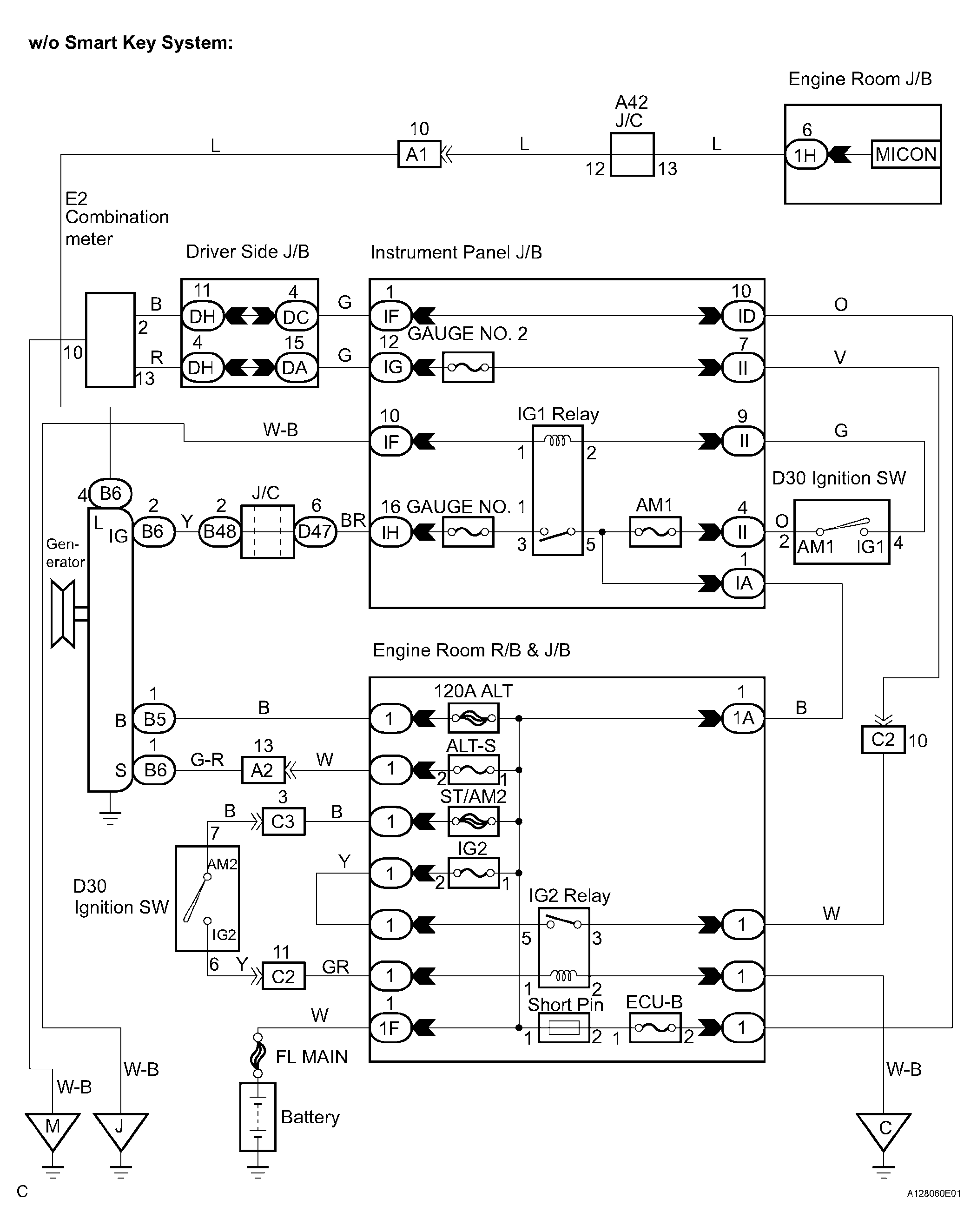

Fig 1: Charging System Diagram (W/O Smart Key System)
G04377275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

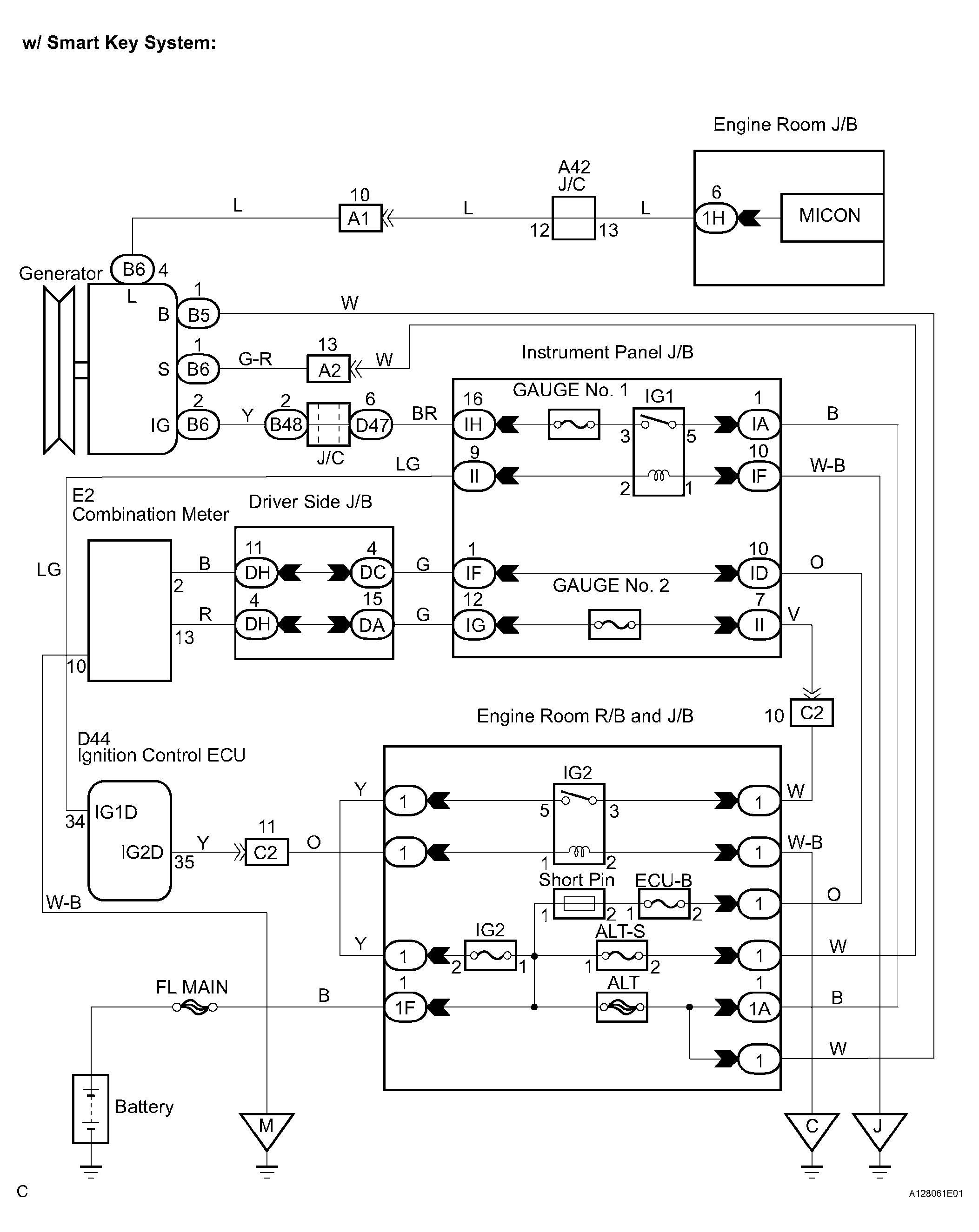

Fig 2: Charging System Diagram (W/ Smart Key System)
G04377276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
