Avalon Limited
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Windshield/WINDOWGLASS
>>
Power Window Control System
>>
Power Window Master Switch Power Source Circuit
>>
Wiring Diagram
Power Window Master Switch Power Source Circuit: Wiring Diagram

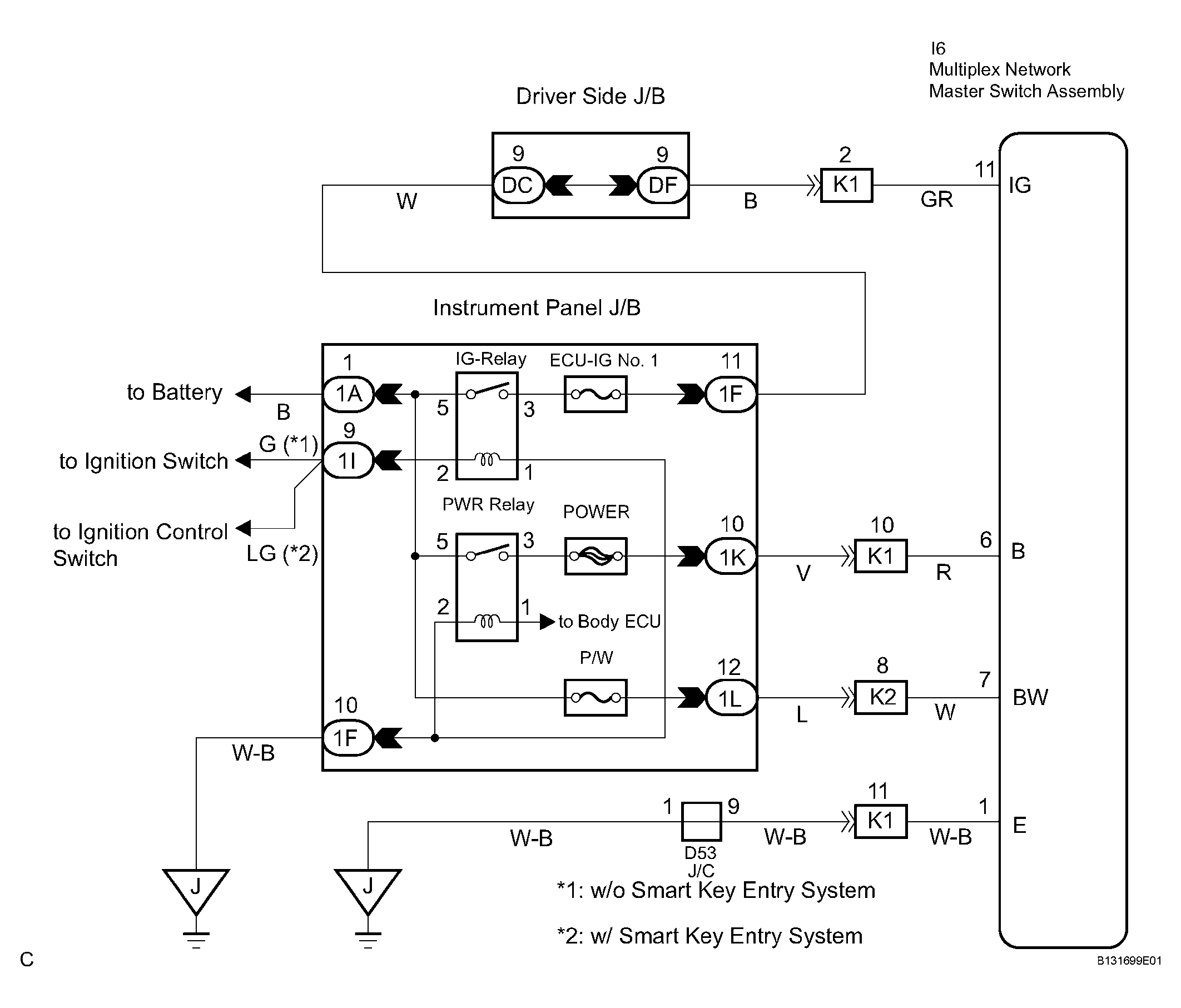

Fig 1: Power Window Master Switch Power Source Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
