Tape Player: Installation

  1. INSTALL TAPE PLAYER ASSEMBLY
    1. Connect all connectors.
    2. Install the tape player assembly with the 4 screws and tape player guide.
  2. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER

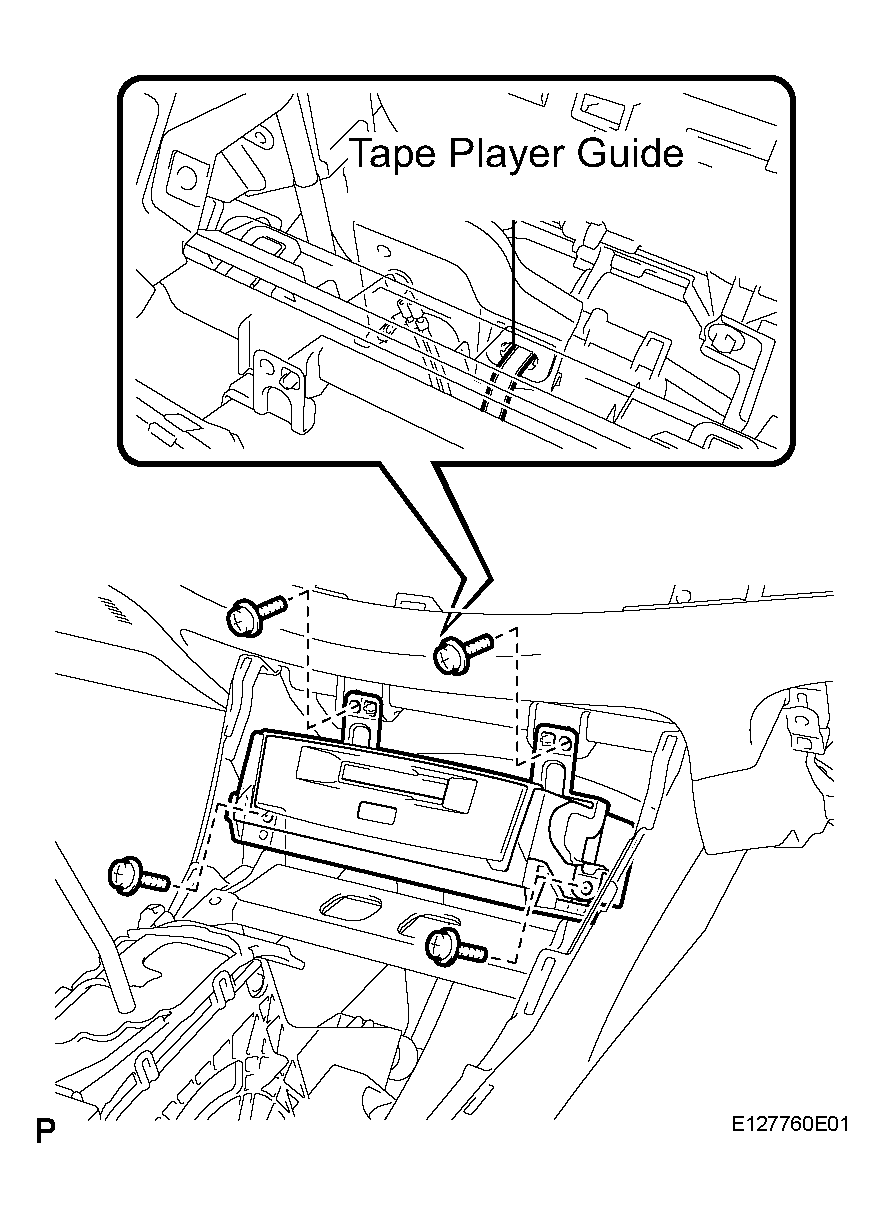

    Fig 1: Installing Tape Player Assembly Screws
    G04380130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
