Steering Pad Switch: Inspection
- INSPECT STEERING PAD SWITCH (w/o Navigation System)
- Disconnect the steering pad switch assembly connector.

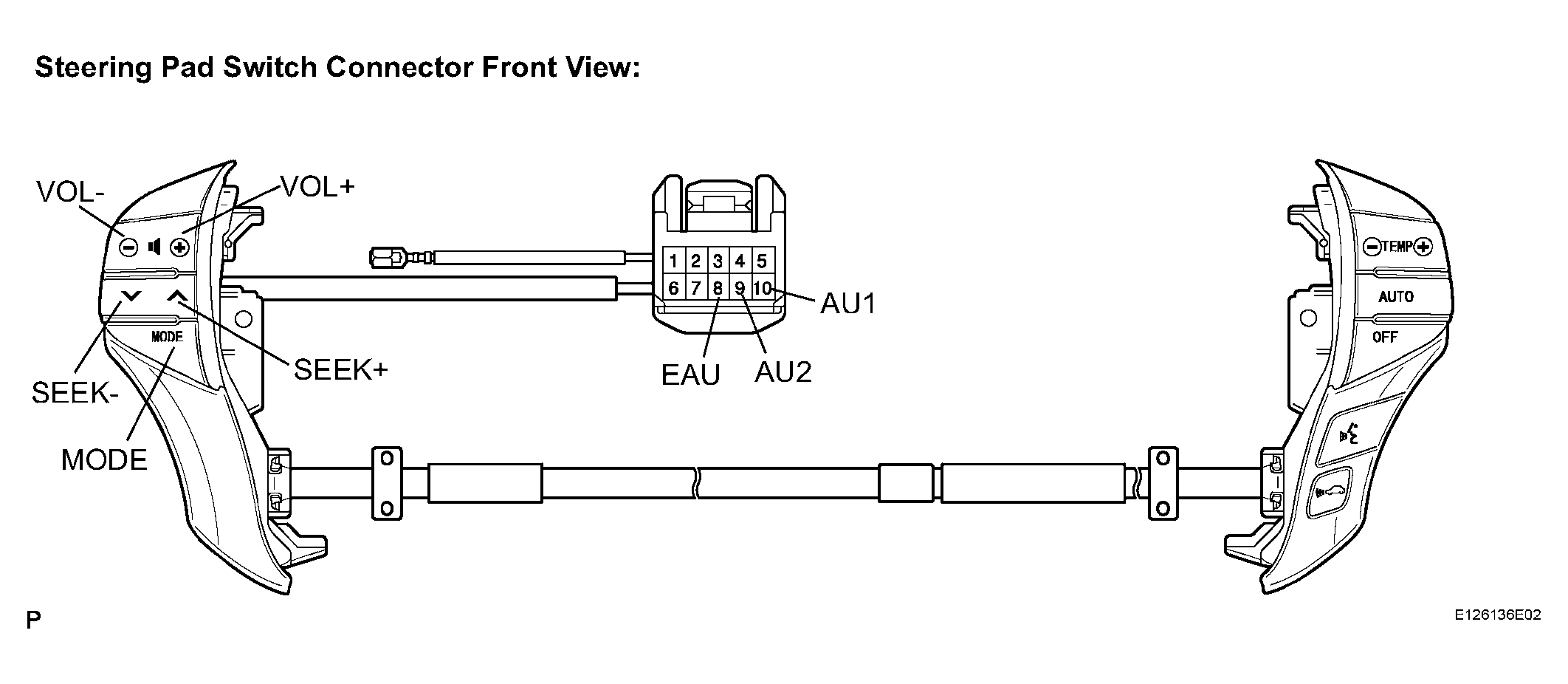

- Measure the resistance according to the values in the table below.
Standard resistance
STANDARD RESISTANCETester connection Condition Specified condition AU1 - EAU No switch is pushed Approx. 100 k AU1 - EAU SEEK+ switch: push Approx. 0 AU1 - EAU SEEK- switch: push Approx. 0.3 k AU1 - EAU VOL+ switch: push Approx. 1 k AU1 - EAU VOL- switch: push Approx. 3.2 k AU2 - EAU No switch is pushed Approx. 100 k AU2 - EAU MODE switch: push Approx. 0 If the result is not as specified, replace the steering pad switch.
- INSPECT STEERING PAD SWITCH (w/ Navigation System)
- Disconnect the steering pad switch assembly connector.

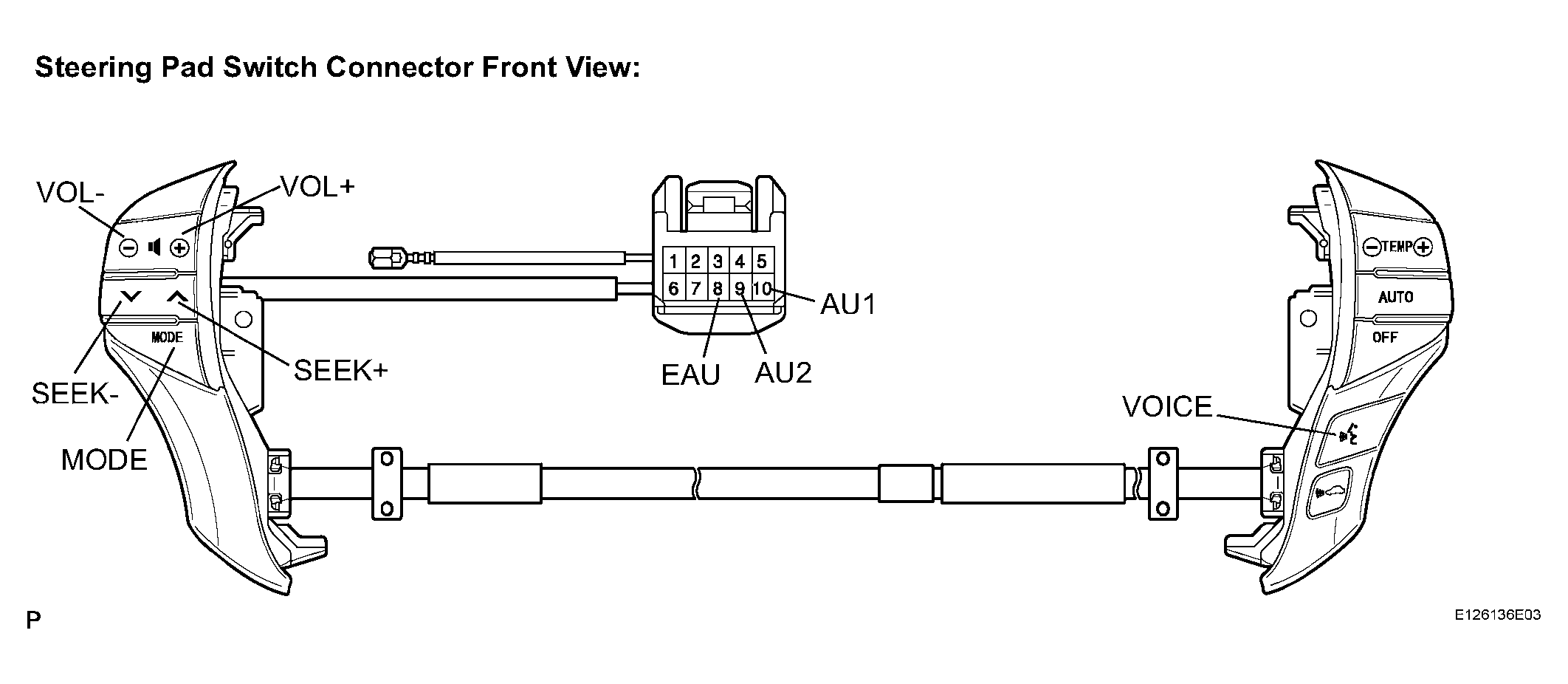

- Measure the resistance according to the values in the table below.
Standard resistance
STANDARD RESISTANCETester connection Condition Specified condition AU1 - EAU No switch is pushed Approx. 100 k AU1 - EAU SEEK+ switch: push Approx. 0 AU1 - EAU SEEK- switch: push Approx. 0.3 k AU1 - EAU VOL+ switch: push Approx. 1 k AU1 - EAU VOL- switch: push Approx. 3.2 k AU2 - EAU No switch is pushed Approx. 100 k AU2 - EAU MODE switch: push Approx. 0 AU2 - EAU VOICE switch: push Approx. 3.2 k If the result is not as specified, replace the steering pad switch.
