Parts Location

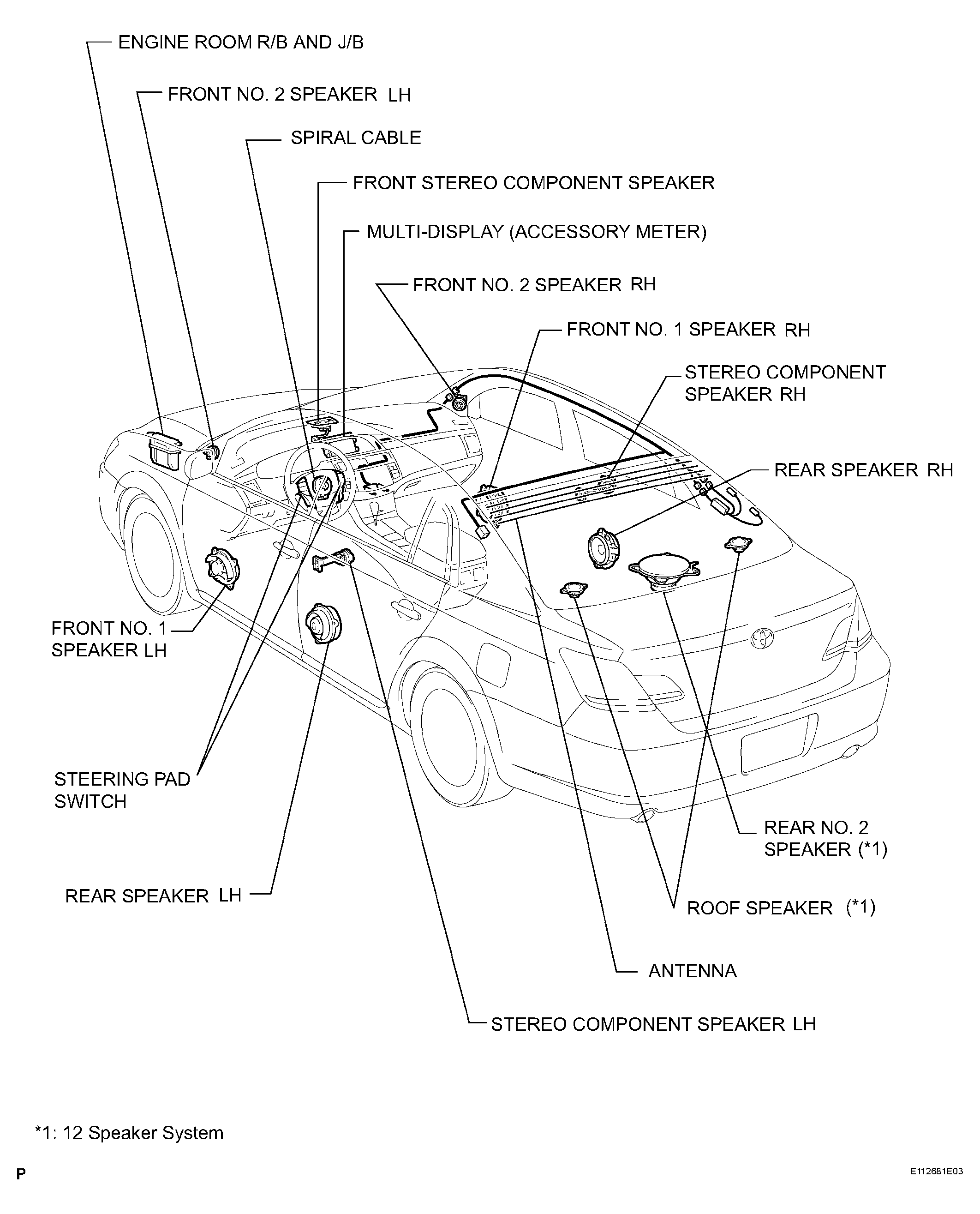

Fig 1: Identifying Audio And Visual System - Parts Location (1 Of 2)
G04379993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

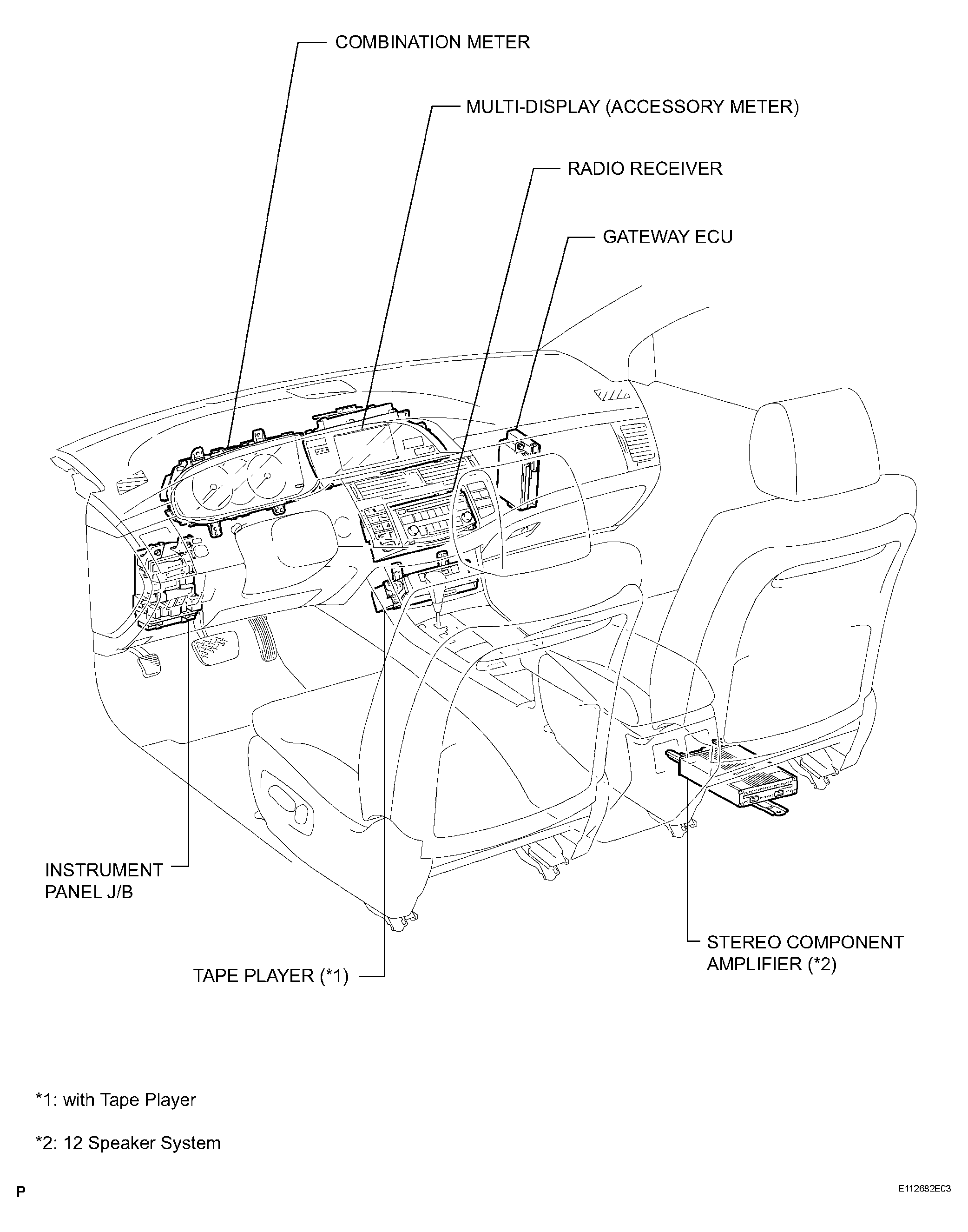

Fig 2: Identifying Audio And Visual System - Parts Location (2 Of 2)
G04379994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
