Crankshaft Position Sensor: Components

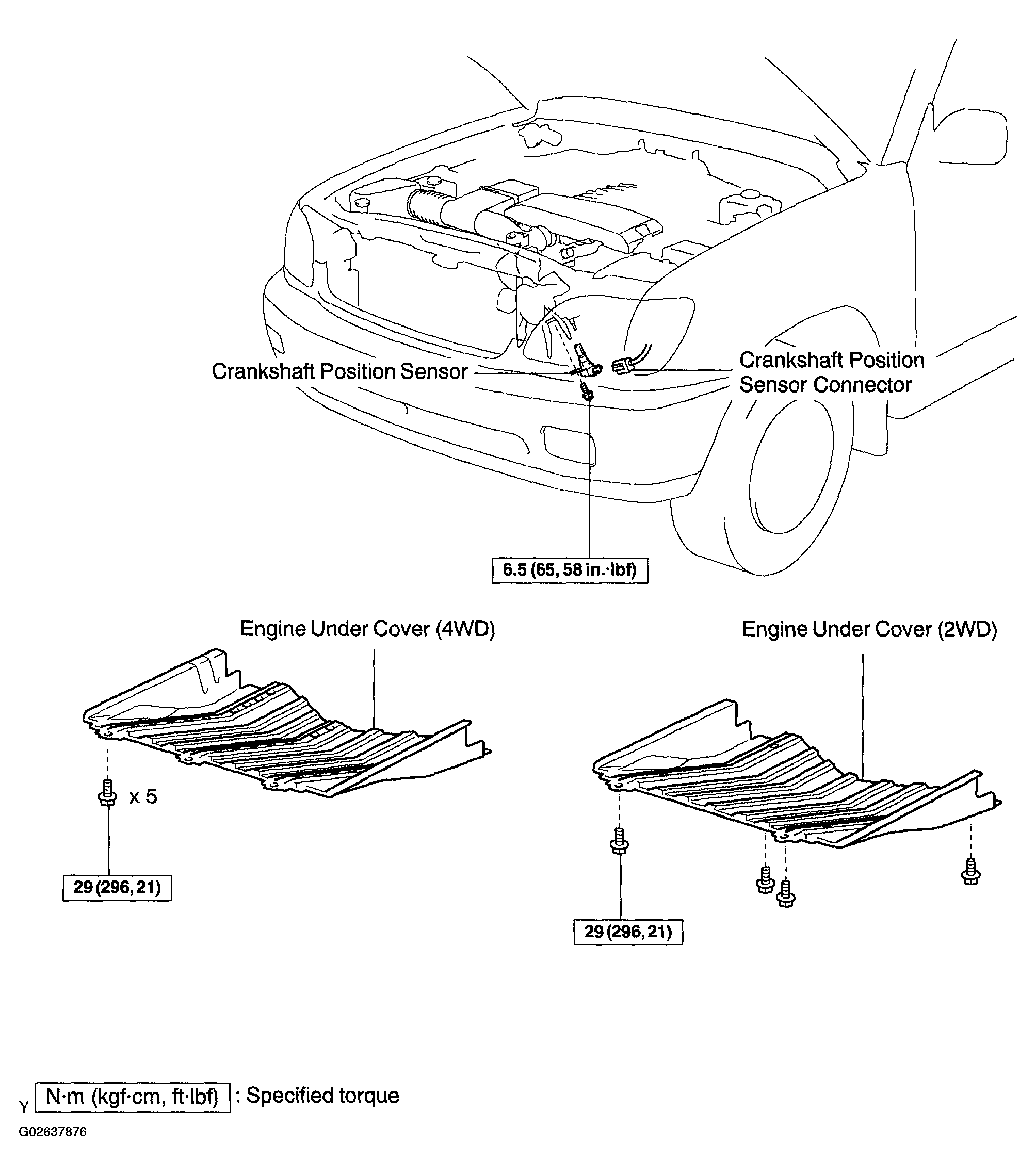

Fig 1: Exploded View Of Crankshaft Position Sensor With Torque Specifications

G02637876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
