Throttle Body: Components

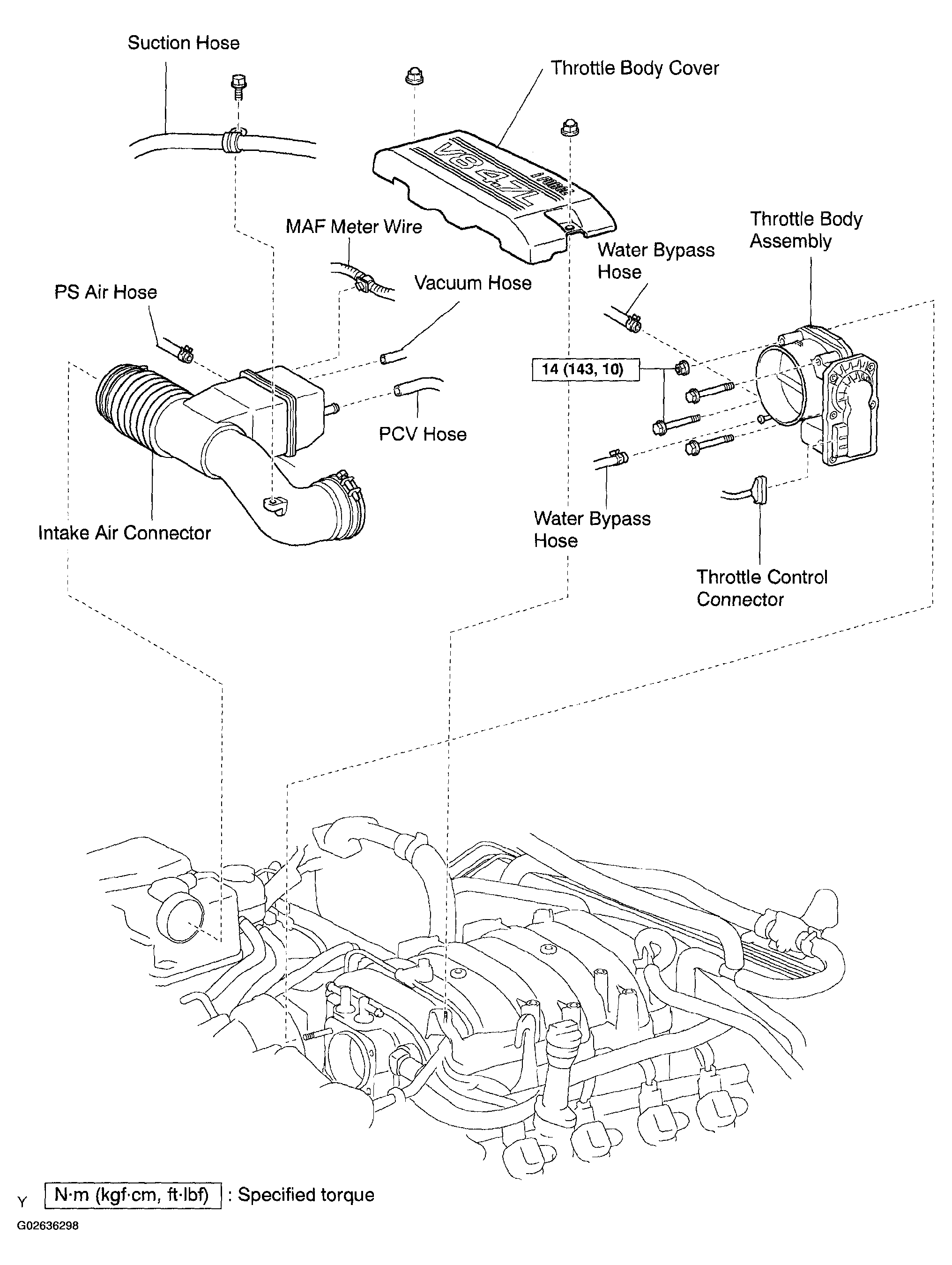

Fig 1: Identifying Throttle Body Cover Components

G02636298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
