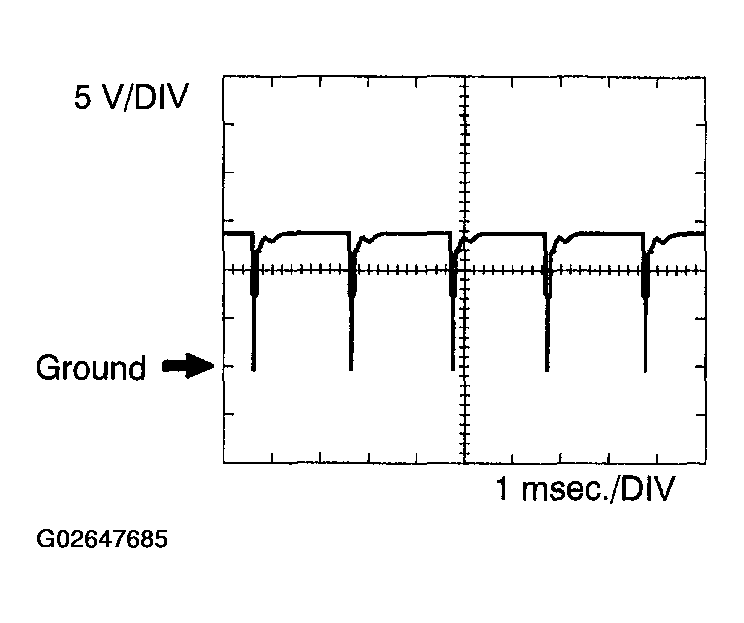

Waveform 6
Throttle actuator positive terminal
WAVEFORM 6 REFERENCE
| ECM Terminal Name |
Between M+ and ME01 |
| Tester Range |
5 V/DIV, 1 msec./DIV |
| Condition |
Idle after engine warmed-up |
HINT:
The duty ratio varies depending on the throttle opening operation.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
