Waveform 3
VVT OCV
WAVEFORM 3 REFERENCE
| ECM Terminal Name | Between OC1+ and OC1- Between OC2+ and OC2- |
| Tester Range | 0.2 V/DIV, 200 msec./DIV |
| Condition | Accelerate slowly after engine warmed-up |
HINT:

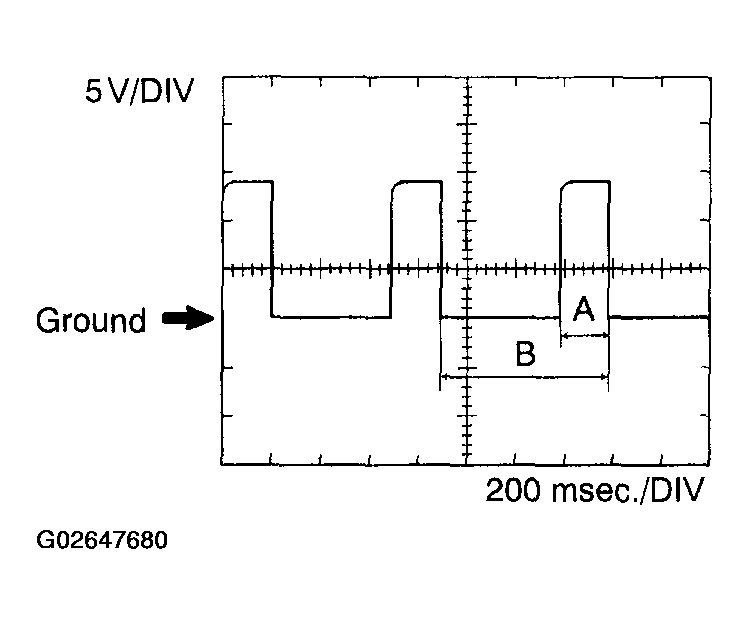

In the DATA LIST, the items VVT OCV DUTY B1 and B2 show the duty ratio of voltage flowing to the OCV (see illustration on left).
VVT OCV DUTY B1, B2 = A/B x 100 (%)
