Waveform 1

Fuel injector

WAVEFORM 1 REFERENCE

ECM Terminal Names Between #10 (to 60) and E01
Tester Ranges 20 V/DIV, 20 msec./DIV
Conditions Idling

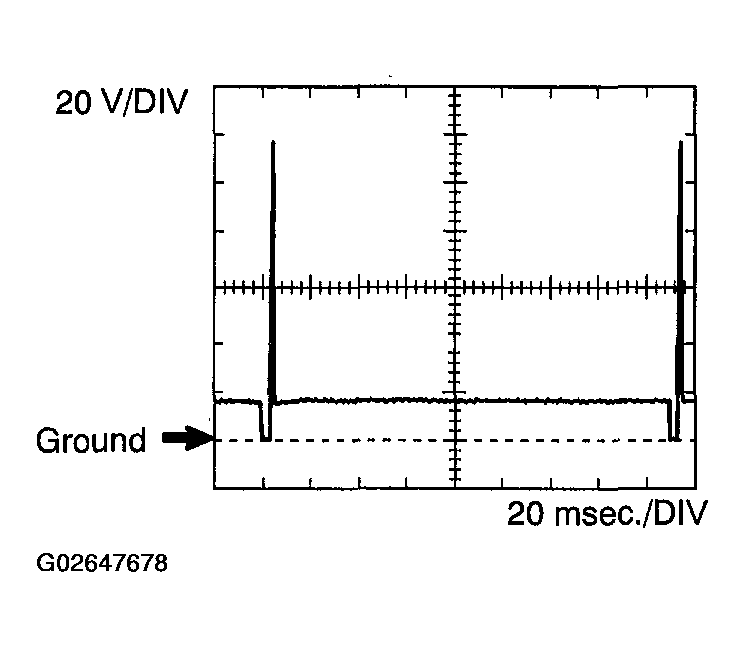

Fig 1: Identifying Waveform 1
G02647678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as the engine RPM increases.
