How To Proceed With Troubleshooting
How To Proceed With Troubleshooting
Troubleshoot in accordance with the procedure in the following example.

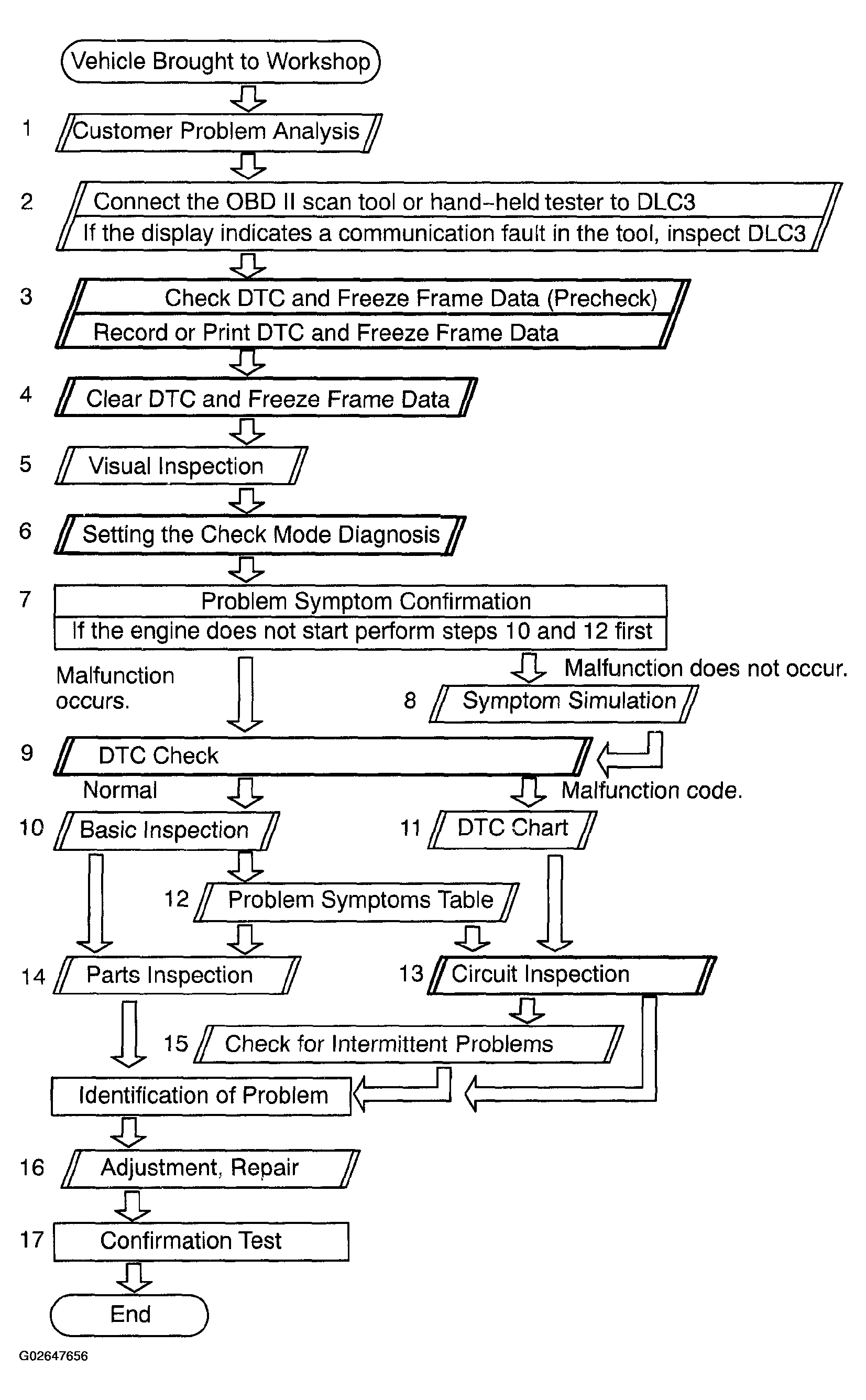

Fig 1: Troubleshooting Proceed Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
