Customer Problem Analysis Check

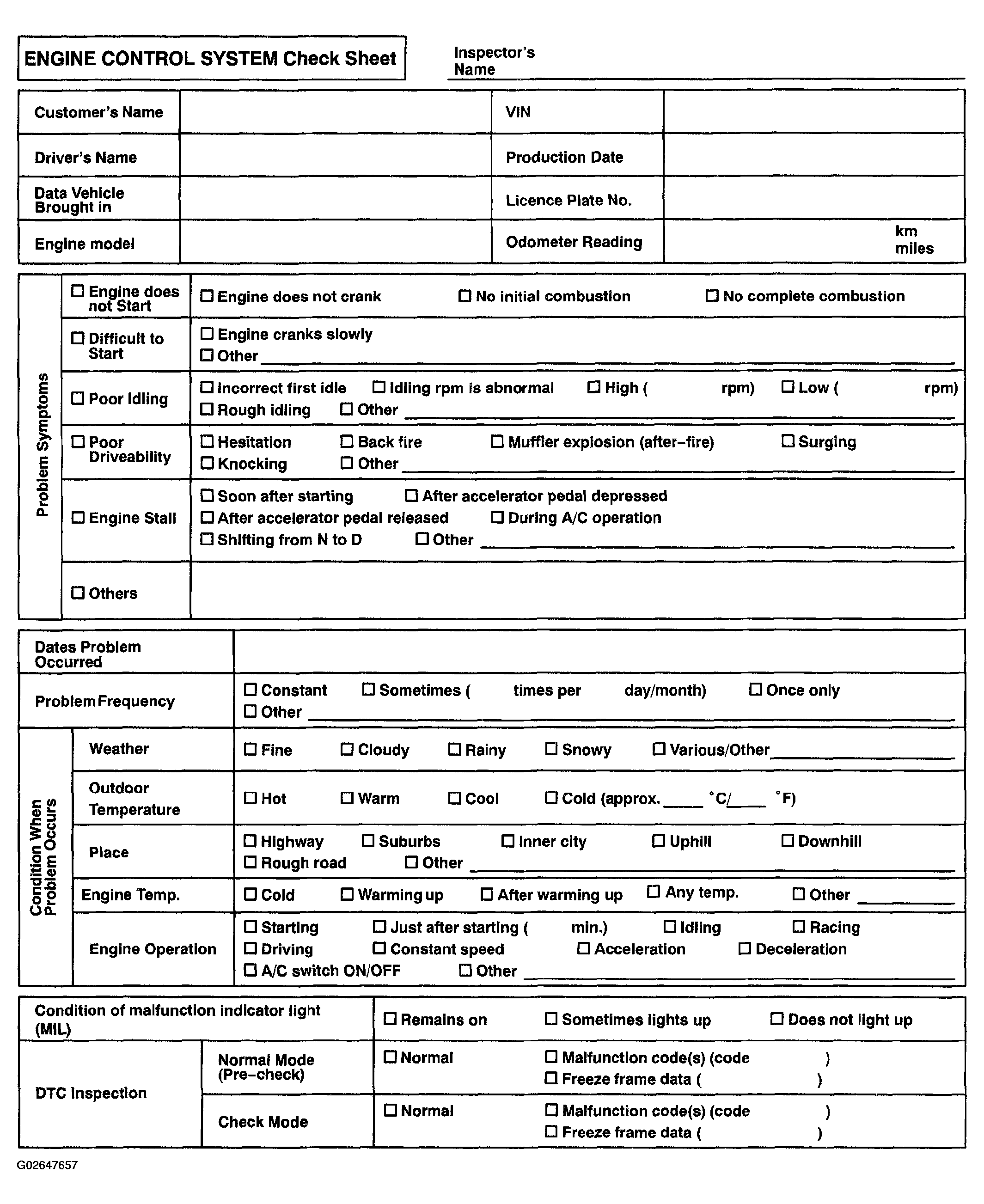

Fig 1: Engine Control System Check Sheet

G02647657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
