Ignition Coil: Installation

  1. INSTALL IGNITION COIL
    1. Install the ignition coil with the bolt.

      Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)

    2. Connect the ignition coil connector.
  2. INSTALL INTAKE AIR SURGE TANK (See  INSTALLATION  )
  3. INSTALL AIR CLEANER (See  INSTALLATION  )
  4. INSTALL V-BANK COVER

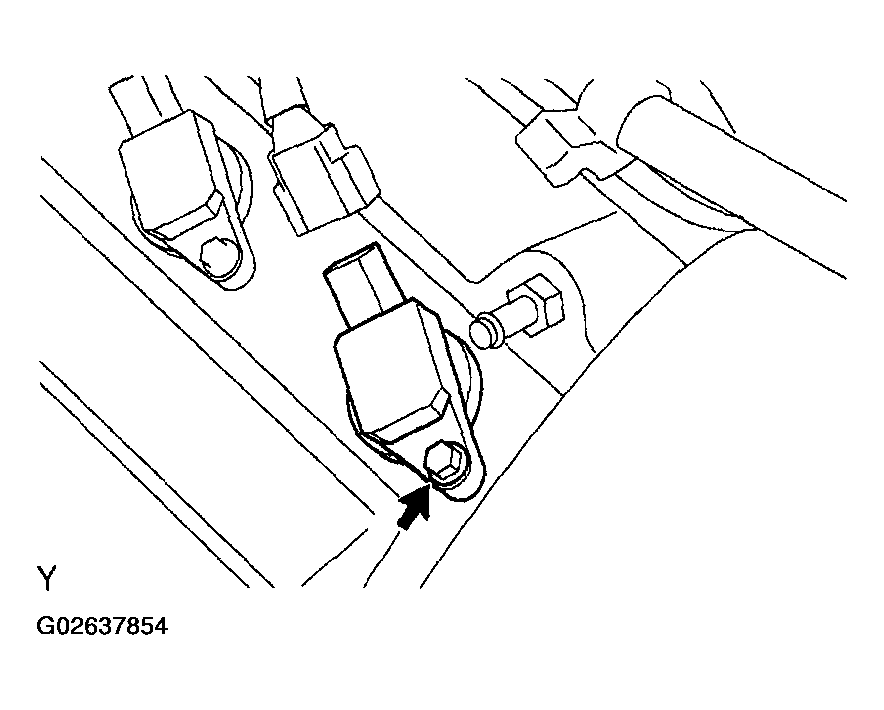

    Fig 1: Ignition Coil Bolt
    G02637854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
