Crankshaft Position Sensor: Removal

  1. REMOVE ENGINE UNDER COVER
  2. REMOVE GENERATOR (See  REMOVAL  )
  3. SEPARATE COOLER COMPRESSOR
    1. Remove the bolt and separate the suction hose sub-assy.
    2. Disconnect the cooler compressor assy connector.
    3. Remove the 4 bolts, and separate the cooler compressor from the V-ribbed belt tensioner.

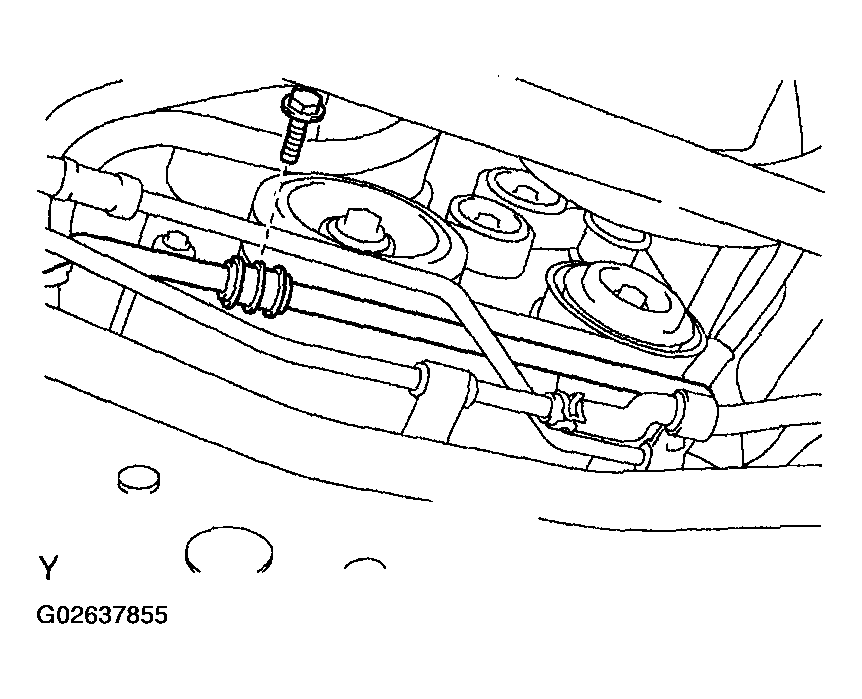

    Fig 1: Removing Bolt Of Separate Suction Hose Sub-assy
    G02637855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.

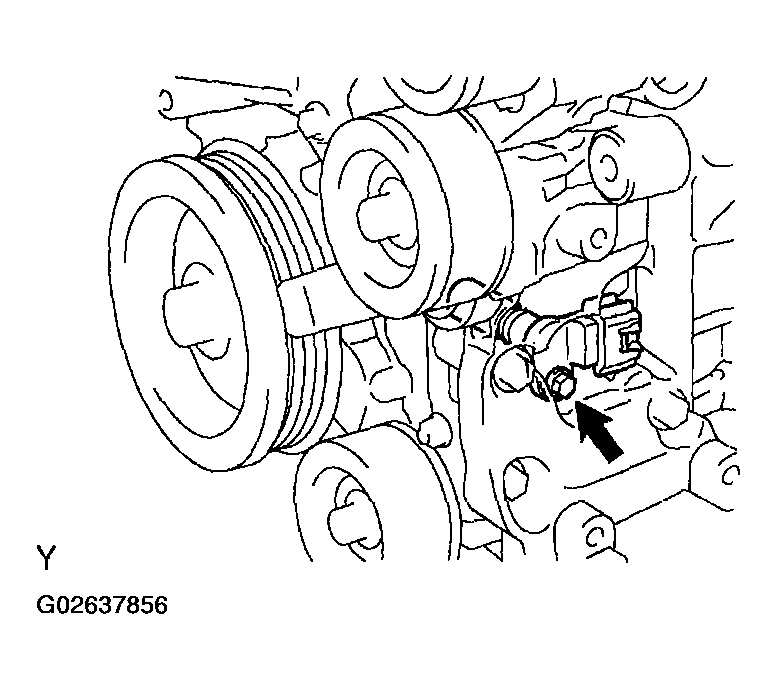

    Fig 2: Crankshaft Position Sensor Bolt
    G02637856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
