Throttle Body: Removal

  1. DRAIN ENGINE COOLANT
  2. REMOVE V-BANK COVER
  3. REMOVE AIR CLEANER (See  REMOVAL  )
  4. DISCONNECT WATER BY-PASS HOSE NO.5

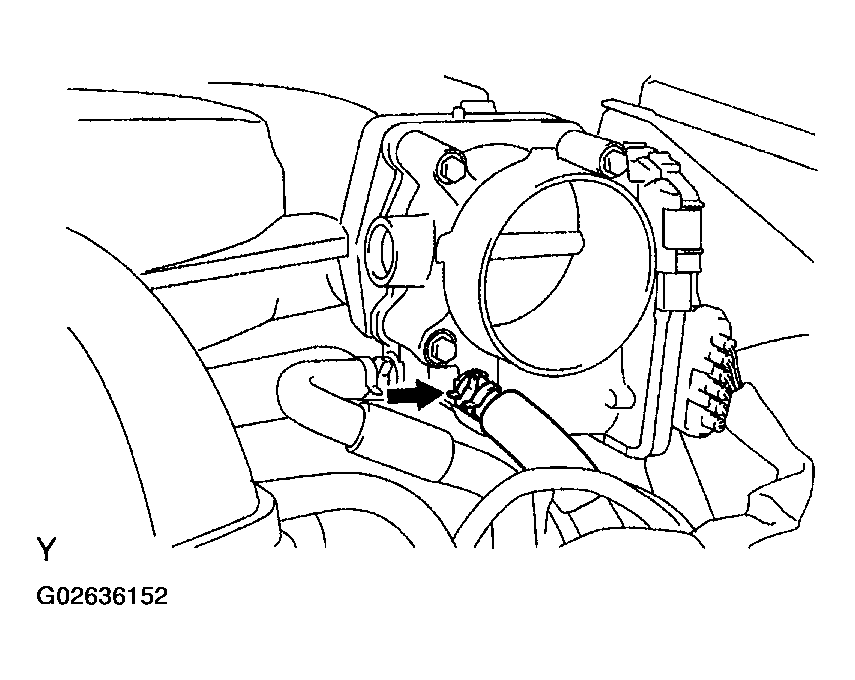

    Fig 1: Disconnecting Water By-Pass Hose No.5
    G02636152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT WATER BY-PASS HOSE NO.4

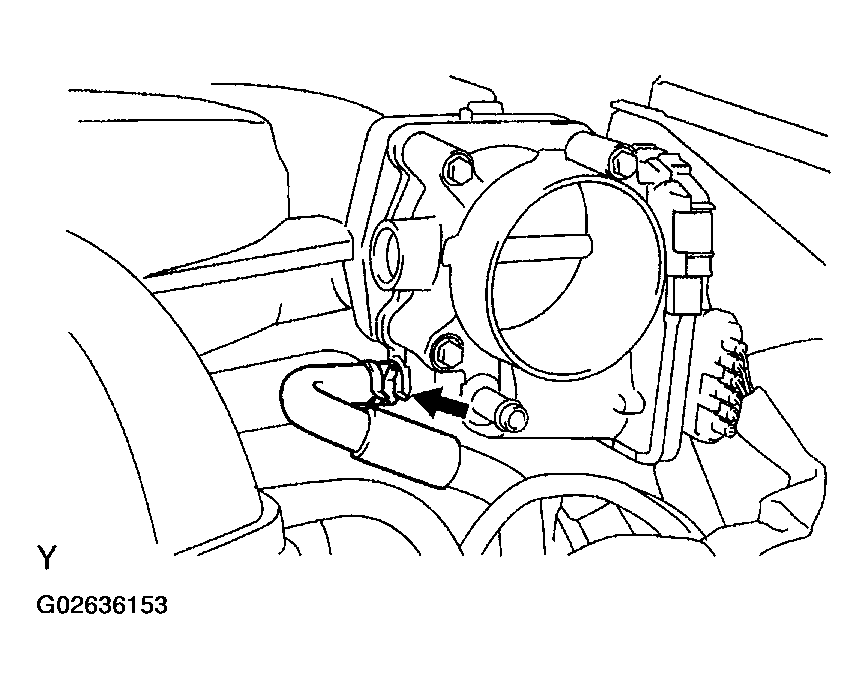

    Fig 2: Disconnecting Water By-Pass Hose No.4
    G02636153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE THROTTLE BODY
    1. Disconnect the throttle motor connector.
    2. Remove the 4 bolts, throttle body and gasket.

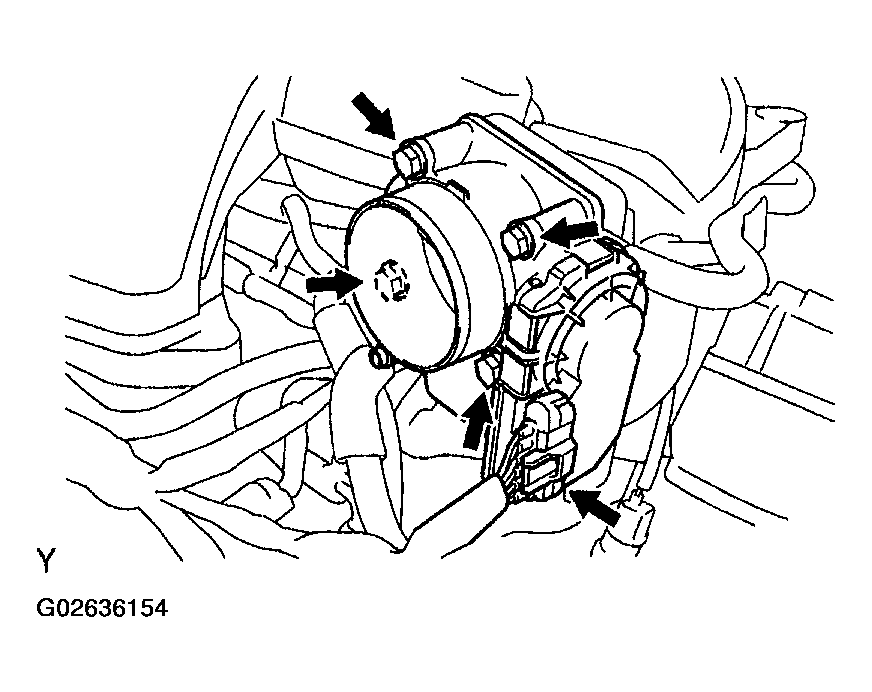

    Fig 3: Removing 4 Bolts, Throttle Body And Gasket
    G02636154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
