Throttle Body: Installation

INSTALL THROTTLE BODY
1. Install a new gasket and the throttle body w/ motor with the 4 bolts.
  Torque: 11 N.m (112 kgf.cm, 9 ft.lbf)
2. Connect the throttle motor connector.

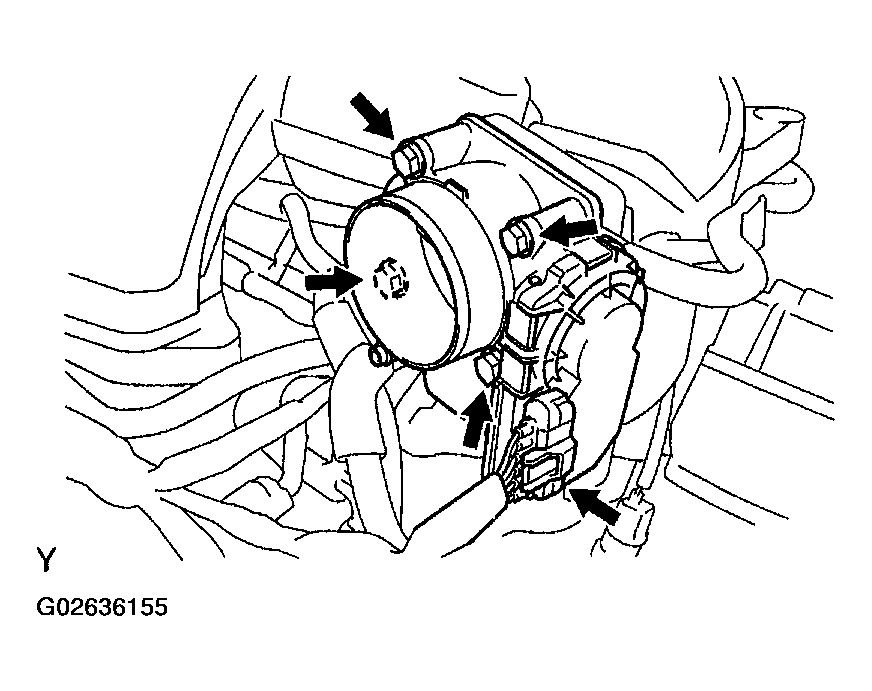

Fig 1: Installing New Gasket And Throttle Body W/ Motor With 4 Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT WATER BY-PASS HOSE NO.4

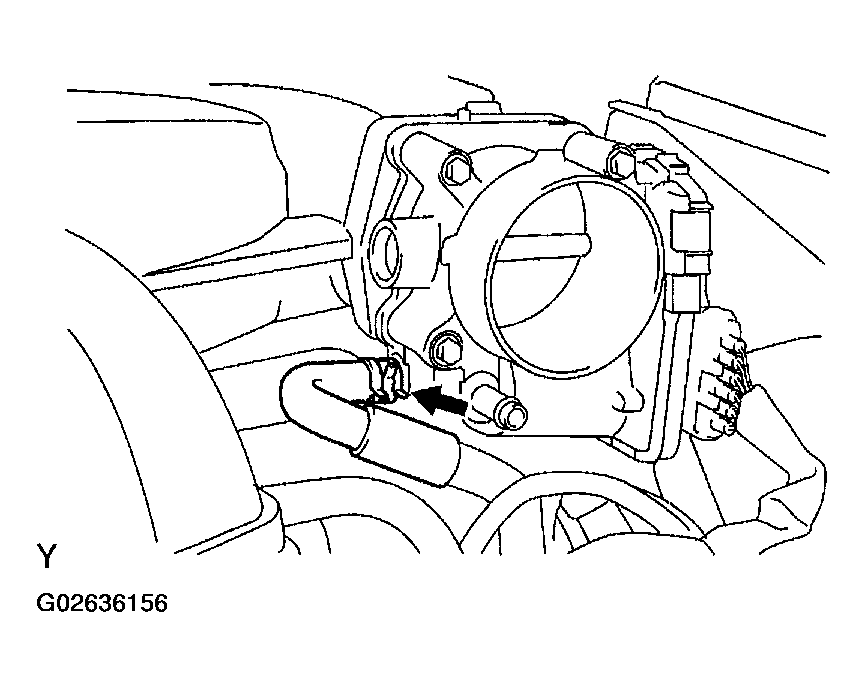

Fig 2: Connecting Water By-Pass Hose No.4
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT WATER BY-PASS HOSE NO.5
INSTALL AIR CLEANER (See INSTALLATION )
INSTALL V-BANK COVER
ADD ENGINE COOLANT
CHECK FOR ENGINE COOLANT LEAKS

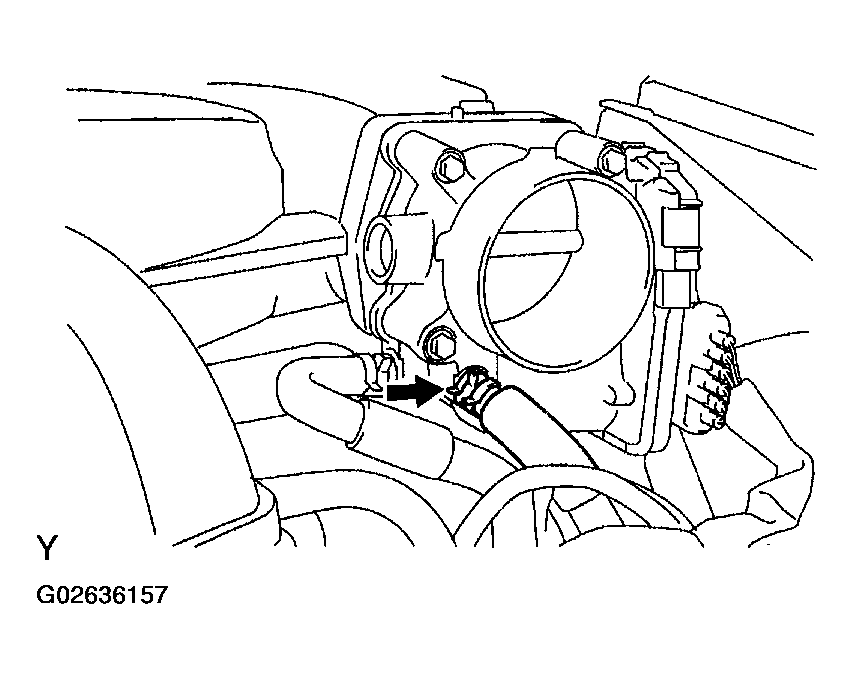

Fig 3: Connecting Water By-Pass Hose No.5
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
