Throttle Body: Components

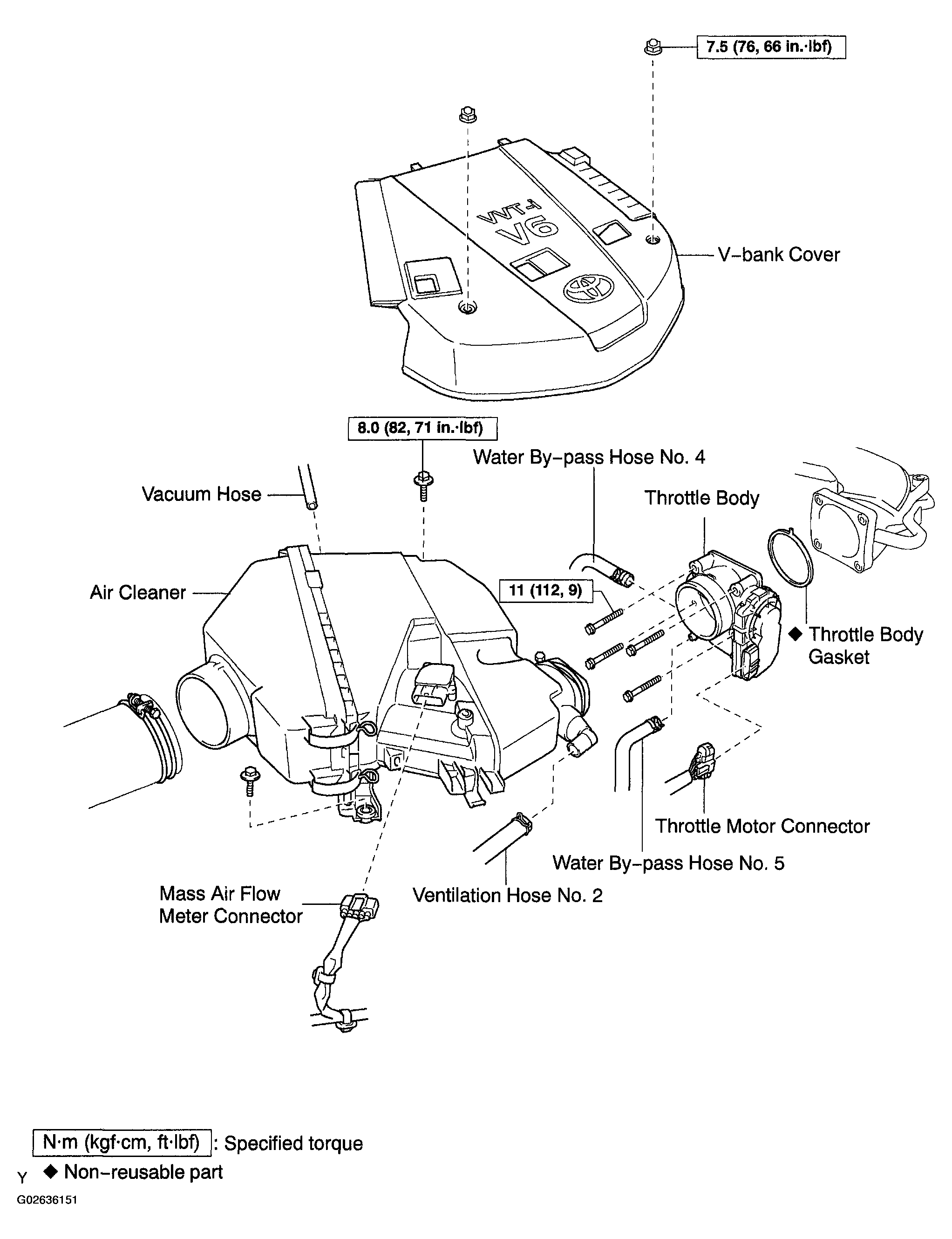

Fig 1: Intake Assembly Replacement Components With Torque Specifications

G02636151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
