Fuel Pressure Regulator: Removal

  1. PREVENT GASOLINE FROM SPILLING OUT (See  SFI SYSTEM   )
  2. REMOVE V-BANK COVER
  3. REMOVE AIR CLEANER (See  REMOVAL  )
  4. DISCONNECT FUEL PIPE NO.2
  5. REMOVE FUEL PRESSURE REGULATOR
    1. Remove the 2 bolts and fuel pressure regulator.
    2. Remove the vacuum hose.

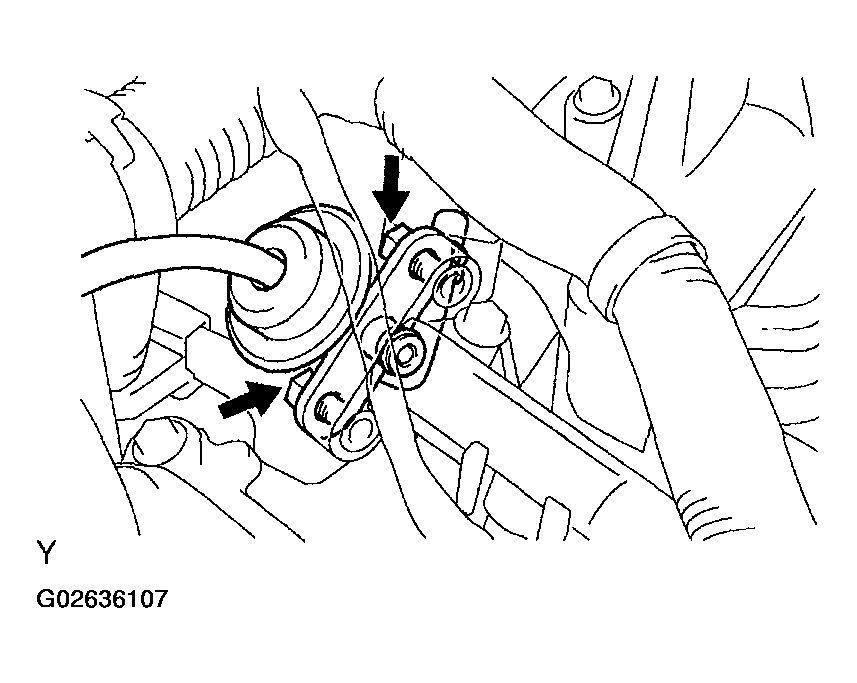

    Fig 1: Removing 2 Bolts And Fuel Pressure Regulator
    G02636107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
